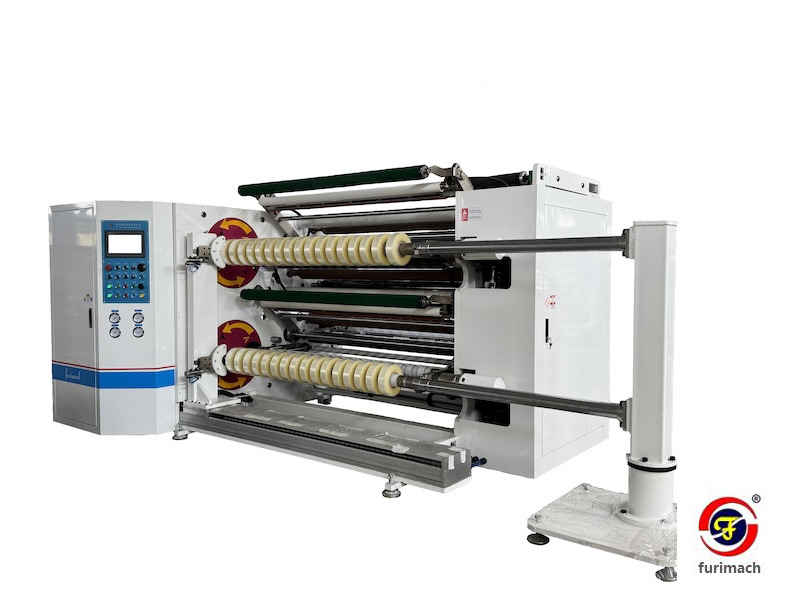

SLF-46361
Furimach
84778000
Key Feature
1. Hydraulic auto-uplifter for jumbo roll loading, which can save time and labor input.
2. Automatic Tension Control: The machine ensures consistent unwind & rewind tension throughout the slitting process, ensuring stable tension control.
3. Automatic Labeling: The machine features automatic labeling system, some tapes no need to tabbing label, can also choose not to use.
4. Auto Cut-Off and Smoothing: Once the set length is reached, the machine automatically cuts the finished tape rolls and smooths the tape ends, ensuring the roll end if very neat.
5. Auto Core Placement: The operator should manually load the paper cores on the rewind shafts, then machine will automatically place the cores into the correct position, so when inside 2 shafts are slitting and rewinding, the outside2 shafts are arranging the paper core at the same time, which improve the efficiency.
6.Razor blade and shear blade dual system to ensure it can cut various adhesive tapes, both size setting by spacers, which are convinient to change.
7. Remote support: Technicians can diagnose and fix issues remotely to minimize downtime in case there is any issue.
Optional Items
1. Finished roll unloader system
2. Semi-automatic/Fully-automatic shear blade setting system
Main Technical Parameters
Machine width | 1.3M, 1.6M |
HMI | 10” |
Max. unwind diameter | 800mm |
Min. slitting width | 40mm |
Max. rewind diameter | 450mm |
Max. working speed | 200m/min |
Slitting blade (razor blade) | FOR BOPP TAPE SLITTING |
Slitting blade (shear blade) | FOR KRAFT PAPER TAPE DOUBLE-SIDED TAPE |
Main drive | Siemens servo motor |
Exchange drive | Siemens servo motor |
PLC | Siemens |

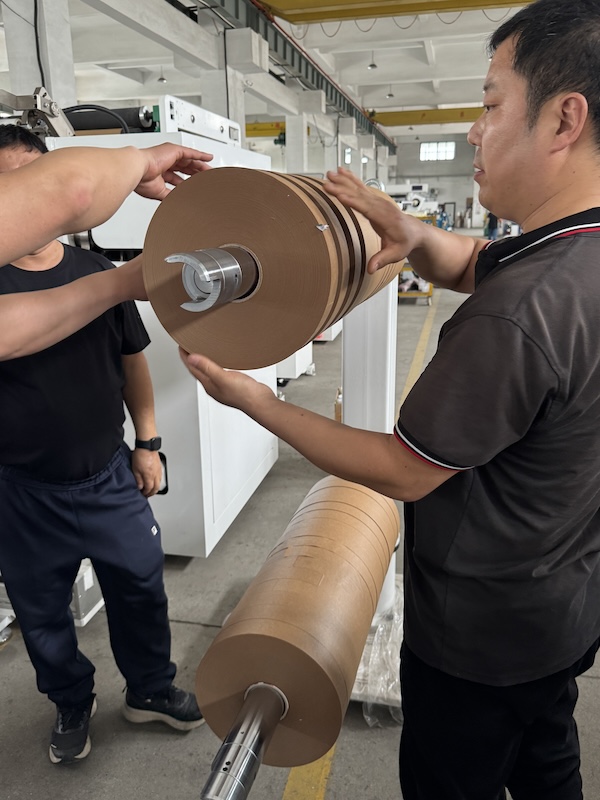

Machine Working Video-Kraft Paper Tape Slitting

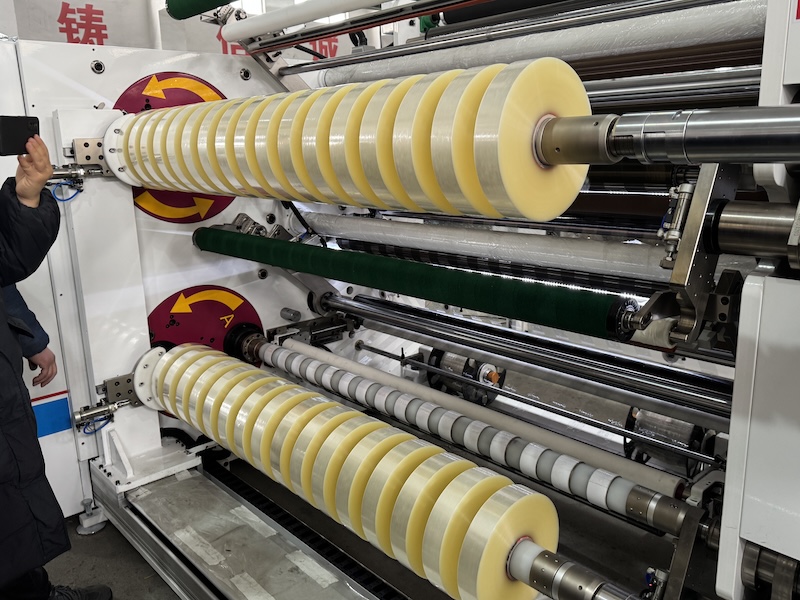

Machine Working Video-BOPP Tape Slitting
