FR-202S
Furimach
84778000

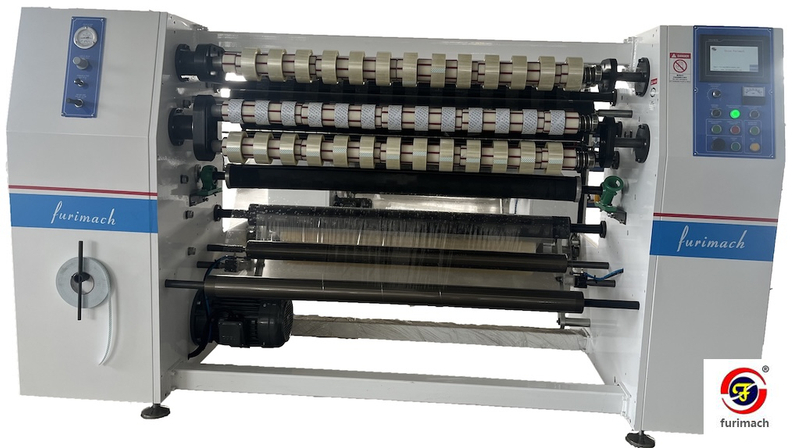

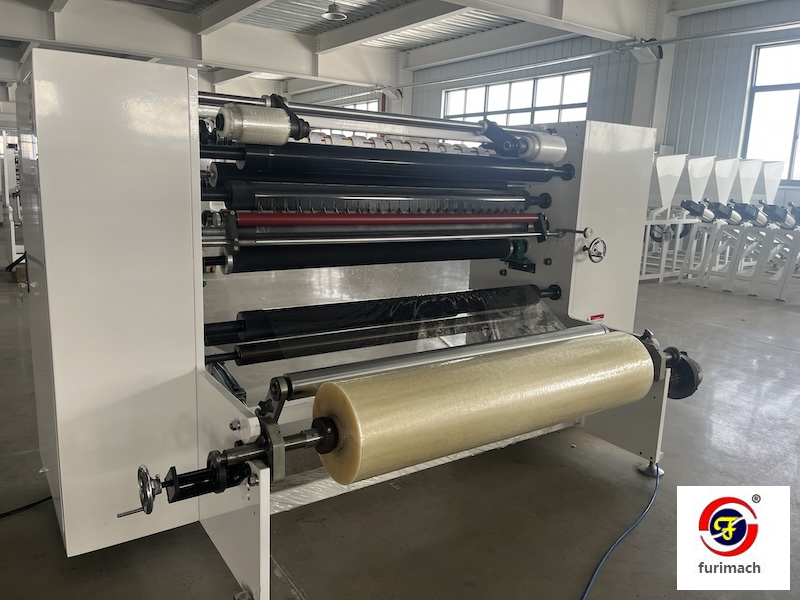

Main Feature of FR-202S BOPP Tape Slititng Machine
1. Full-automatic four-shaft exchange is adopted and the efficiency is improved. |
2. Japan Mitsubishi PLC control with HMI operation, ensures precise control and user-friendly operation. |
3. The unwinding tension is adopted with pneumatic braking control. |
4. The banana roller is used to eliminate tape wrinkling during tape expanding and tape web feeding. |
5. Edge trimming control using spool trim winder system. |
Main Technical Parameters
Model | FR-202S-1300 | FR-202S-1600 |
Effective width | 1280 mm | 1580 mm |
Max. unwind diameter | 600mm | 600mm |
Min. slitting width | 12mm | 12mm |
Max. rewind diameter(shaft3") exchange 4 shafts | 150mm | 150mm |
Machine speed | 0-180m/min | 0-180m/min |
Slitting blade | 0.2×22×60mm | 0.2×22×60mm |
Main power | 4KW | 4KW |
FR-202S BOPP Tape Slitting Machine Working Video:
FAQ:
1. How many operators are required to run this machine?

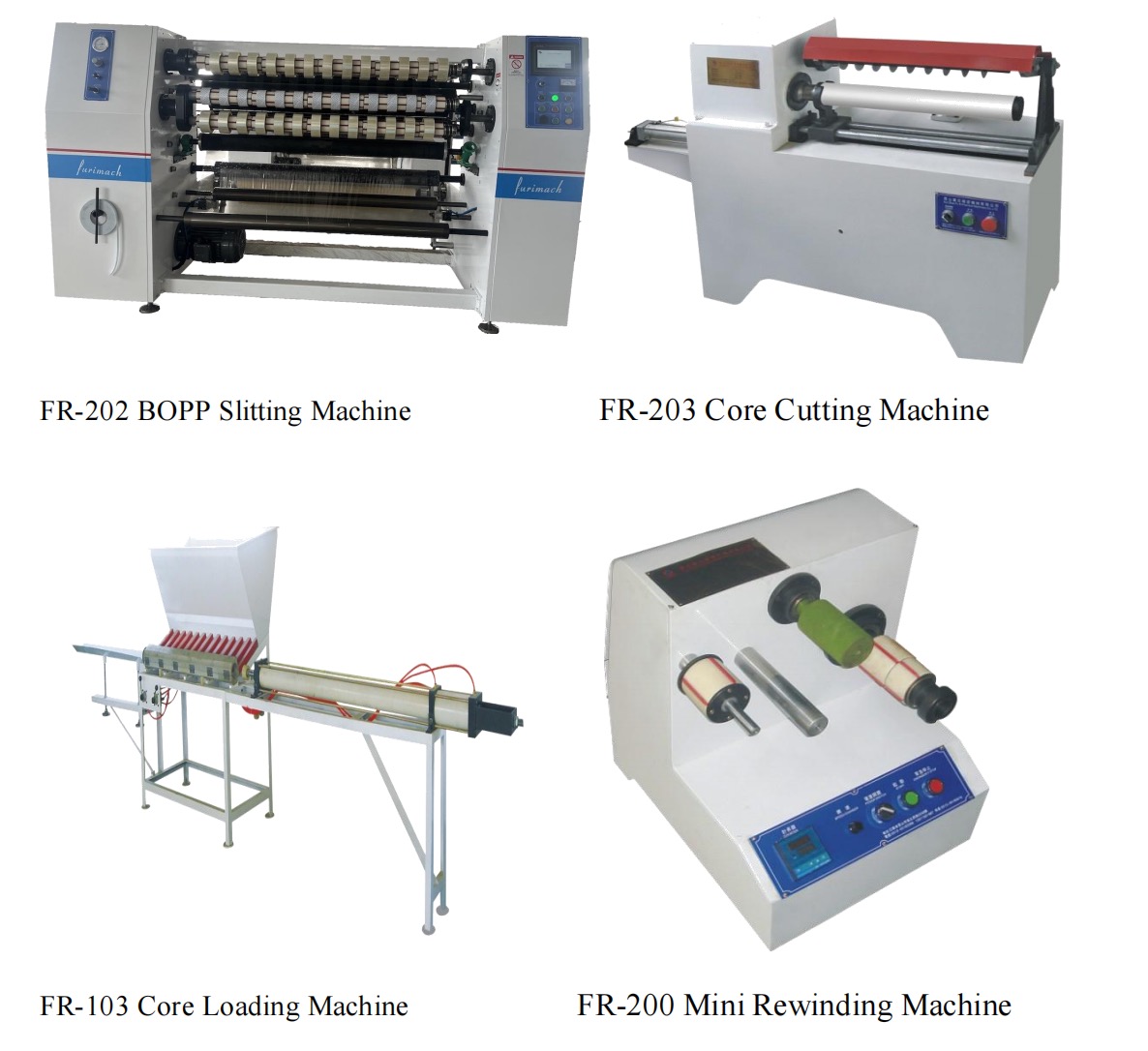

The complete FR-202S BOPP tape slitting machine set includes four machines: FR-203 paper core cutting machine, FR-103 paper core loading machine, FR-202S slitting machine, and FR-200 mini rewinding machine, along with one set of aluminum molds for size setting. The entire set requires two operators for efficient operation.

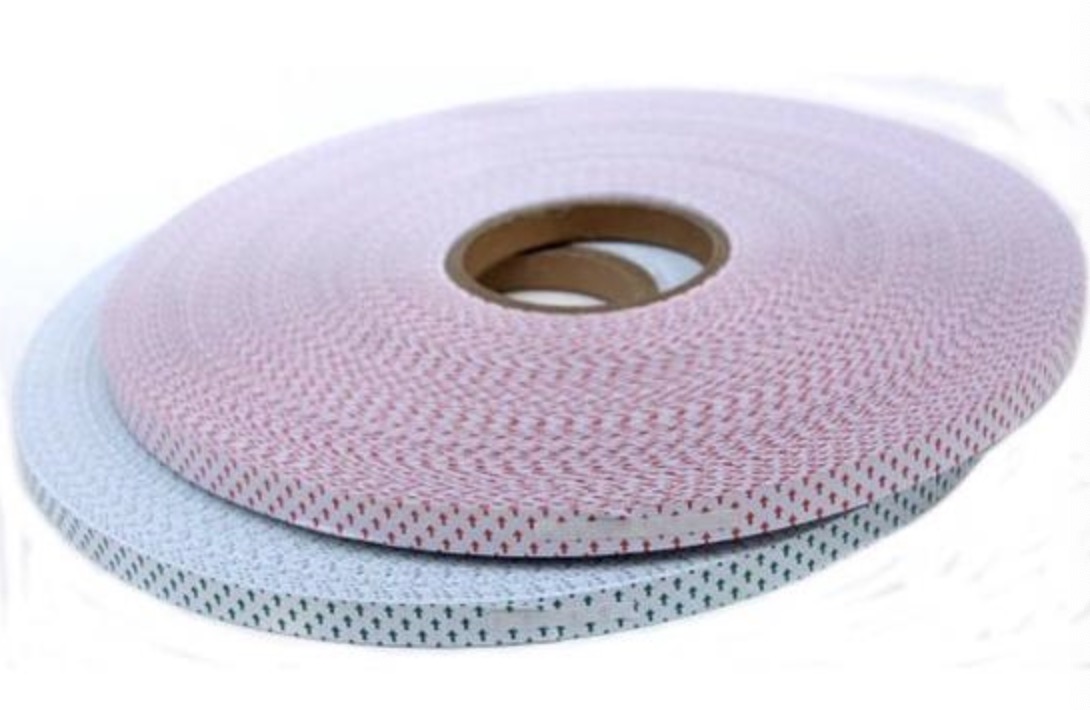

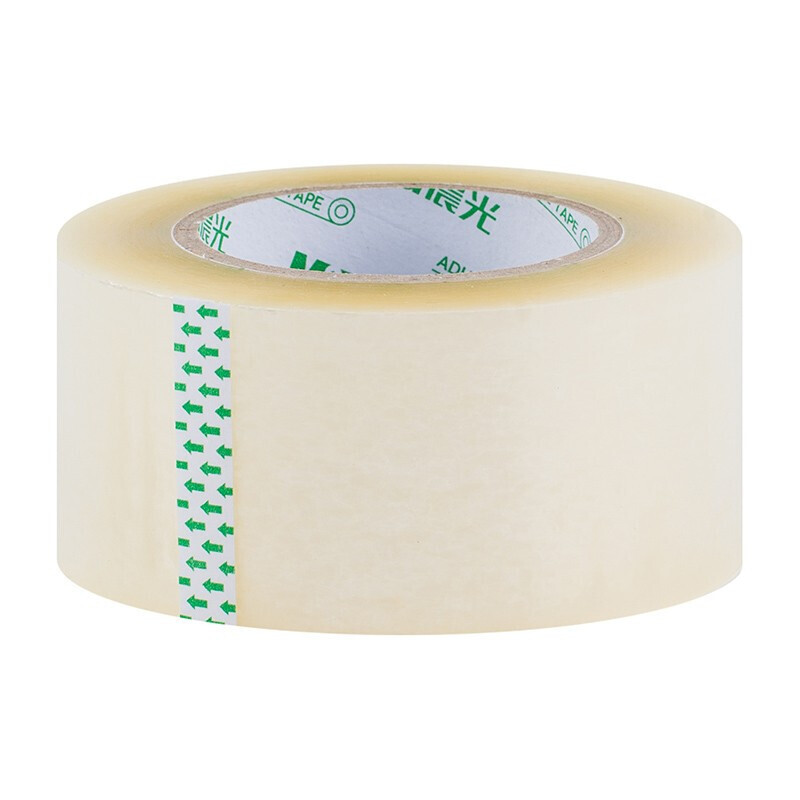

2. Does this machine have an automatic arrow paper labeling function?
No, this machine does not have an automatic labeling function. The operator must manually apply the labeling paper to the tape. If you need automatic labeling, we recommend selecting the FR-210N model.
3. What else do I need to start a BOPP tape business?
In addition to the machine, you will need the following:
• Paper cores (or a paper core production setup)
• Air compressor
• BOPP tape jumbo rolls
• Forklift (for material handling)
