Feature
1. Full-automatic four-shaft exchange is adopted and the efficiency is improved. |
2. Japan Mitsubishi PLC control system with 7” touch panel operation. |
3. Automatic shaft exchange: once the rewinding operation is finished, the machine will automatically perform shaft exchanges for convenient and efficient operations. |
4. Core loading machine and one set of size setting alu. mould available with the slitting machine |

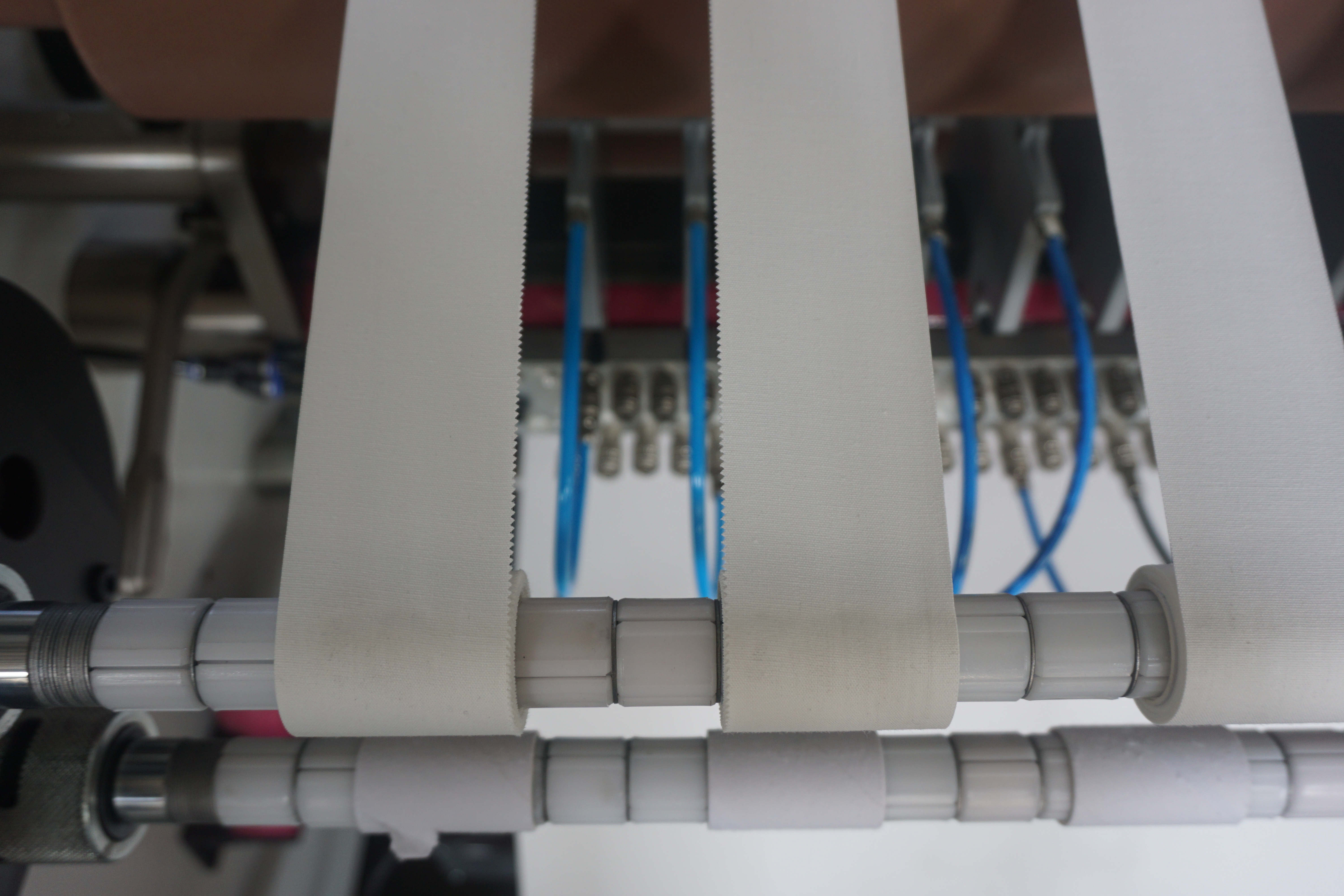

5. Slitting tool: regular air blades and zigzag type air blades also available. The knife positions can be adjusted in left/right directions and the pressure of the air blades can be adjusted to suit tape material variation. |
6. Spool trim winding system is used for edge trimming collecting. |
7. Rewind shaft: customer can choose 1” air shafts or traditional nylon sleeve type rewind shafts |
Main Technical Parameters
Effective width | 1000mm/1100mm |
Max. unwind diameter | 800 mm |
Slitting width | Min. 12.5mm |
Rewind diameter | 80 mm (1" core) |
I.D. of paper core | 1” |
Machine speed | 0-180 M/min |
Main drive motor | 4KW |
Slititng blade | Razor blade/air blade/zigzag air blade (optional) |

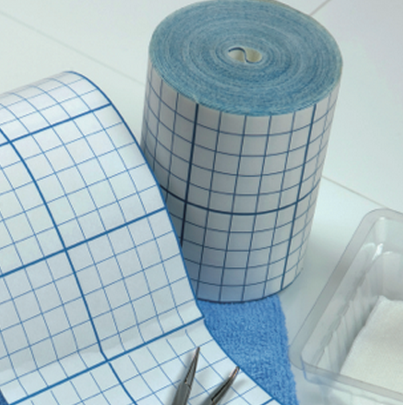

Medical tape half cutting funciton | Optional for medical tape with paper liner |
Accessories | Core loading machine, aluminum mould for size setting |

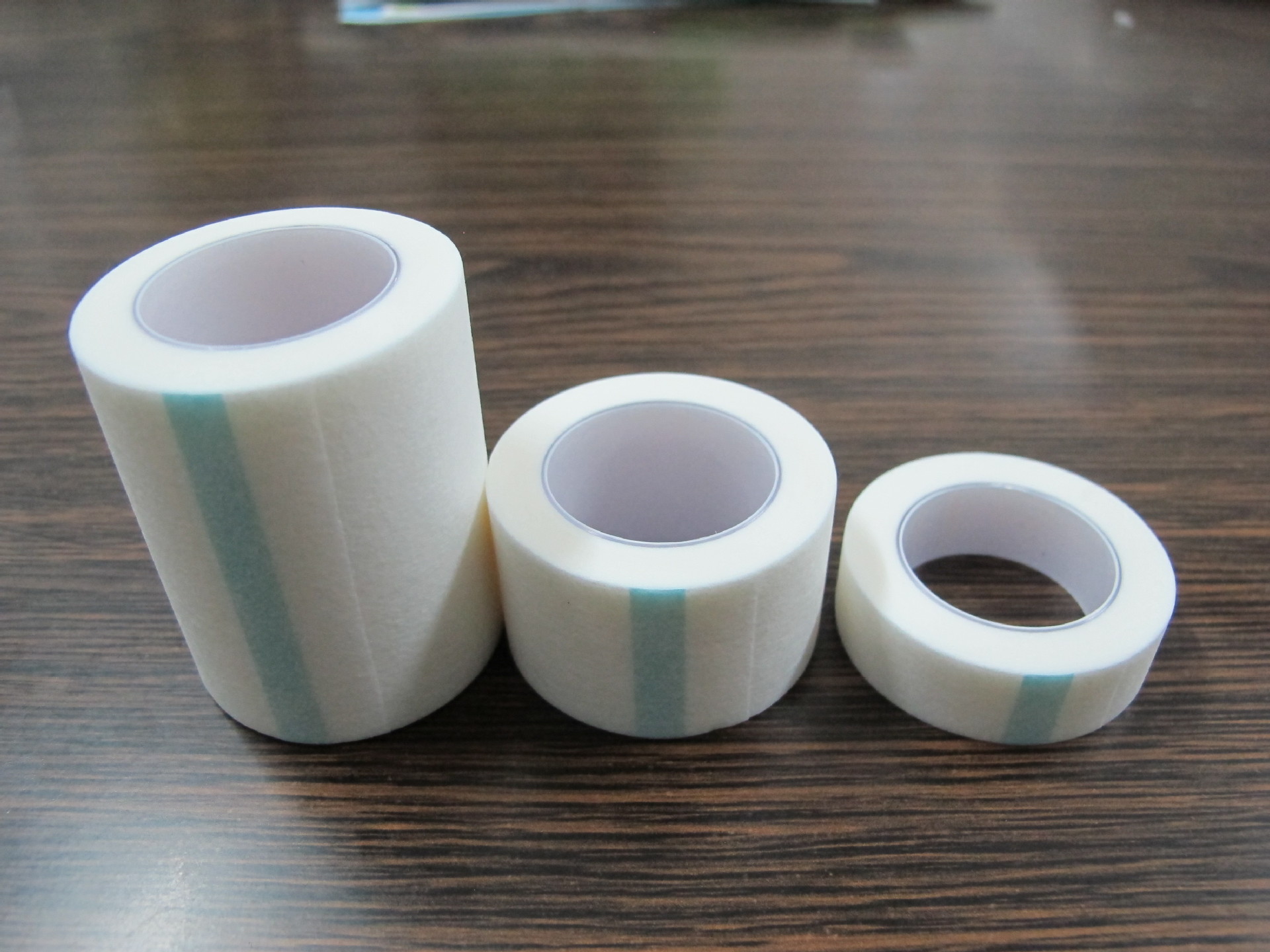

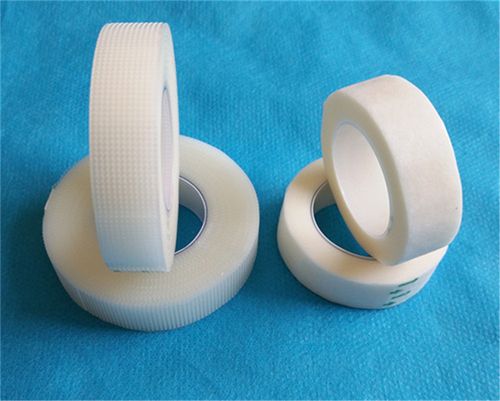

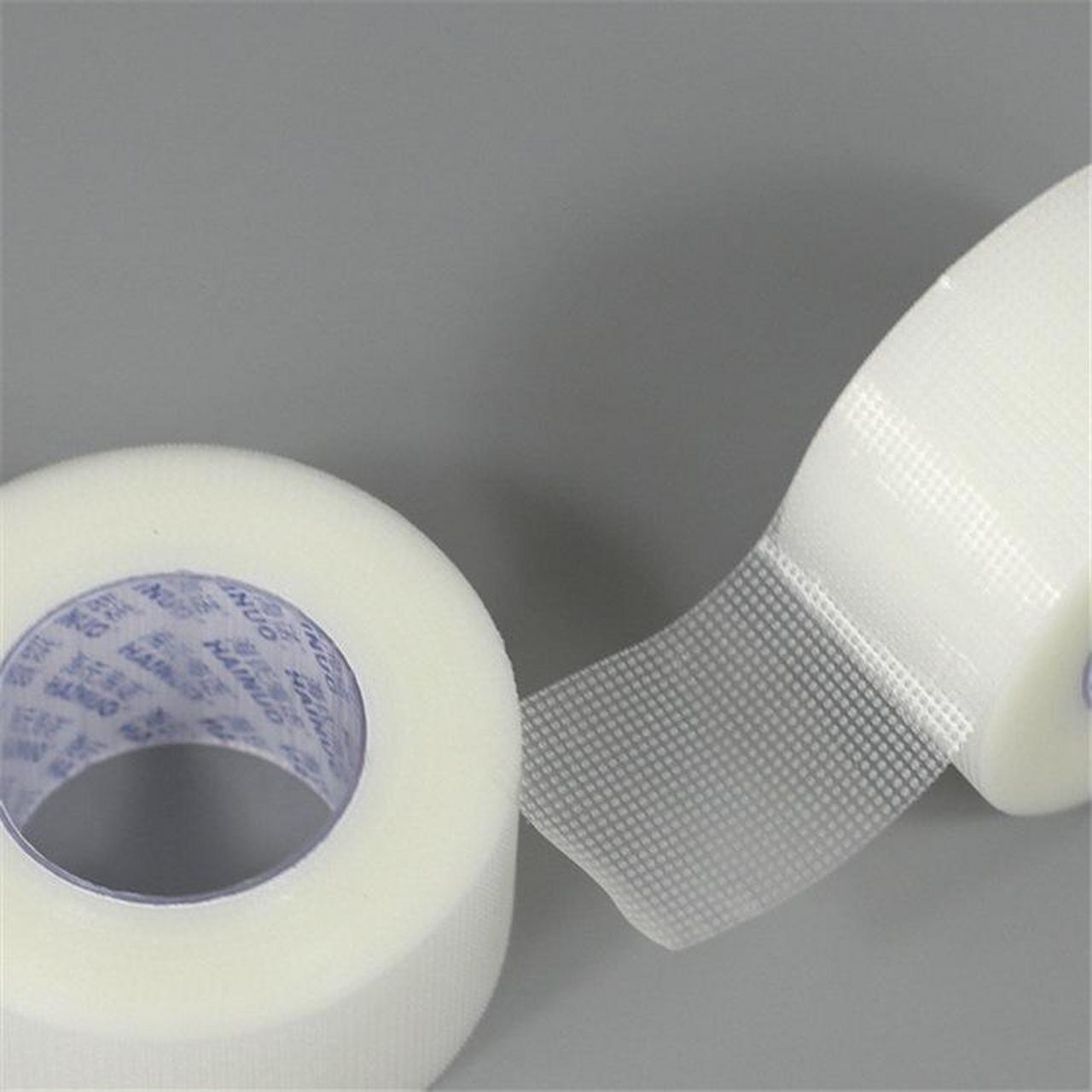

Medical Tape Slitting Machine Working Video (1" air shaft winding, zigzag air blade slitting)

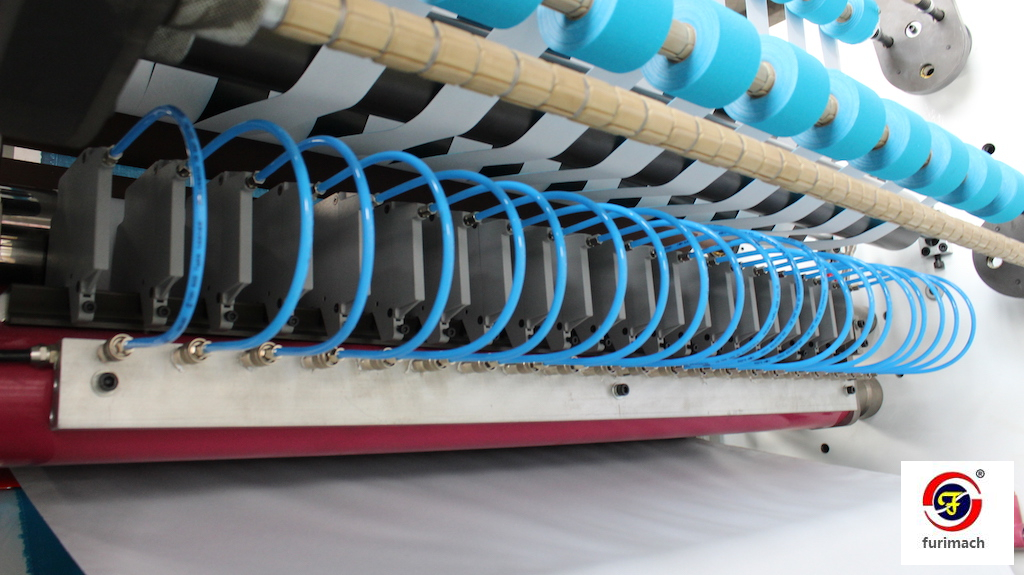

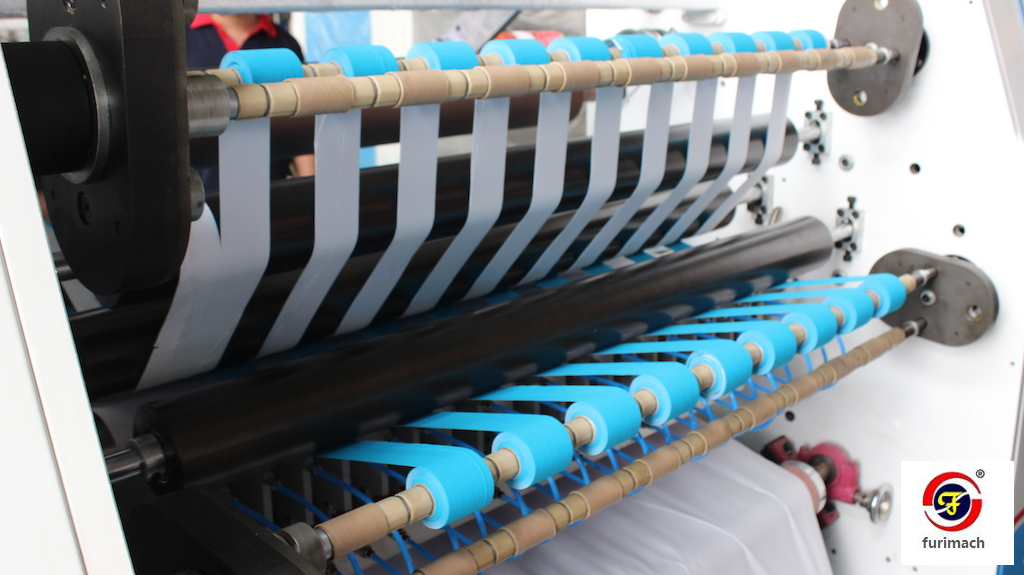

Sports Tape Slitting Machine Working Video
