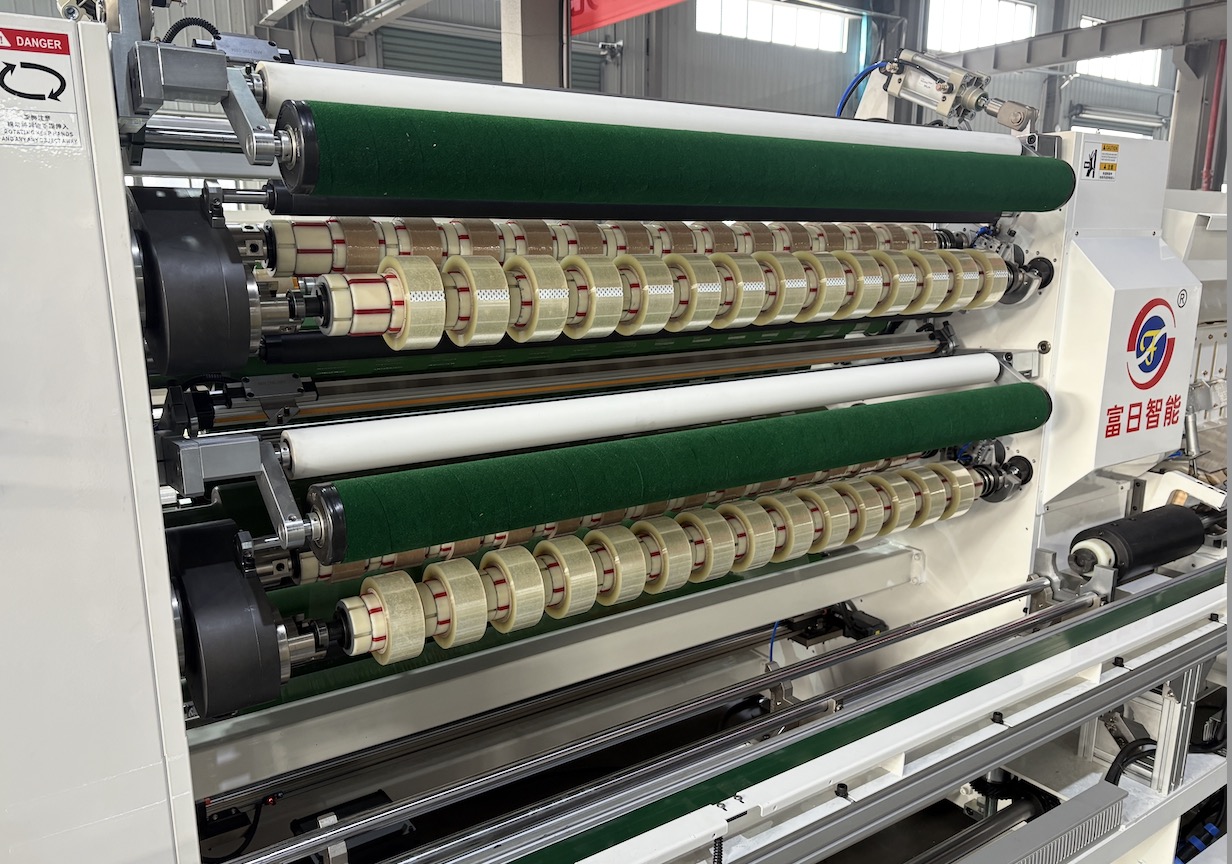

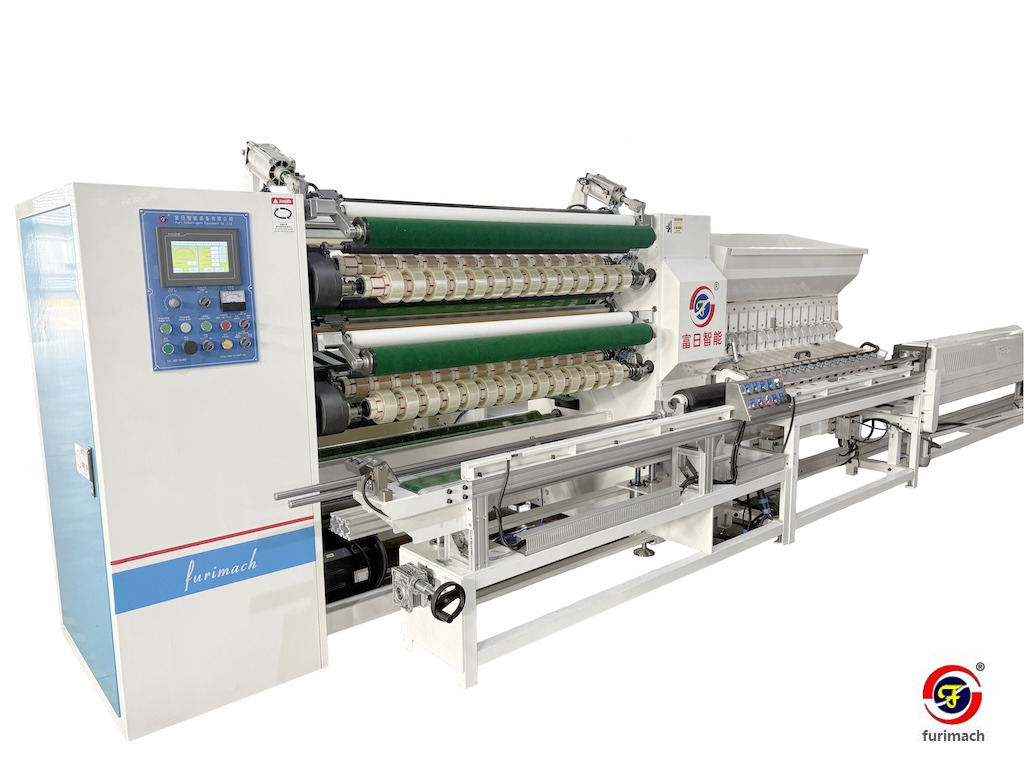

FR-210TN
FURIMACH
84778000
Main Technical Feature
| 1. Separate unwind unit for easy web threading. |
| 2. Siemens PLC control system with 7” touch panel operation for user-friendly operation. |
| 3. 15KG powder brake unwind tension control to ensure consistent tension for smooth material handling. |
| 4. The banana roller is used to eliminate tape wrinkles during jumbo roll feeding and spreading. |
| 5. Servo-controlled tabbing unit applies arrow-label tabs without stopping the machine. |
| 6.Spool trim winder is used for edge trimming collect and if tape gets broken during running, machine will auto stop. |
| 7.Finished tape reels auto cut-off function. |
| 8. Core loading and finished tape unloading unit by servo motor control. |
Main Technical Parameters
| Model | FR-210TN |
| Effective width | 1.3M, 1.6M |
| Max. unwind diameter | 800mm |
| Min. slitting width | 24mm |
| Max. rewind diameter(shaft3") exchange 4 shafts | 150mm |
| Machine speed | 0-260m/min |
| Slitting blade (standard razor blade) | 0.2×22×60mm |
| Hydrauli uplifter for jumbo roll loading | Optional |
| Noise hood | Optional |
FAQ
1. What is the machine warranty?
Furimach provides one year warranty period for the machine and its core components.
2. What accessories should I buy?
To run a complete production line, we recommend a paper core cutting machine and a doctor rewinding machine.
3. How about FAT?
Yes. Furimach provides a comprehensive FAT package, including detailed testing reports and video documentation for your review. We also supply tutorial videos for operator training.
We welcome customers to send a technician to our factory for an on-site trial, acceptance, and hands-on learning.
4. How to start a tape manufacturing business?
The essential requirements are:
Raw Materials: Source or produce BOPP tape jumbo rolls.
Paer Cores: Source or produce paper tubes (cores).
Slitting Machine: Invest in the tape slitting machine set.
Supporting Equipment: air compressor/material handle trucks.
Packing Machine: finished bopp tape packing machine and shrink films required.
5. How to choose the most suitable bopp tape slitting machine?
Furimach provides tailored recommendations based on your production scale:
For Startups: FR-210N model offers an excellent balance of affordability and essential functionality.
For Capacity Expansion: If you need to increase production without full automation, the user-friendly, semi-automatic FR-210TN model provides a convenient and efficient upgrade.
For High-Volume Production: If you have existing lines and large orders, fully automatic BPA-1511 model maximizes output and efficiency.
