| Quantity: | |
|---|---|

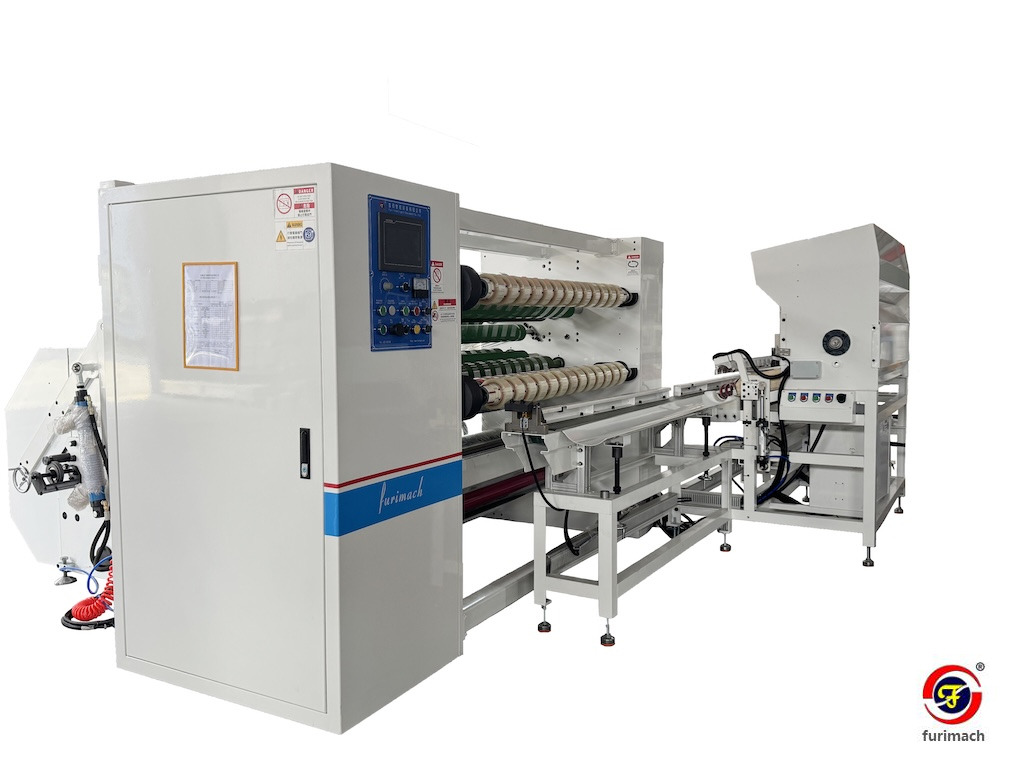

FR-210TS
Furimach
84778000
Main Technical Feature
| 1. Fully automatic four-shaft exchange to improves operational efficiency. |
| 2. Mitsubishi PLC control system with 7” touch panel operation for precise control. |
| 3. 20KG powder brake unwind tension control to ensure consistent tension for smooth material handling. |
| 4. The banana roller is used to eliminate tape wrinkles during jumbo roll feeding and spreading. |
| 5.Servo control automatic labeling unit is included, so operator no need to stop machine and manually stick labeling paper/film on tape roll end. |
| 6.Spool trim winder is used for edge trimming collect and if tape gets broken during running, machine will auto stop. |
| 7.Super clear bopp tape production: press roller (optional). |
| 8. Core loading and finished tape unloading unit by servo motor control. |
Main Technical Parameters
| Model | FR210TS-13 | FR210TS-16 |
| Effective width | 1300 mm | 1600 mm |
| Max. unwind diameter | 800mm | 800mm |
| Min. slitting width | 24mm | 24mm |
| Max. rewind diameter(shaft3") exchange 4 shafts | 180mm | 180mm |
| Machine speed | 0-200m/min | 0-200m/min |
| Slitting blade (standard razor blade) | 0.2×22×60mm | 0.2×22×60mm |
| Main power | 10KW | 10KW |
| Certification | CE | CE |
People Also Ask
1. What is the machine warranty?
Furimach provides one year warranty period for the machine and its core components.
2. What accessories should I buy?
Paper core cutting machine and doctor rewinding machine.
3. What is the power requirements for this machine
This machine 380V 50HZ 3P, total power:
4. How about FAT?
Furimach will provides detailed testing video and report and also provide tutorial videos.
We also welcome customer to arrange technician on site for trial acceptance and learning.
