Feature

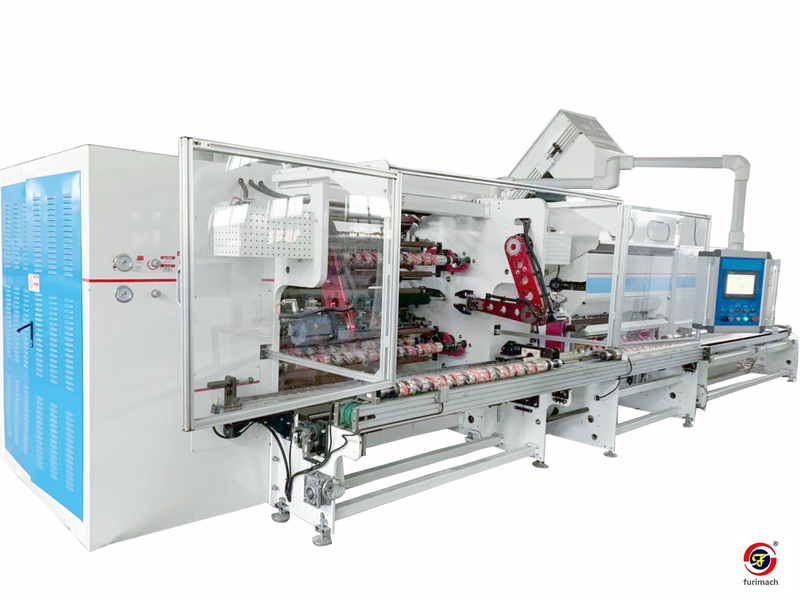

BPA fully automatic adhesive tape slitting machine adopts four-shaft exchange plastic slip ring center winding method. The whole process of fixed-length winding, auto end paper tabbing, auto tape cut-off, rotating and finishing, manipulator handling, paper core loading, finished tape unloading all fully automatic.
Technical Parameters
Slitting tool | Razor blade (standard)/Air blade (optional) |
Max. unwind dia. | 800mm |
Max. rewind dia. | 300mm |
Machine width | 1.3M 1.6M |
Paper core dia. | Unwind 3”/6” (optional), Rewind: 3” |
Working speed | Max. 300m/min |
Min. slitting width | 18mm |
HMI | 10” Siemens HMI |
Sero motor & driver | Siemens |
PLC | Siemens PLC control |
Pneumatic cylinder | SMC |
Certification | CE |
Suitable to slit | BOPP tape, masking tape, duct tape, etc. |
Voltage | 380V 50HZ 3P |
Total power | 30KW |
Machine dimension | 8800*4700*2800 (1.3M) 9700*4700*2800 (1.6M) |
BPA-3513 automatic slitting machine working online with tower type bopp tape packaging video:
BPA-3513 automatic slitting machine working with individual tape packaging and tower packing and automatic carton box loading machine working video:

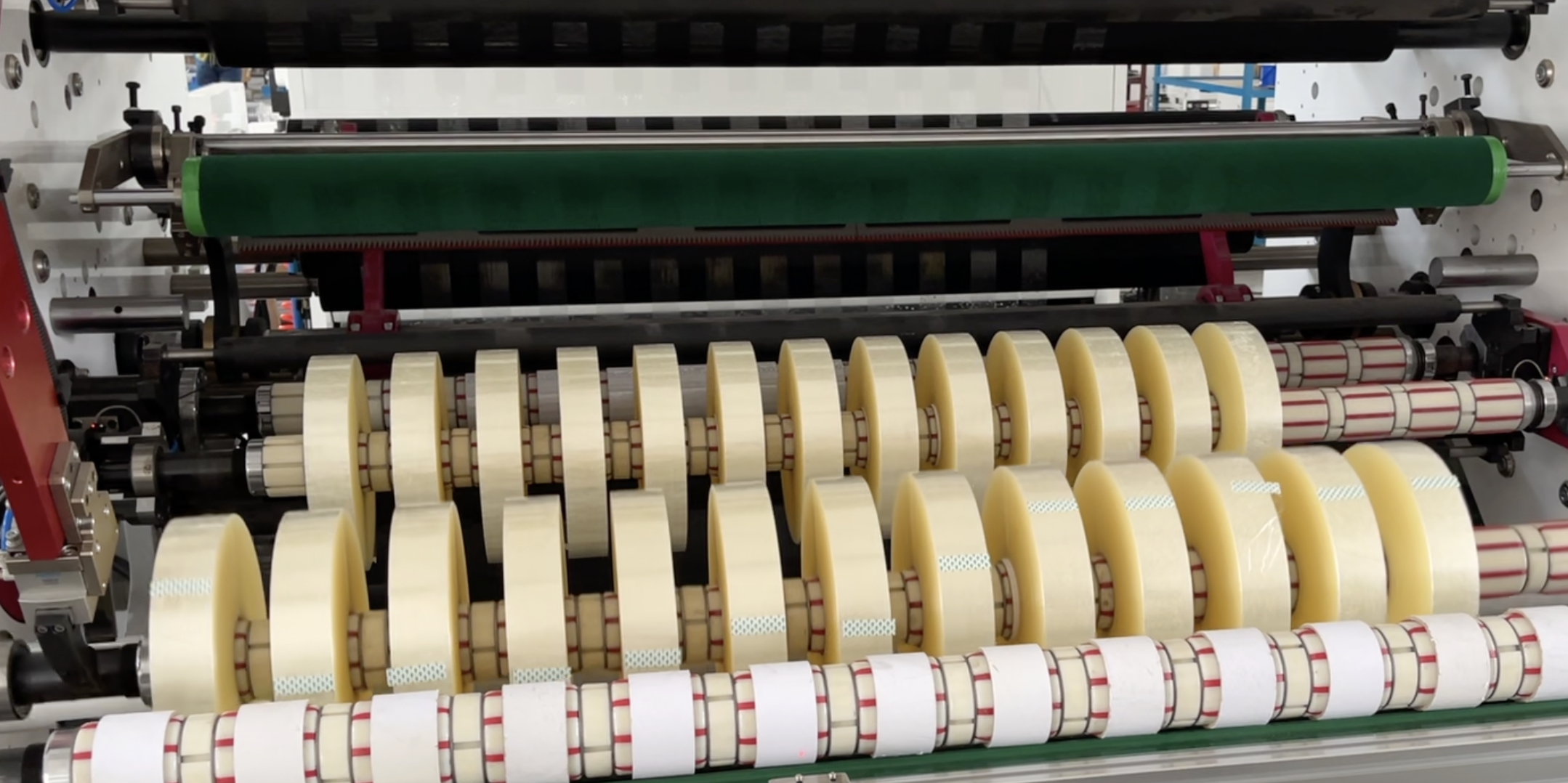

1000M bopp tape production:

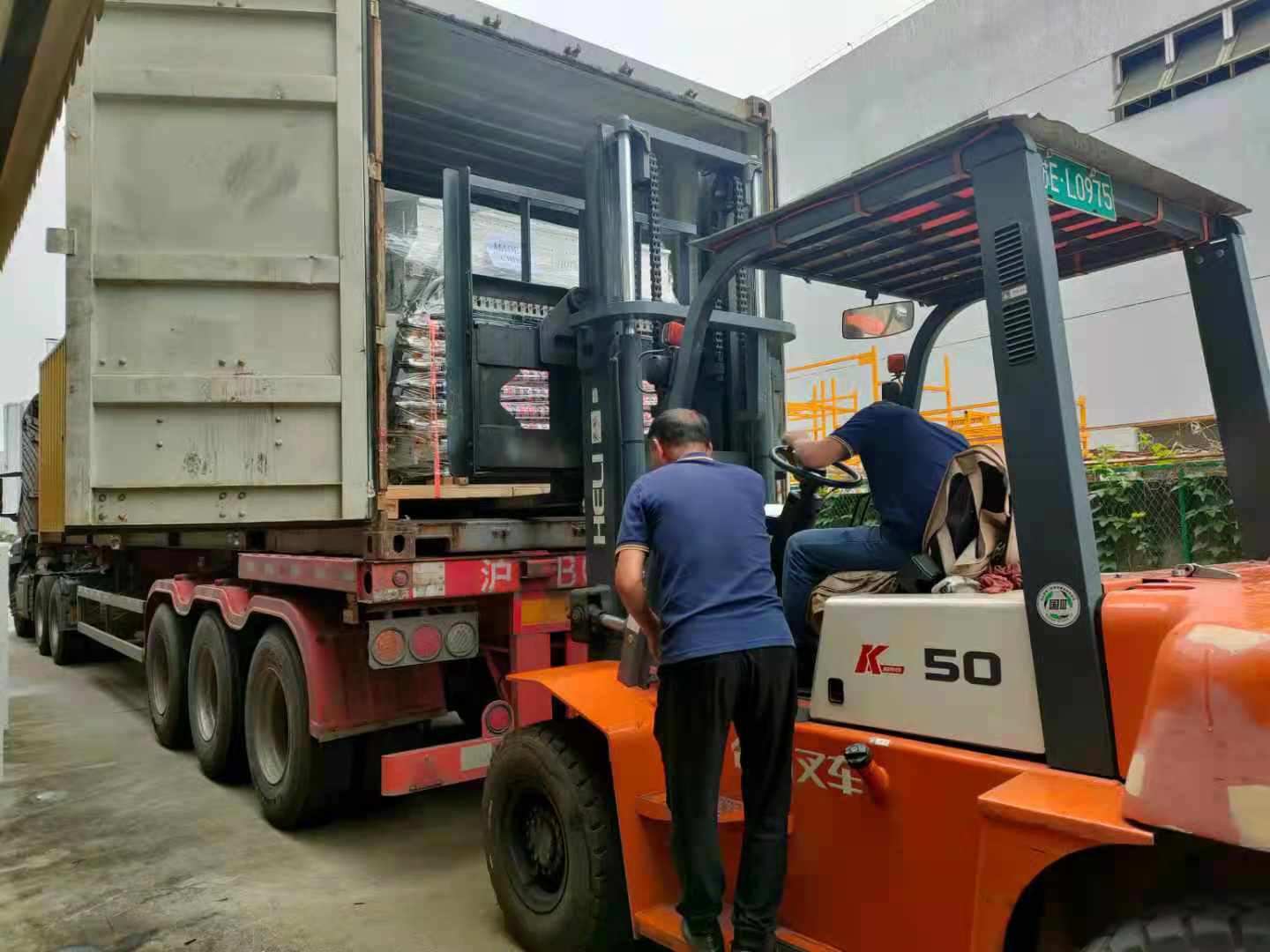

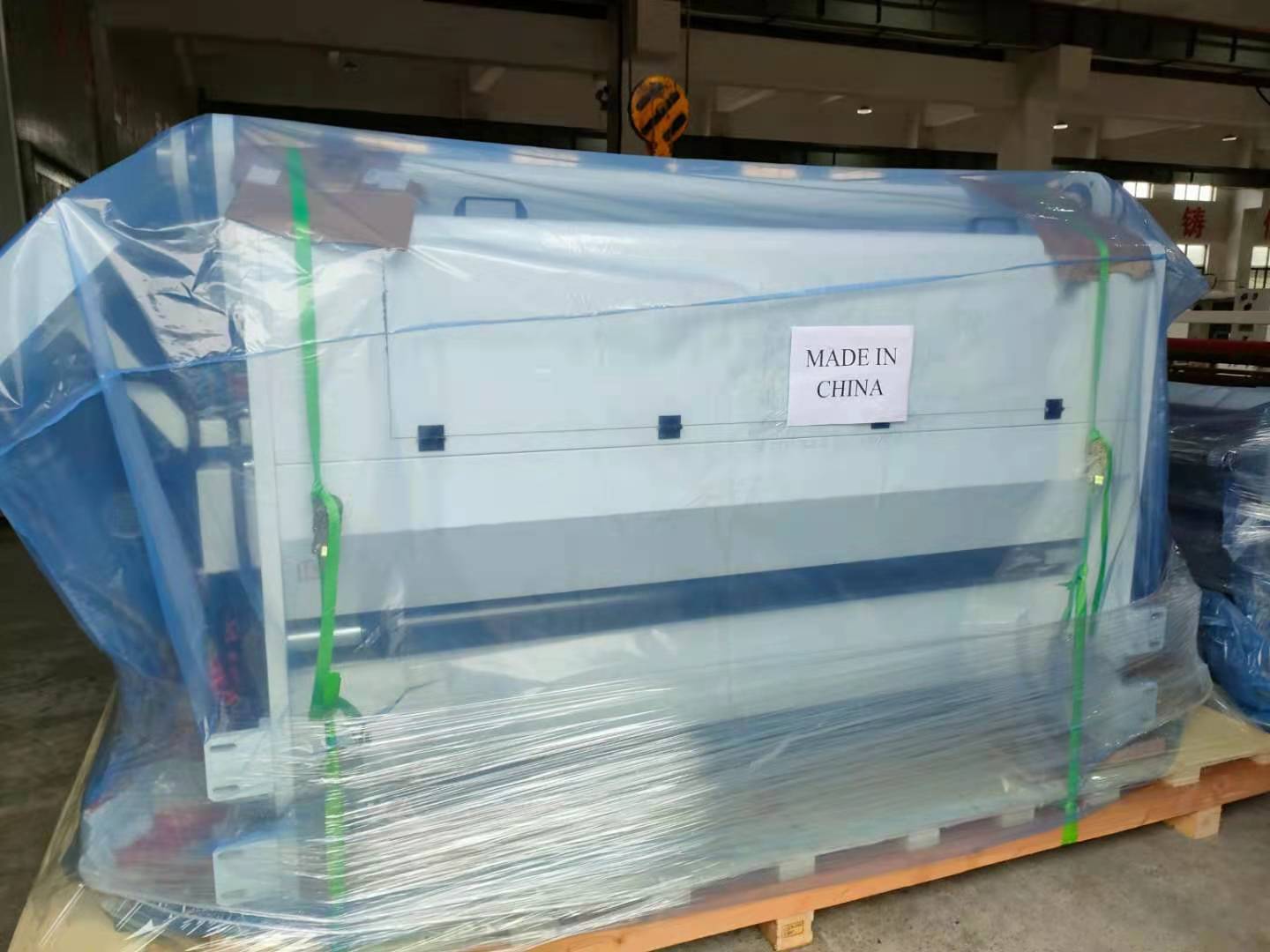

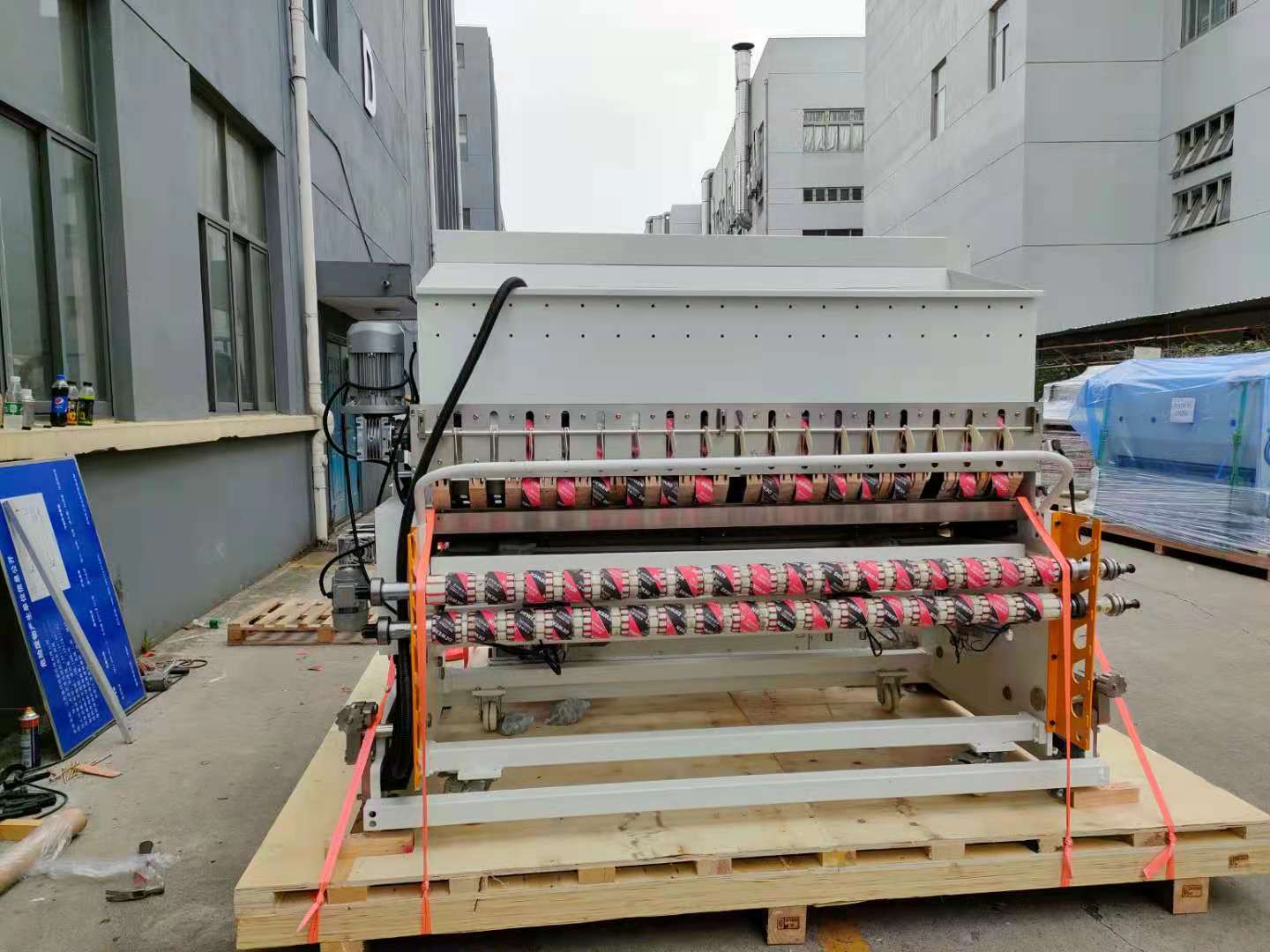

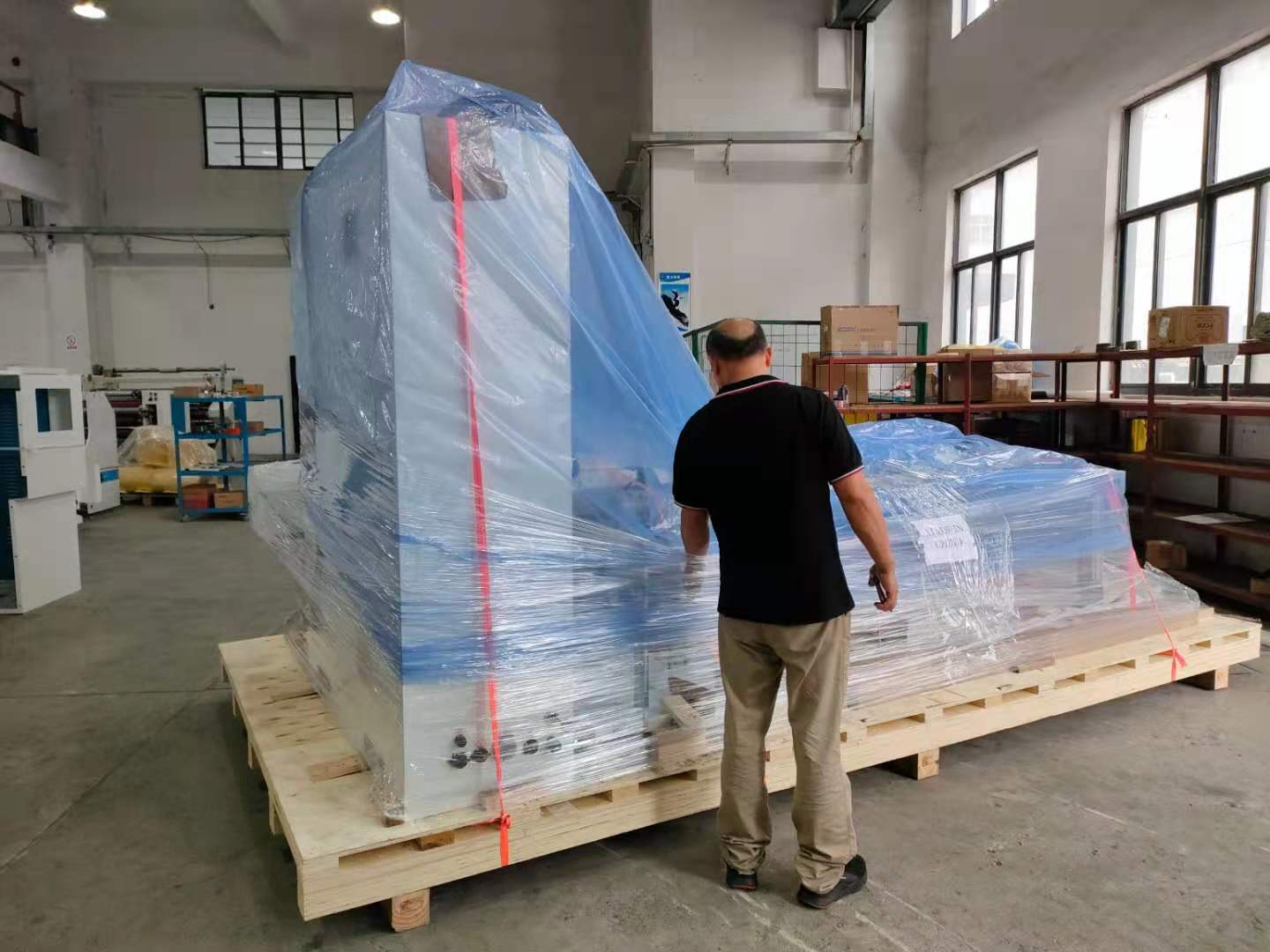

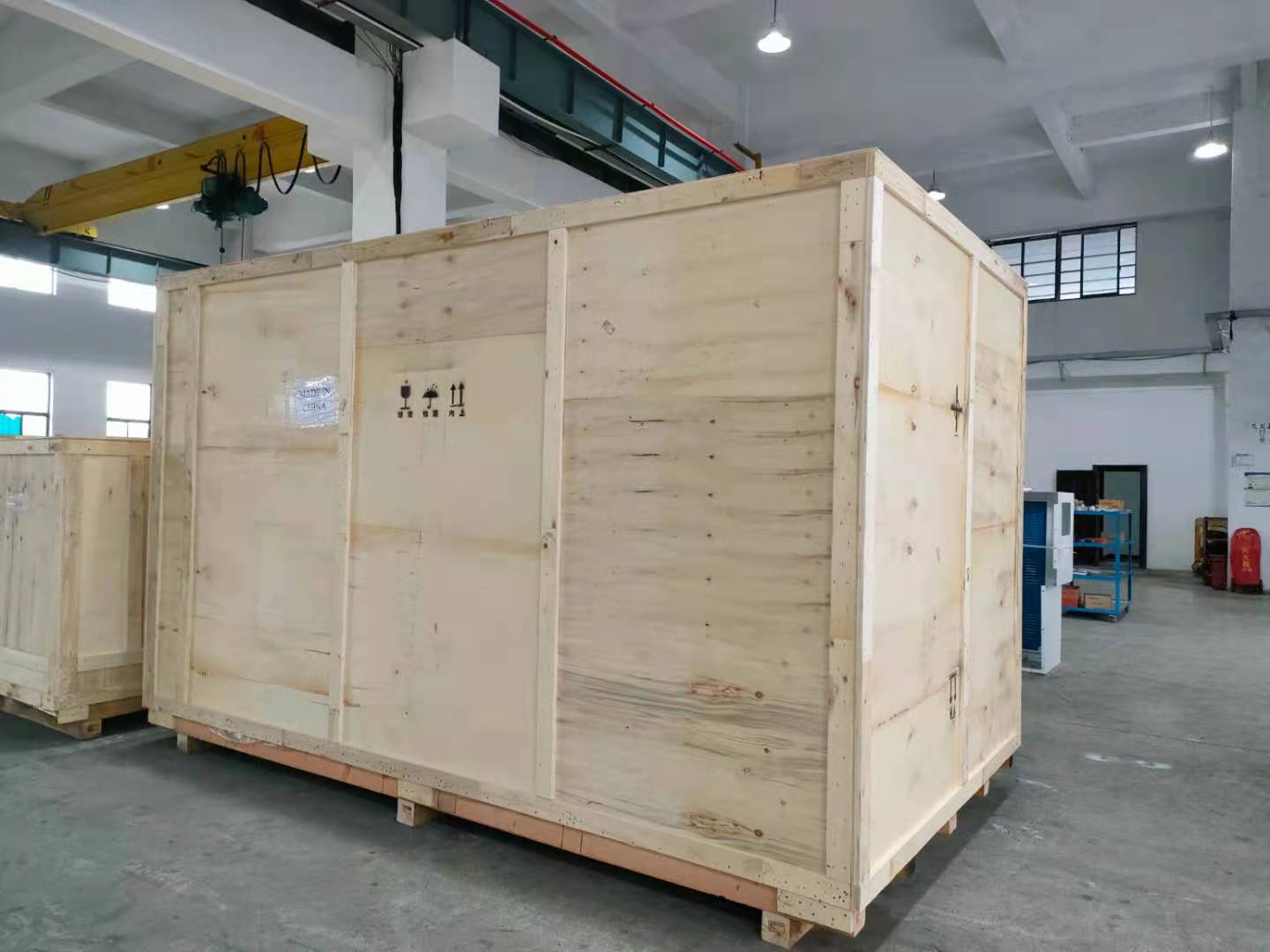

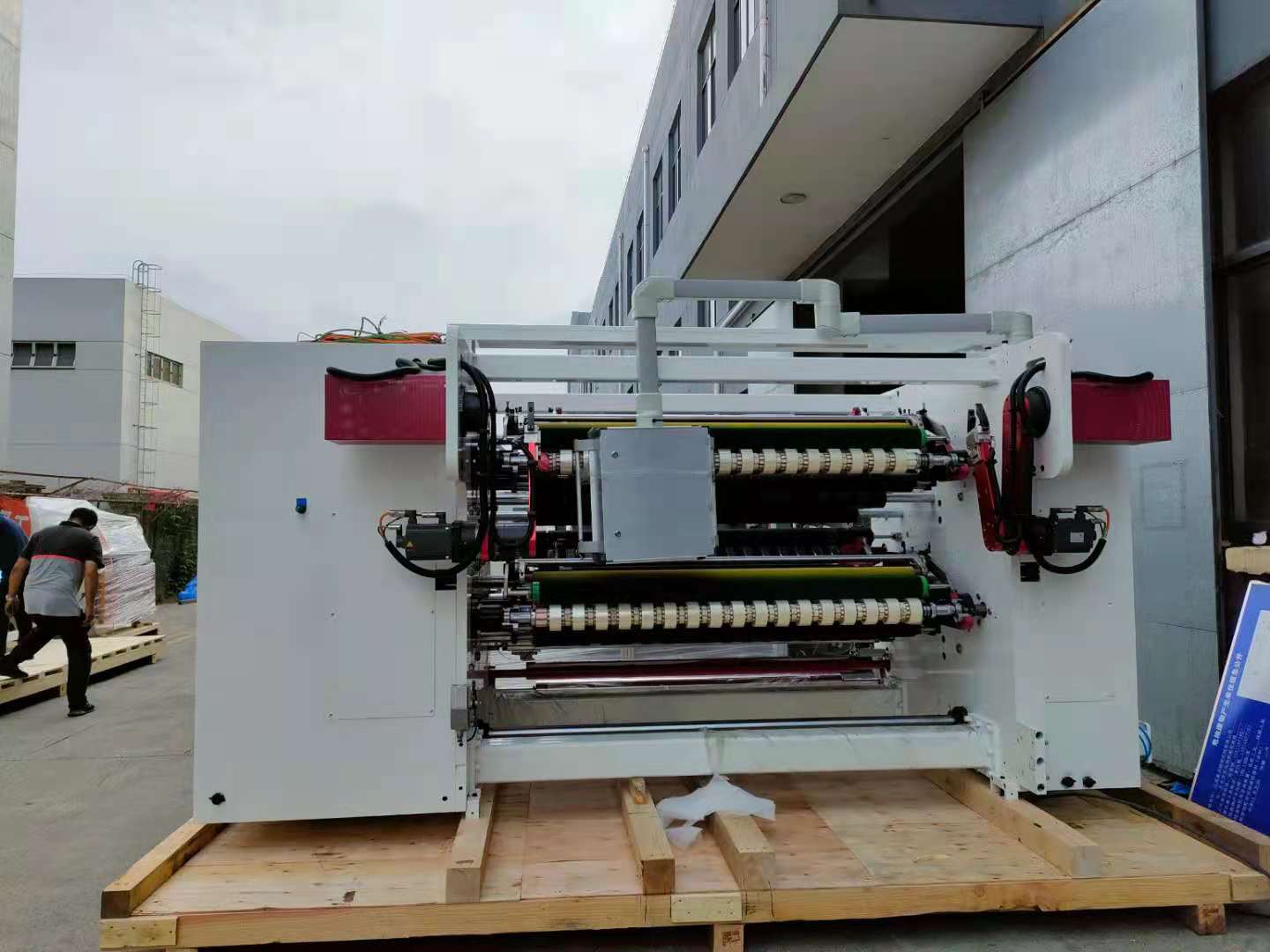

Machine Packing & Delivery
