Feature

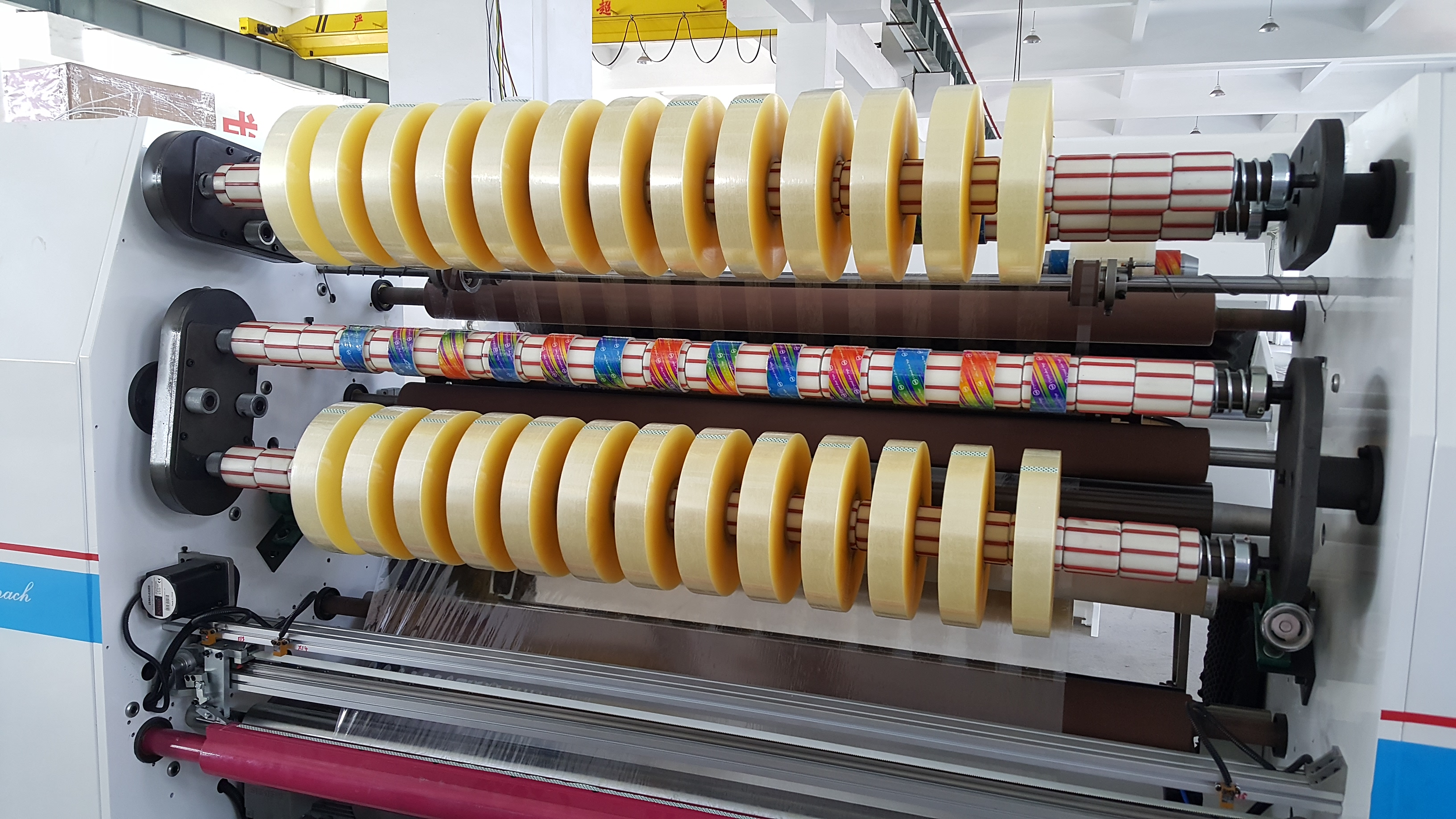

| 1. Fully Automatic Four-Shaft Exchange to improves operational efficiency. |
| 2. Mitsubishi PLC control system with user-friendly touch panel operation for precise control. |
| 3. Powder brake unwind tension control to ensure consistent tension for smooth material handling. |
| 4. The banana roller is used to eliminate tape wrinkles during jumbo roll feeding and spreading. |
| 5. Unwind double-press roller can reduce noise. |
| 6.Spool trim winder is used for edge trimming collect and if tape gets broken during running, machine will auto stop. |
| 7.Motor-driven rewind system to maintains stable tension control for uniform winding. |
| 8. Optional: Auto tabbing device, jumbo roll up-lifter, noise hood and air score knives for masking tape converting. |
Main T
Technical Parameters
| Model | FR210C-1300 | FR210C-1600 |
| Effective width | 1320 mm | 1620 mm |
| Max. unwind diameter | 800mm | 800mm |
| Min. slitting width | 12mm | 12mm |
| Max. rewind diameter(shaft3") exchange 4 shafts | 300mm | 300mm |
| Machine speed | 0-180m/min | 0-180m/min |
| Slitting blade (standard razor blade, optional: air blade) | 0.2×22×60mm | 0.2×22×60mm |
| Main power | 10KW | 10KW |
