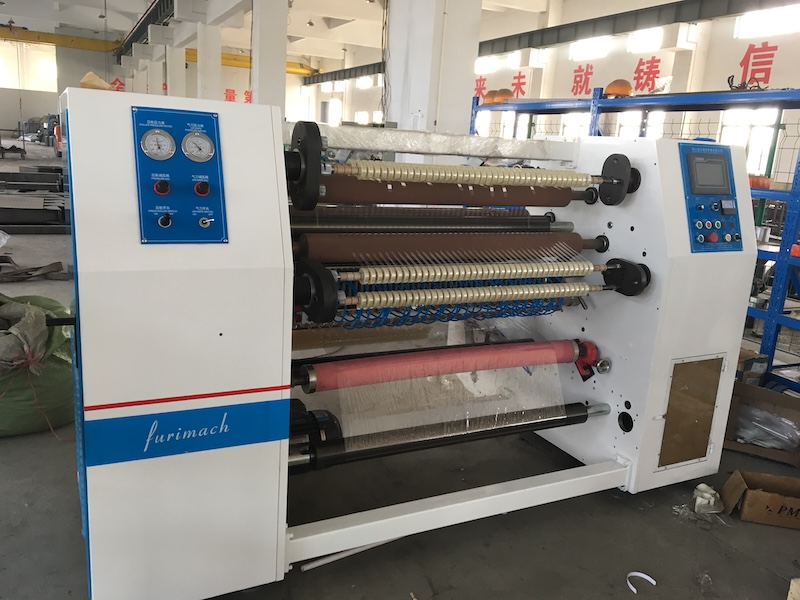

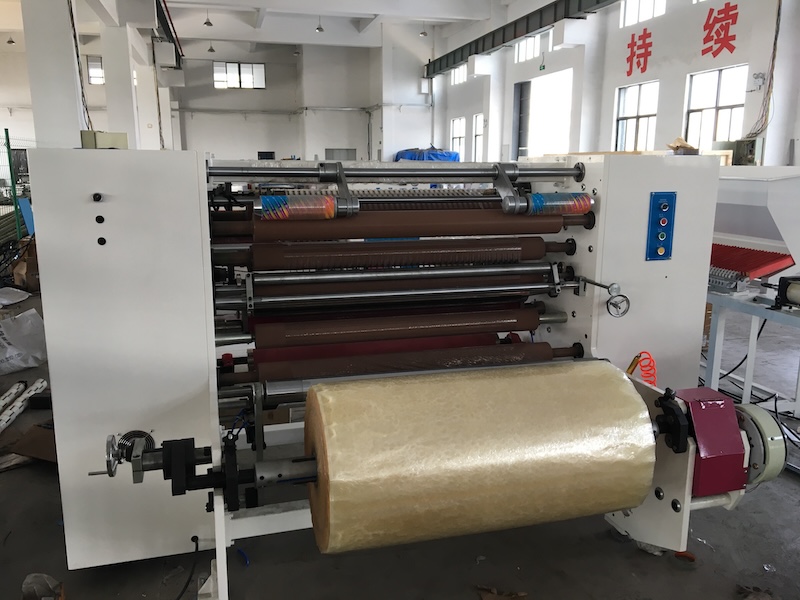

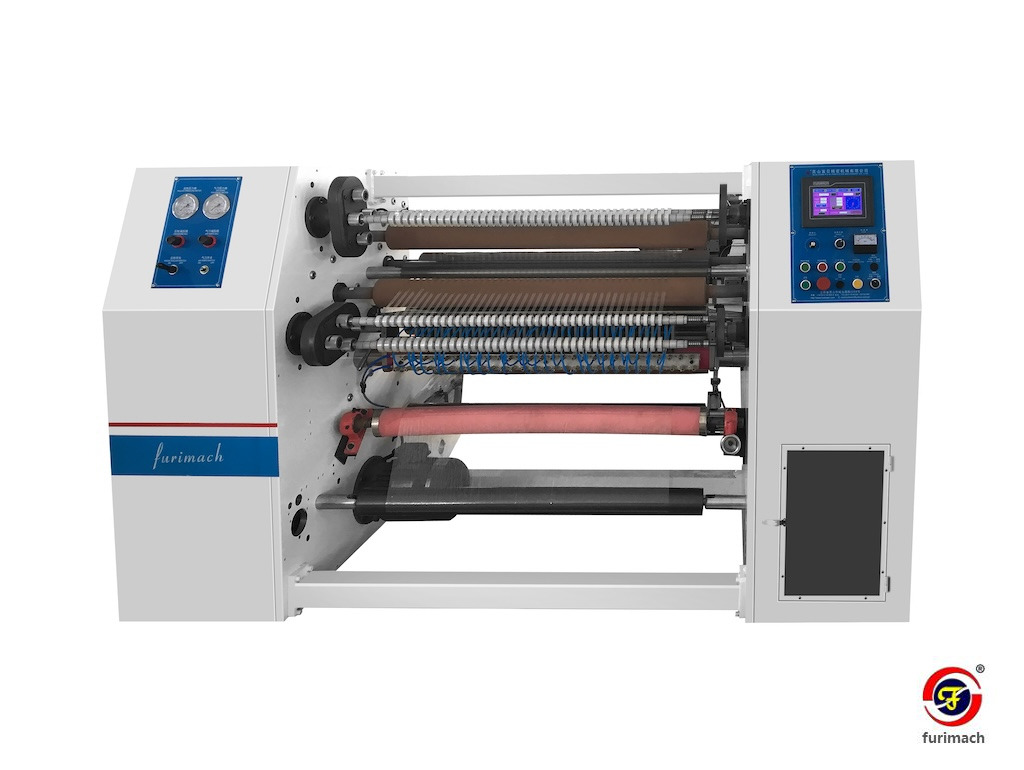

Feature
| 1. The machine adopts a fully automatic four-shaft exchange system, significantly improving efficiency. |
| 2. Japan Mitsubishi PLC control system with 7” touch panel operation. |
| 3. Automatic shaft exchange: once the rewinding operation is finished, the machine will automatically perform shaft exchanges for convenient and efficient operations. |
| 4. The banana roller is used to eliminate BOPP tape wrinkles during spreading and feeding. |

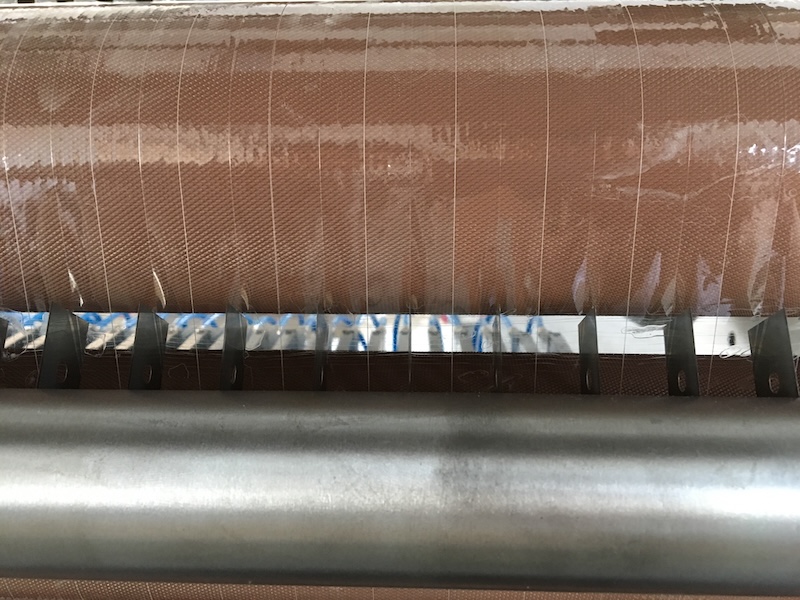

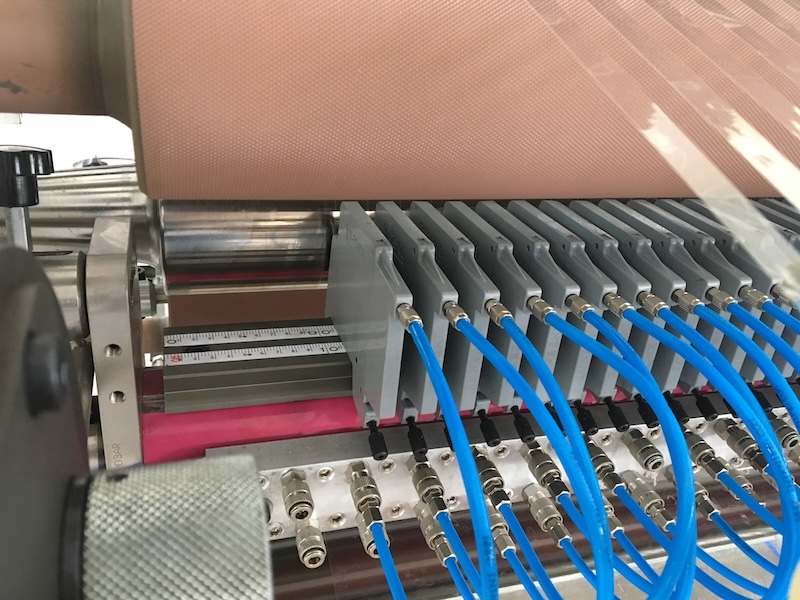

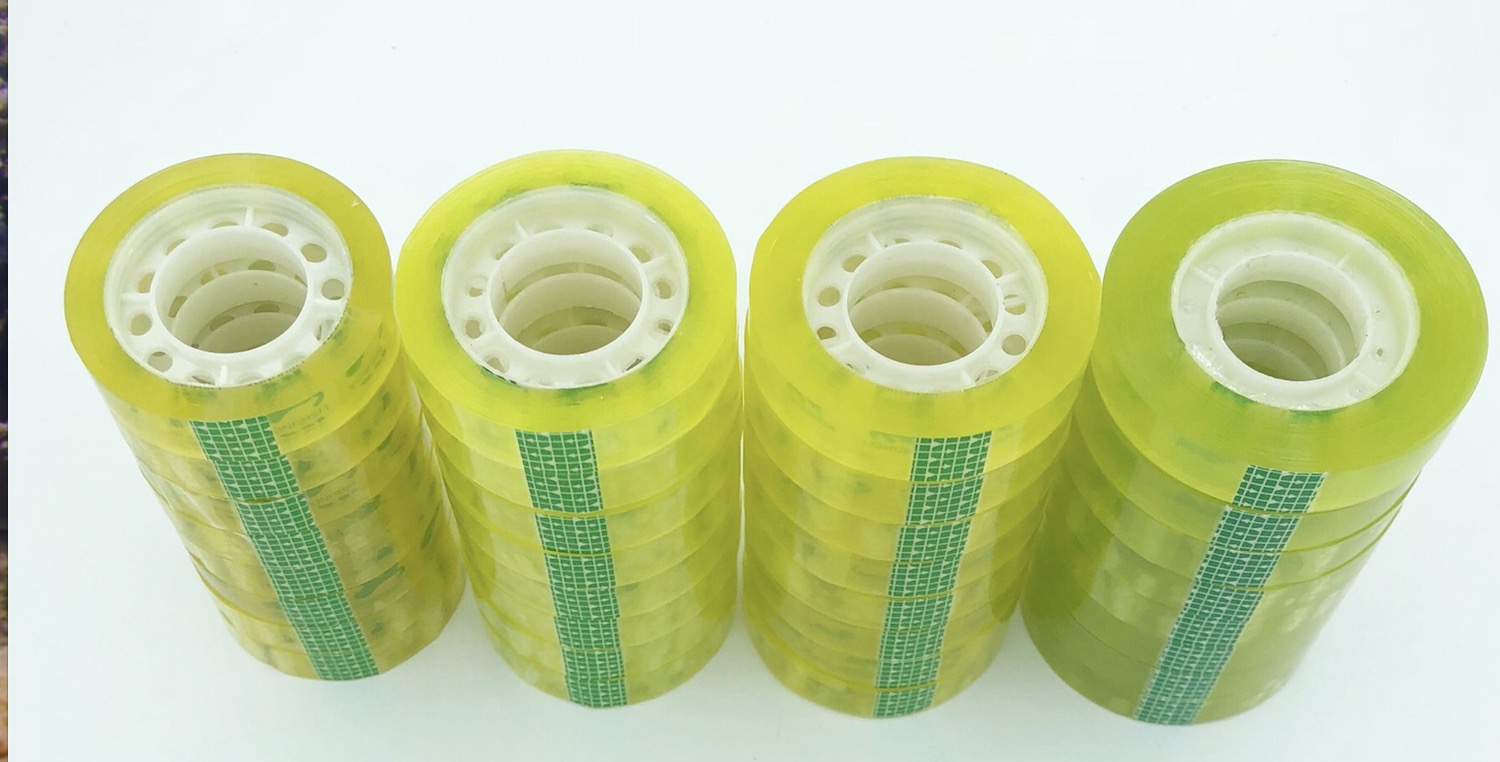

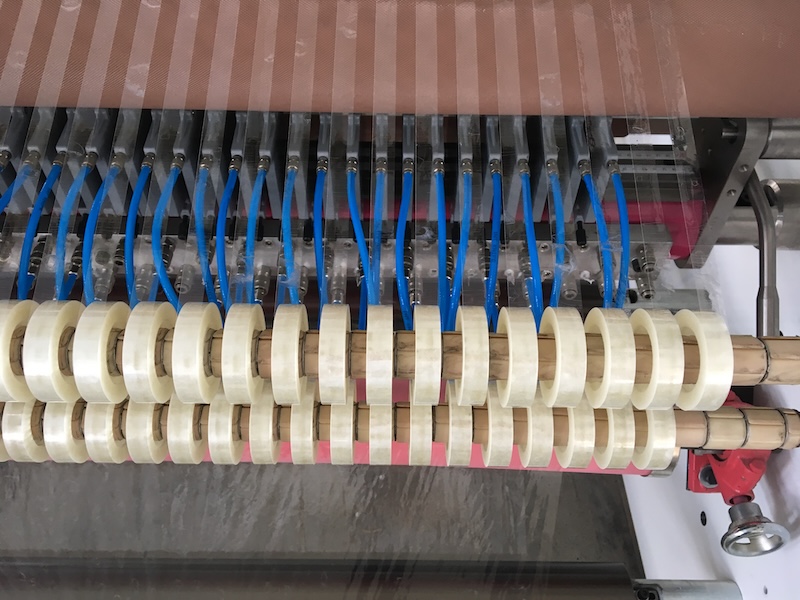

| 5. Air blades (optional): The standard machine comes equipped with a razor blade. However, since stationery tape is commonly used by school children, an easy-tear function is essential. Air blades provide this functionality, ensuring clean and effortless tearing. Additionally, the knife positions can be adjusted horizontally (left/right), and the air blade pressure can be fine-tuned to accommodate different tape materials. |
| 6. Spool trim winder is used for edge trimming collect and if tape gets broken during running, machine will auto stop. |
Main Technical Parameters
| Effective width | 1020mm |
| Max. unwind diameter | 800 mm |
| Slitting width | Min. 12mm |
| Rewind diameter | 80 mm (1" core) |
| I.D. of paper core | 1” (standard)/3” (optional) |
| Machine speed | 0-180 M/min |
| Motor | 4KW |
| Slitting blade | Razor blade (standard)/Air blade (optional) |
| Certification | CE |
