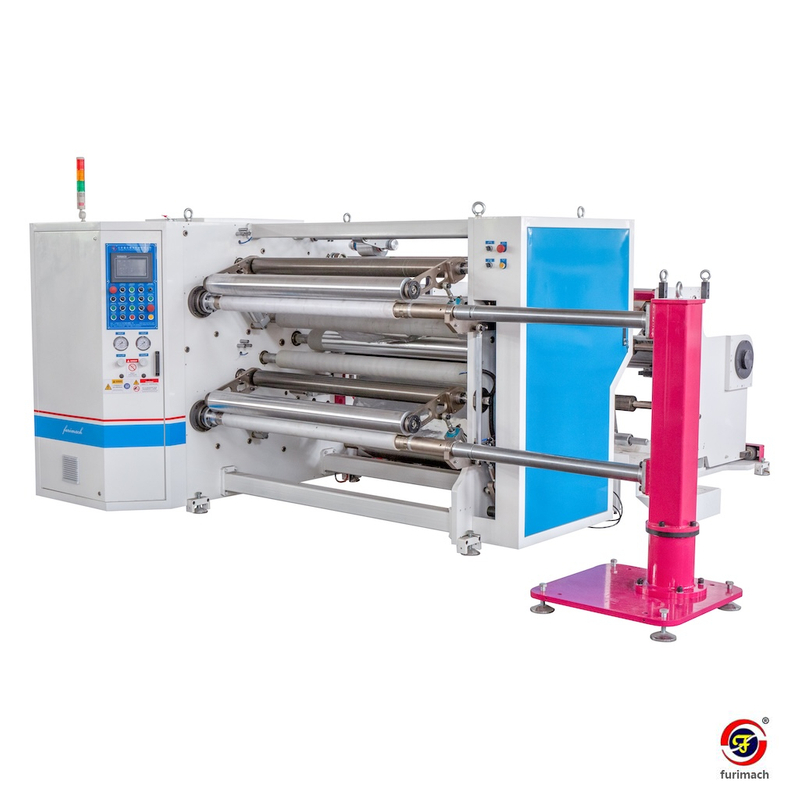

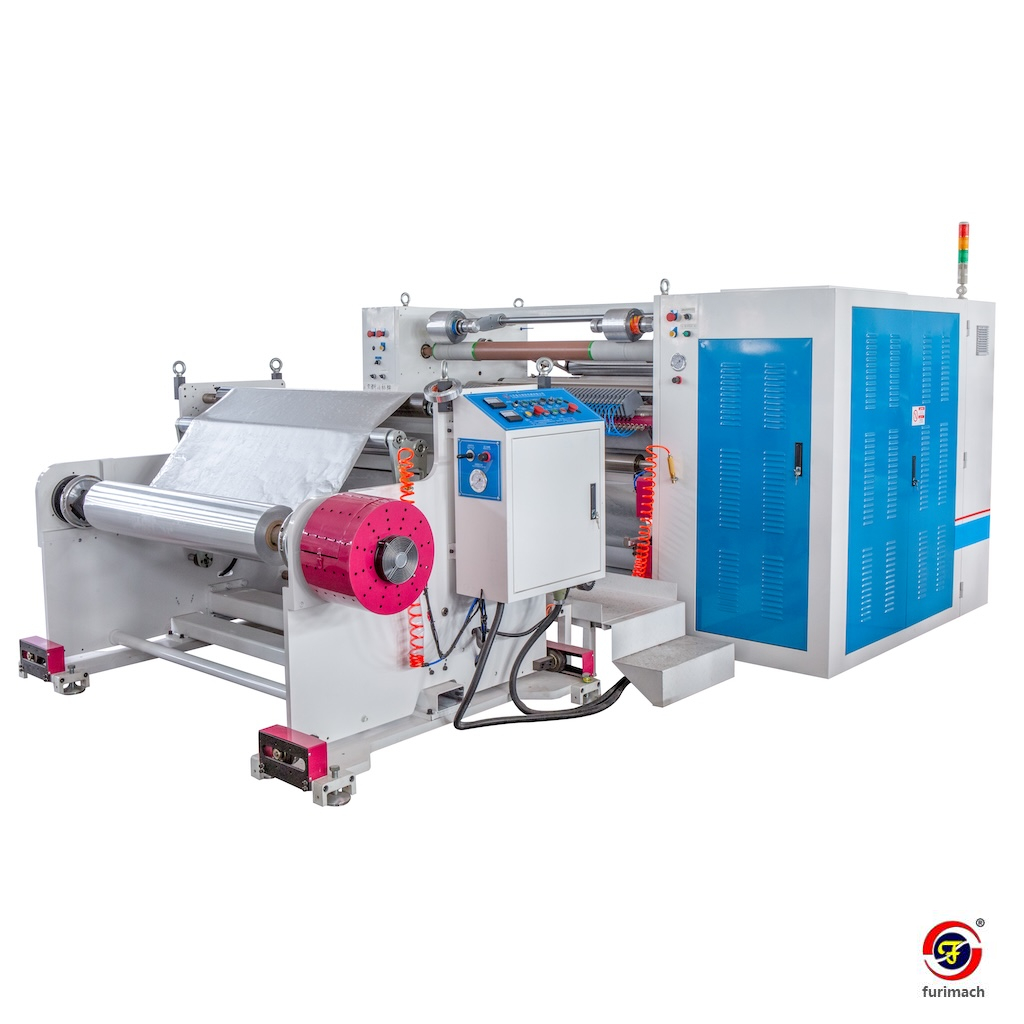

Feature of FR-2441A Aluminum Foil Tape Slitting Machine
1. The motor unit features a three-motor connective control system, ensuring high speed, stable tension, and a smooth, high-quality output.
2. The machine is equipped with a tension detection device and a Germany Siemens PLC-controlled automatic constant tension system for precise operation.
3. The unwind brake is from the Italy RE brand, ensuring reliable performance.
4. 3-inch differential shafts for stable tension control and precise winding.
5. Ultrasonic web guide control system for accurate web alignment.
6. Machine guide rollers undergo hard anodizing treatment for durability and smooth operation.
7. Spool trim winder system for efficient waste edge trimming.

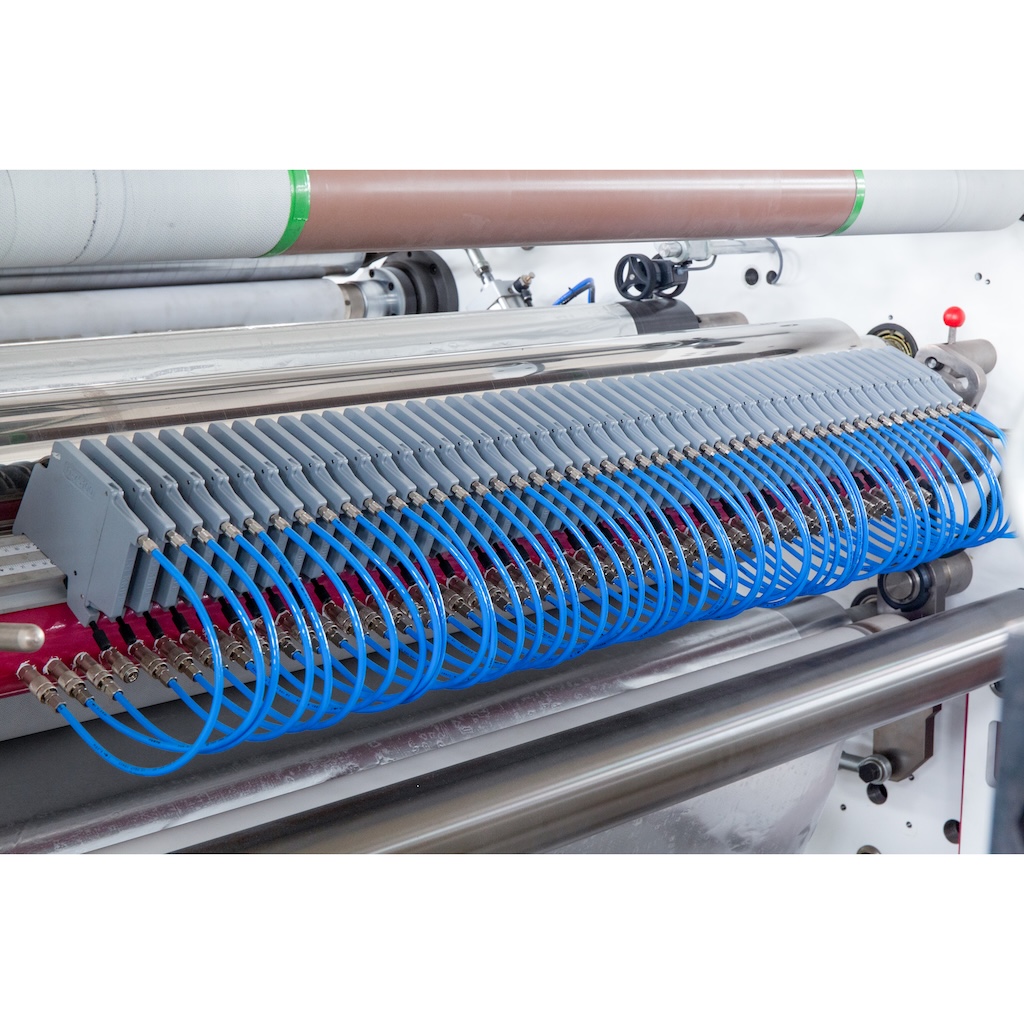

8. Air score knives combined with a Taiwan-made hard roller system for precise and clean slitting.
Technical Parameters
Max. rewind O.D. | 450mm | Machine width | 1.3M/1.6M |
Max. unwind O.D. | 1000mm | Core I.D. | 3 "/6" |
Min. slitting width | 25mm | Machine max.speed | 180M/Min |
Air source | 0.6 MPa | Power source | 380V 3P 50HZ |
Aluminum Foil Tape Slitting Machine Working Video:
