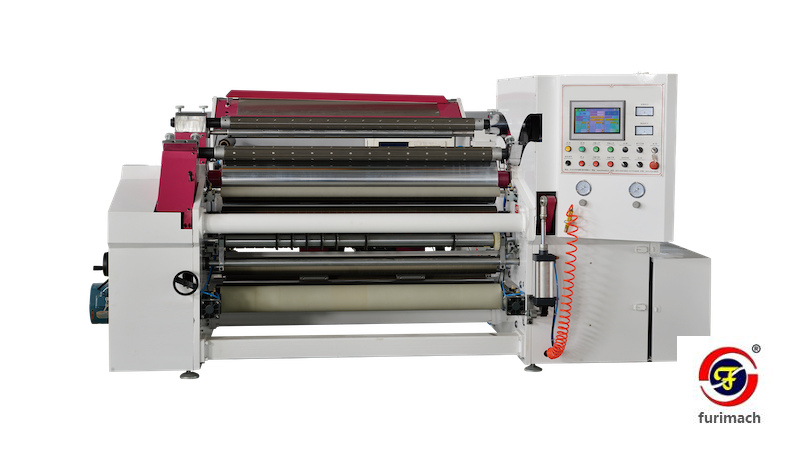

Key Features
1. Unwinding Section
Connective unwind stand with a 3" air shaft.
Material tension during unwinding is regulated by magnetic powder brake combined with automatic tension control system.
2.Auto Web guide control: automatic edge alignment device.
3. Slitting Section
Shear Blade Cutting: The slitting mechanism is equipped with upper and lower circular blades for precise slitting.
4.Waste disposal: Equipped with a trim reject fan for efficient waste removal.
5. Surface Winding Section
Dual independent motors for each rewinding shaft, ensuring ultra-precise tension control. Each rewinding shaft employs independent slip control to ensure uniform tension across every finished roll. Surface-Driven Rewinding: The finished product rewinding system includes a surface roller for smoother and flatter material winding.
6. Siemens PLC control system
7. Man-Machine Interface Control System
10” LCD color touch screen for intuitive operation.
Main Technical Parameters
Machine width | 1.3M |
Min. slitting width | 20mm |
Max. unwind diameter | 800mm |
Max. rewind diameter | 600mm |
Max. speed | 200M/min |
Slitting blade | Shear blade |
Total power | 12KW |
