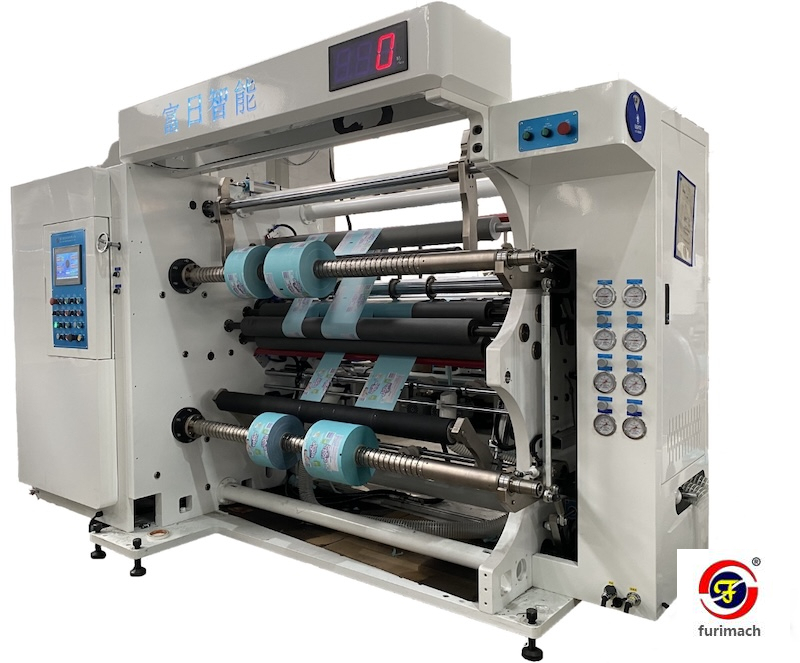

SLD-61581
Furimach
84411000
Machine Feature
1. Unwind Unit: shaftless unwinder stand equipped with 3” and 6” cone chucks for easy material handling and precise tension control.
2. Automatic Web Guide Control: includes both EPC (Edge Positioning Control) and LPC (Line Positioning Control) systems for accurate web alignment.
3. Automatic Tension Control: ensures consistent tension throughout the slitting process, optimizing material quality and minimizing waste.

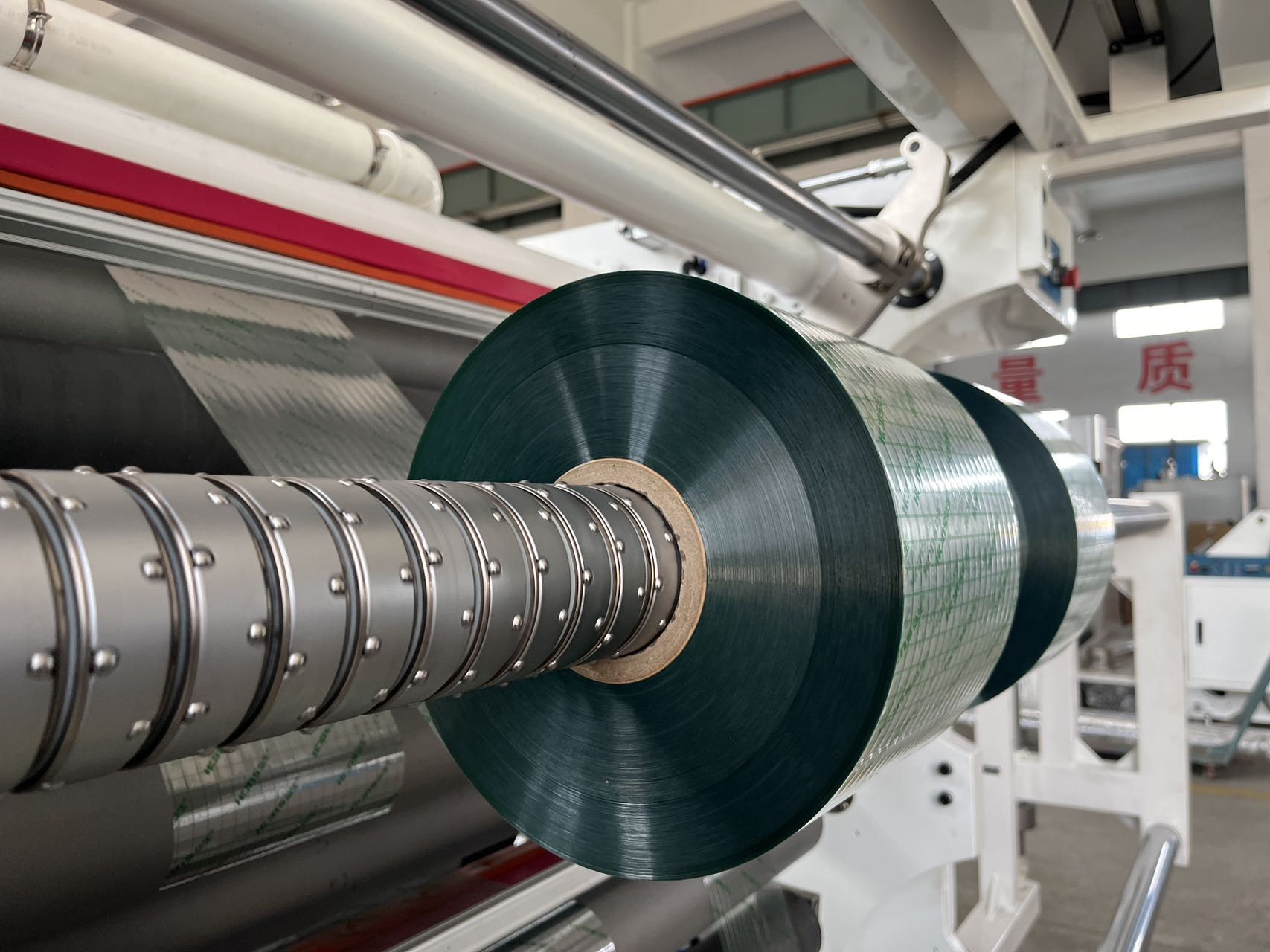

4. Rewind Unit: double-shaft (up/down) winding, 3” differential shaft rewind system for smooth and stable winding, ensuring high-quality finished rolls (6” friction rings also available for 6” core winding solution).
5. Siemens PLC Programmable Control: advanced programmable logic controller for easy automation and precise process control.
6. High-Speed Operation: linear speed up to 500M/Min, maximizing production efficiency.

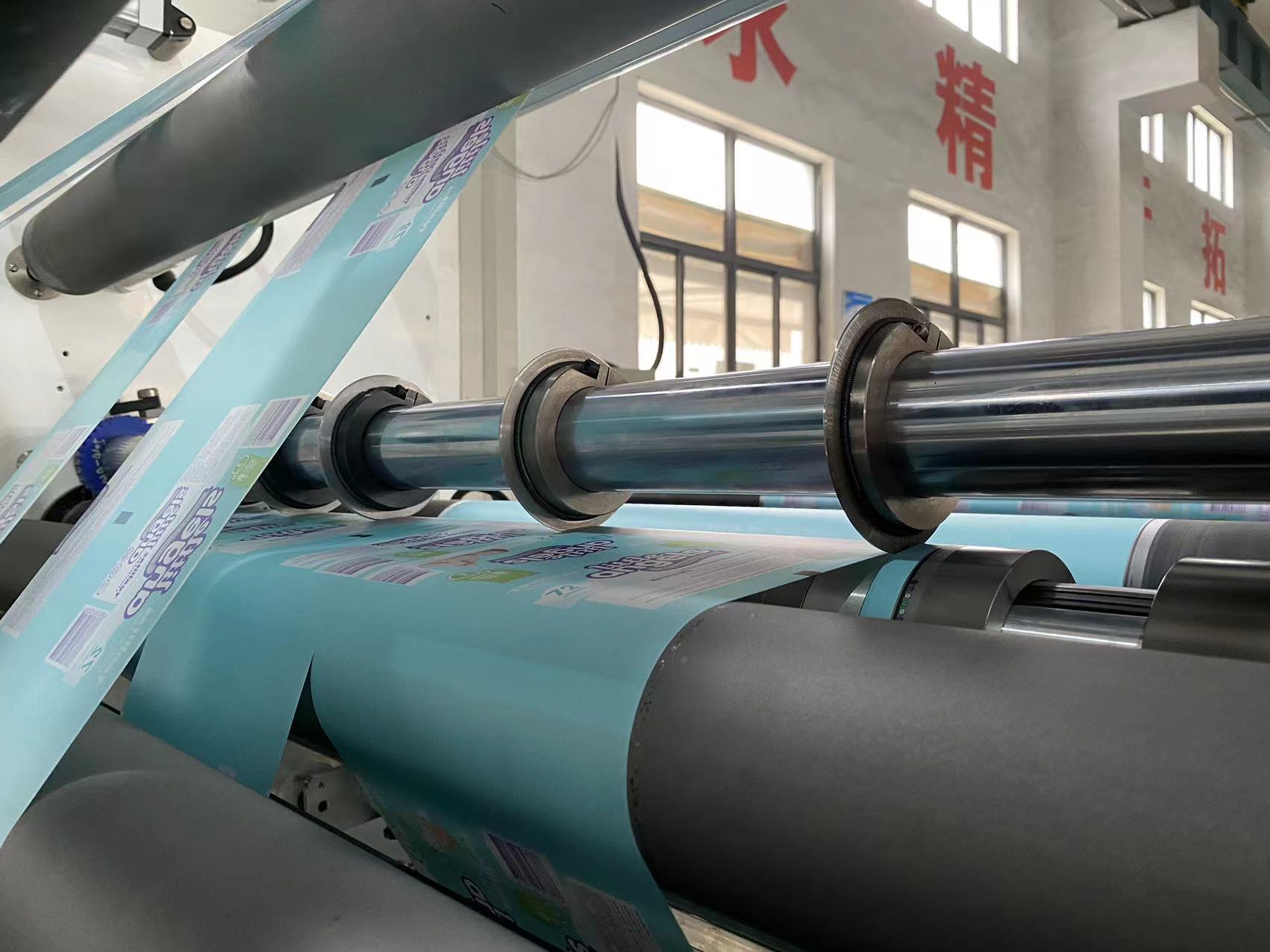

7. Slitting Unit: standard razor blade slitting system, with optional shear blade for specific material types or applications.
8. Edge Trimming: side-type fan blower system (standard), spool trim winder machine (optional).
9. Infrared Auxiliary Core Positioning System: Uses infrared technology to position the core accurately, reducing setup time and improving efficiency.

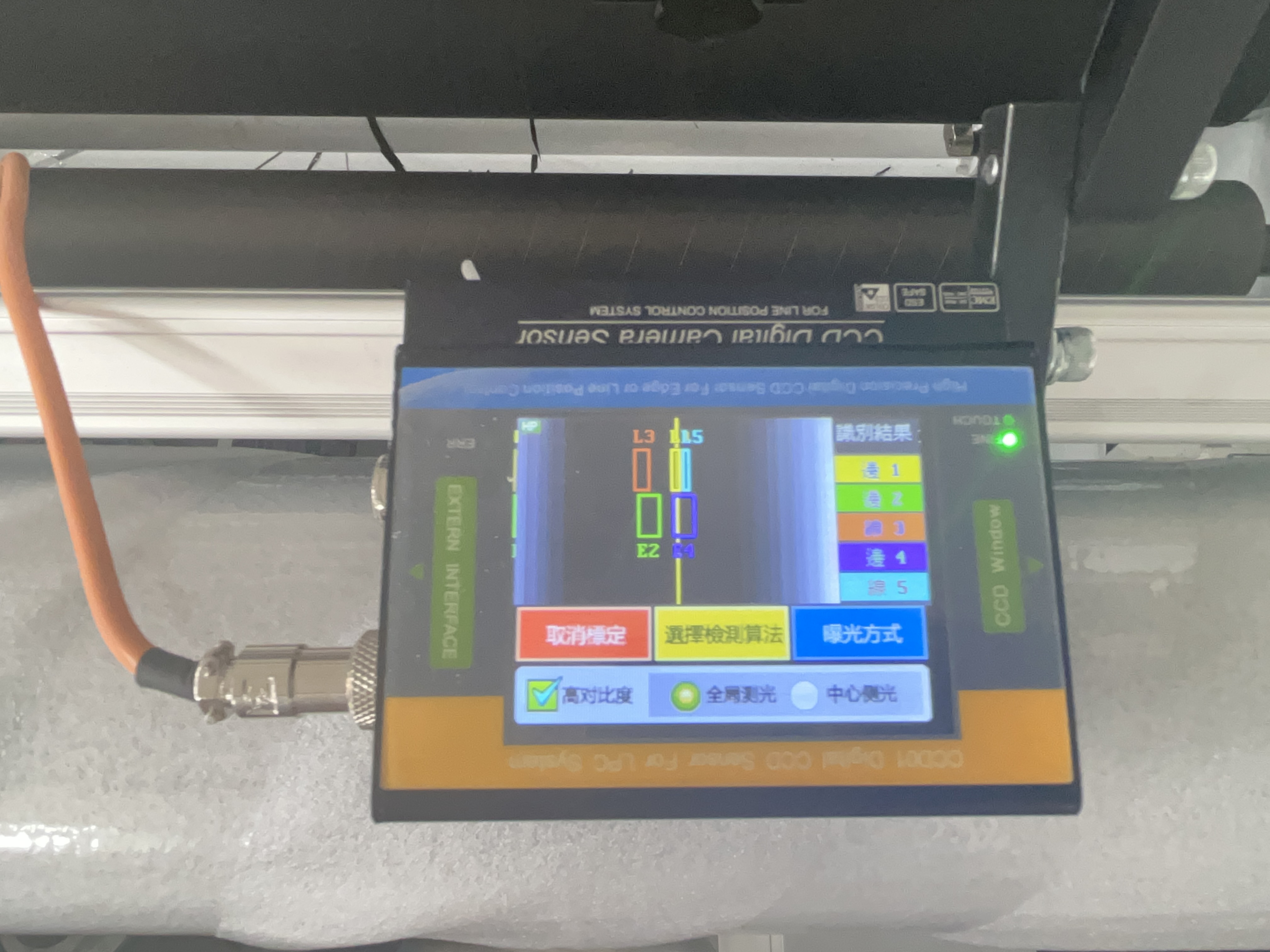

Taiwan Pausource EPC/LPC Web Guide Controller Camera
Optional Items

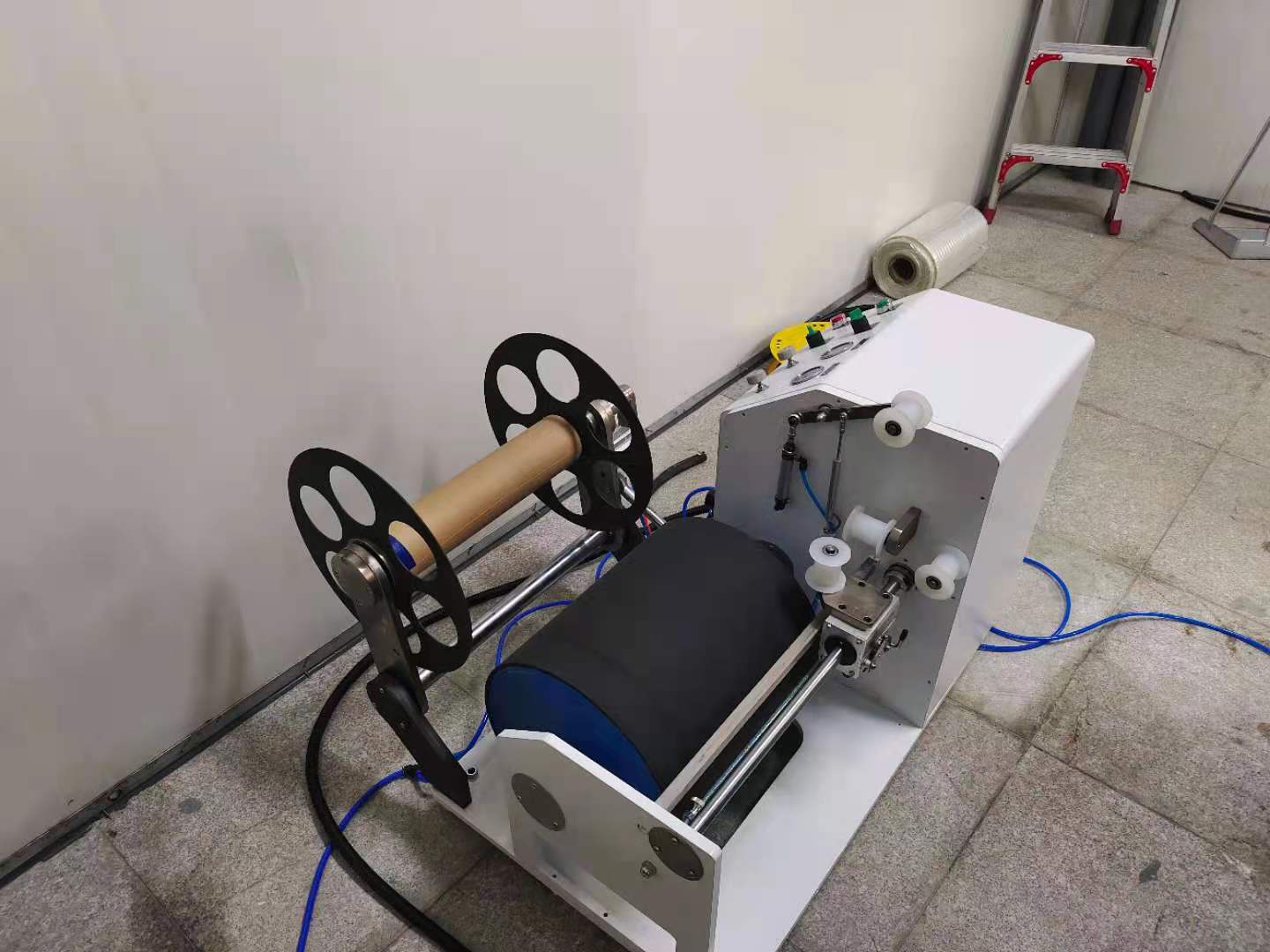

1. Spool trim winder for waste disposal
2. Auto Pusher: finished reel auto pusher and unloader system
3. 6” friction ring
4. Shear blade slitting tool:

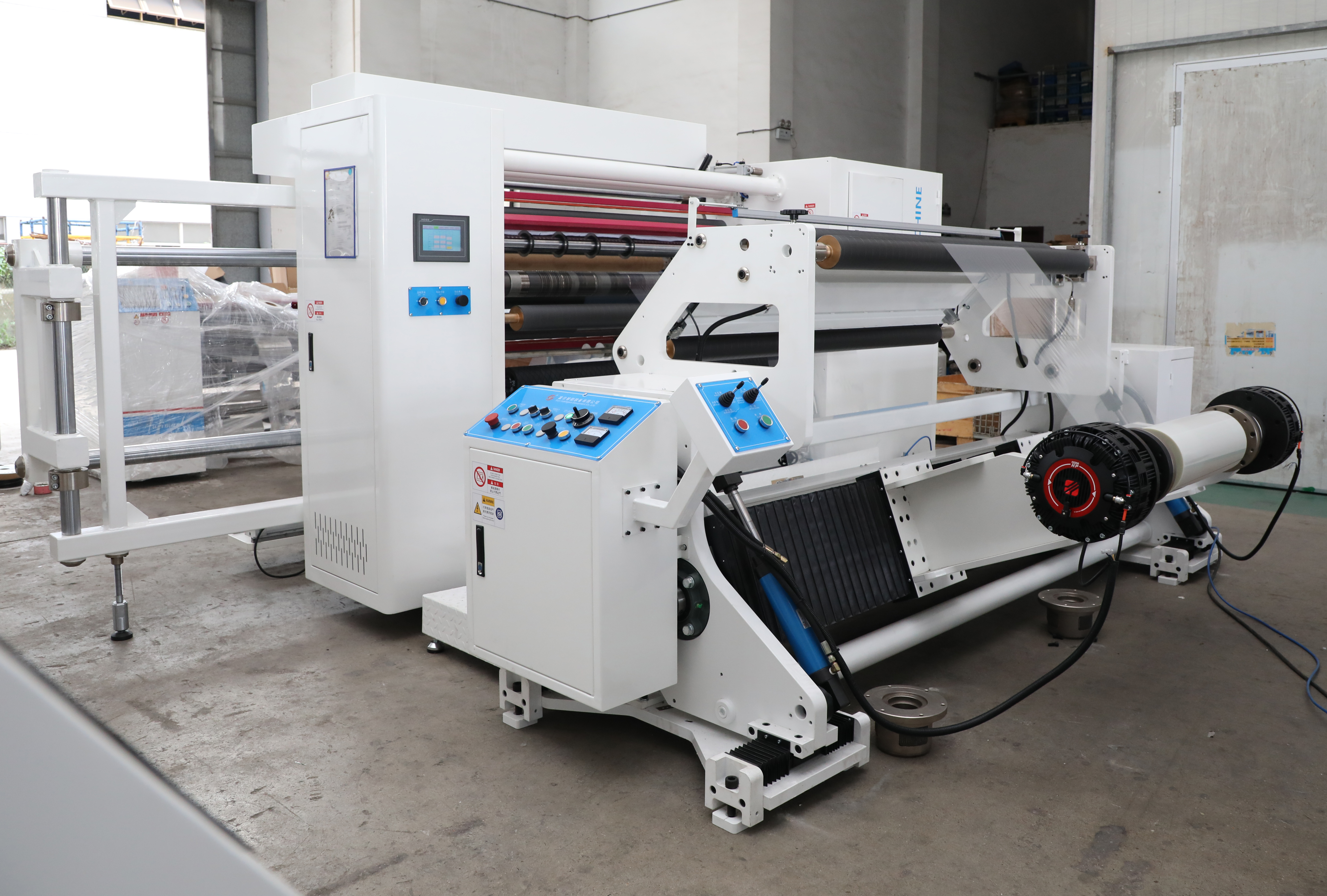

5. Separate Unwinder System

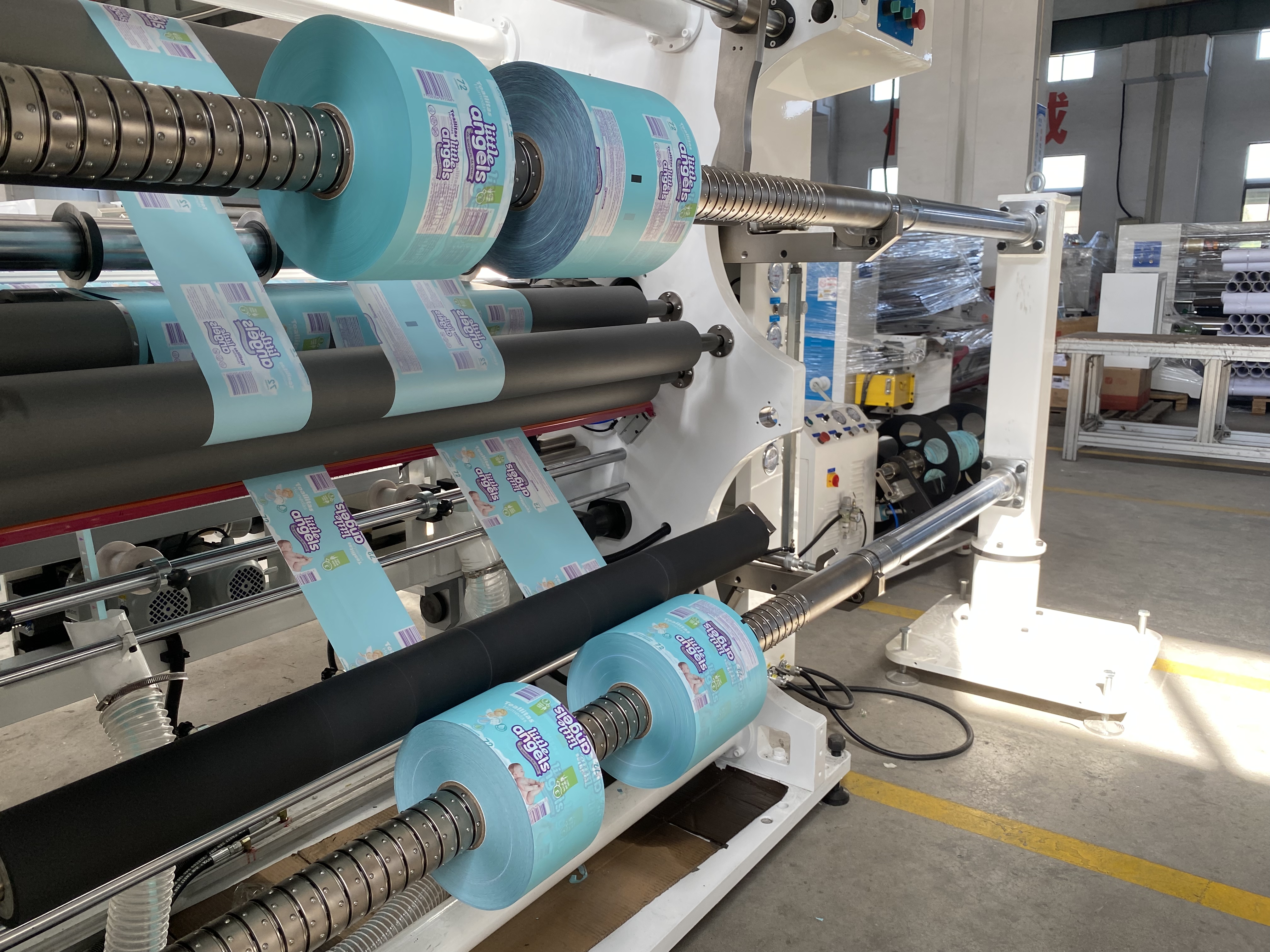

Finished Roll After Slitting
Main Technical Parameters
| Machine width | 0.8M/1.3M/1.6M |
| Min. slitting width | 30mm |
| Max. unwind diameter | 800mm |
| Max. rewind diameter | 600mm |
| Max. speed | 500M/min |
| Slitting blade | Standard: razor blade Optional: shear blade |
| Paper core I.D. | 3 "/6 " |
| Power source | 380V 50HZ 3P |
| Certification | CE |
How does the machine works?
0.8M slitter working video:
1.3M slitter working video:
