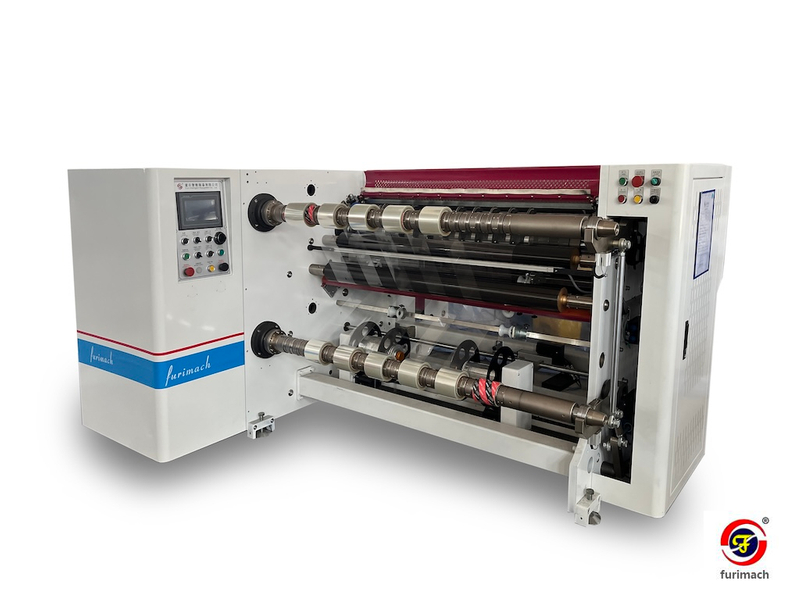

SLD-51131 Double-shaft Plastic Film Slitting Rewinding Machine


Availability:

Quantity:



Inquire Add to Basket

Application
Suitable for slitting rewinding release film, protective film, static film, BOPP film, die cutting use waste removal film, optical film, release paper, medical use elastic fabric, etc.

Model:
SLD-51131, SLD-51231
Brand:
Furimach
Code:
84411000

Product Description

Feature

1. Three-motor connective control with stable tension control and nice-looking products.

1. Mitsubishi PLC system with a 7" touch panel for tension, length, and other settings

2. Dual-shaft rewind system can be changed easily from air shaft to differential shaft.

3. Waste disposal system uses servo driven spool trim winder device.

4. Slitting tool adopts shear blades (Optional: razor blades also available).

5. Splice table for convenient material splicing and quick roll change and web connecting.

6. The unwinder adopts shaftless connective type, unwind jumbo roll core applicable for both 3” and 6” cores.

7. It’s equipped with finished reels unloading device (optional).

51131

waste removal film 1 waste removal film 3

Technical parameter

Machine width	1.3M/1.6M
Min. slitting width	25mm
Max. unwind diameter	800mm
Max. rewind diameter	500mm
Max. machinery speed	180M/min
Paper core I.D.	3/6"
Power source	380V 3P 50HZ
Air source	0.6 MPa
Rewind shaft	differential shafts
PLC	Japan Mitsubishi
Slitting blade	Shear blade
Tension control	Automatic control
Web guide control	Automatic control
