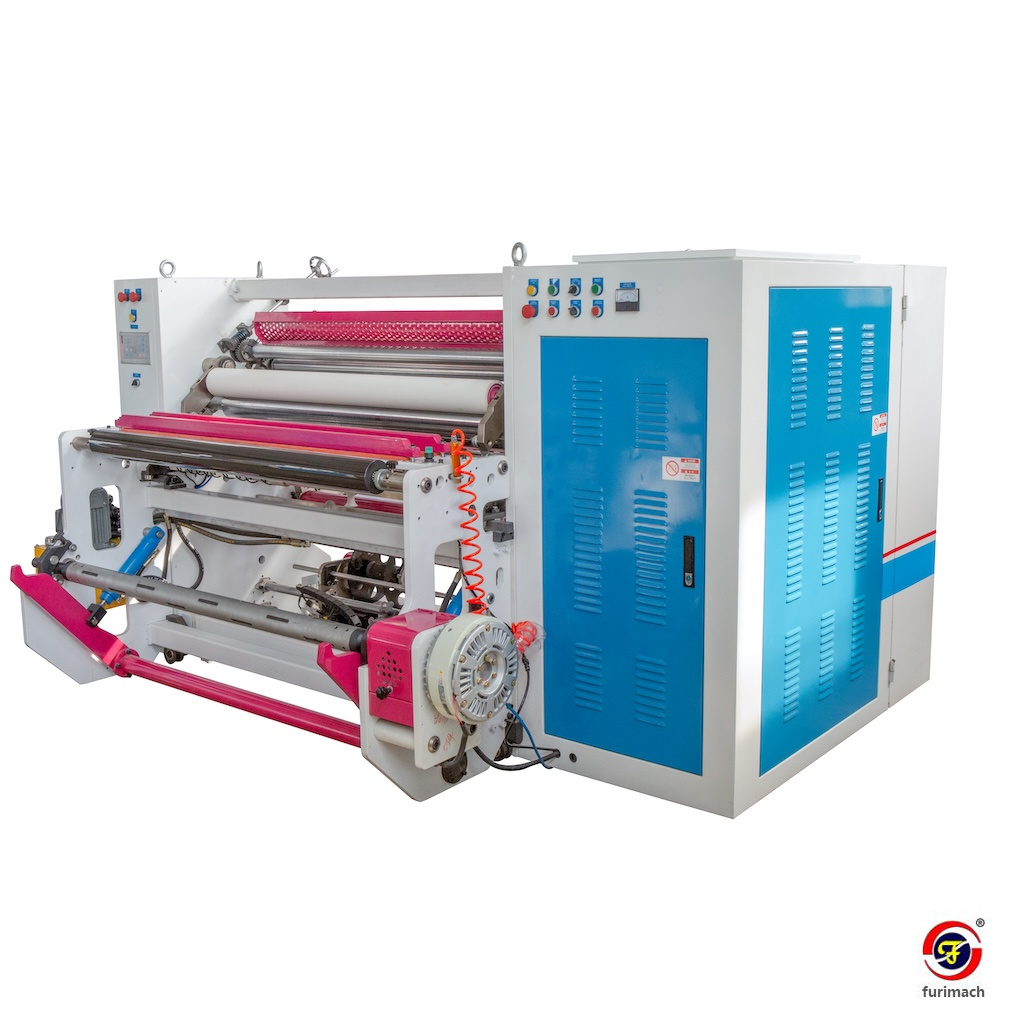

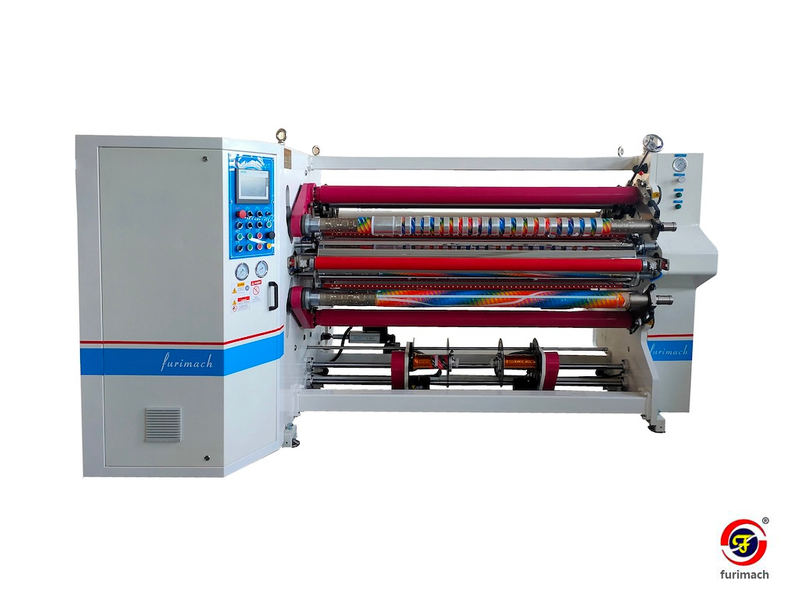

FR-218BF
Furimach
84411000
Feature
1. The machine adopts three-motor connective control with high speed, stable tension and nice looking products.
2. It's equipped with tension detecting device with PLC auto constant tension control system.
3. The rewind press roller system adopts combined device of discontinuous movement and air pressure auxiliary control to ensure minimum distance between press roller and products, and also to ensure different materials converting.
4. The rewind system can be changed easily from air shaft to differential shaft.
5. It's equipped with infrared ray auxiliary paper core position device to save time (optional).
6. It's equipped with finished products fast unloading rack (optional).
7. Waste collect system can choose left-right moveable servo driven surface spool winder.
8. Slitting blade can use air blade, shear blade, razor blade for different material slitting.
9. The unwind system has EPC/LPC device, hydraulic type jumbo roll uplifting device and material receiving platform (optional).
10. The unwind system can choose shaft/shaftless connective type, shaft/shaftless separate system (customize according to the materials converting needs).
Main Technical Parameters
| Machine width | 1.3M/1.6M |
| Min. slitting width | 20mm |
| Max. unwind diameter | 800mm |
| Max. rewind diameter | 450mm |
| Max. machinery speed | 200M/min |
| Paper core I.D. | 3/6" |
| Power source | 380V 3P 50HZ |
| Air source | 0.6 MPa |
Application

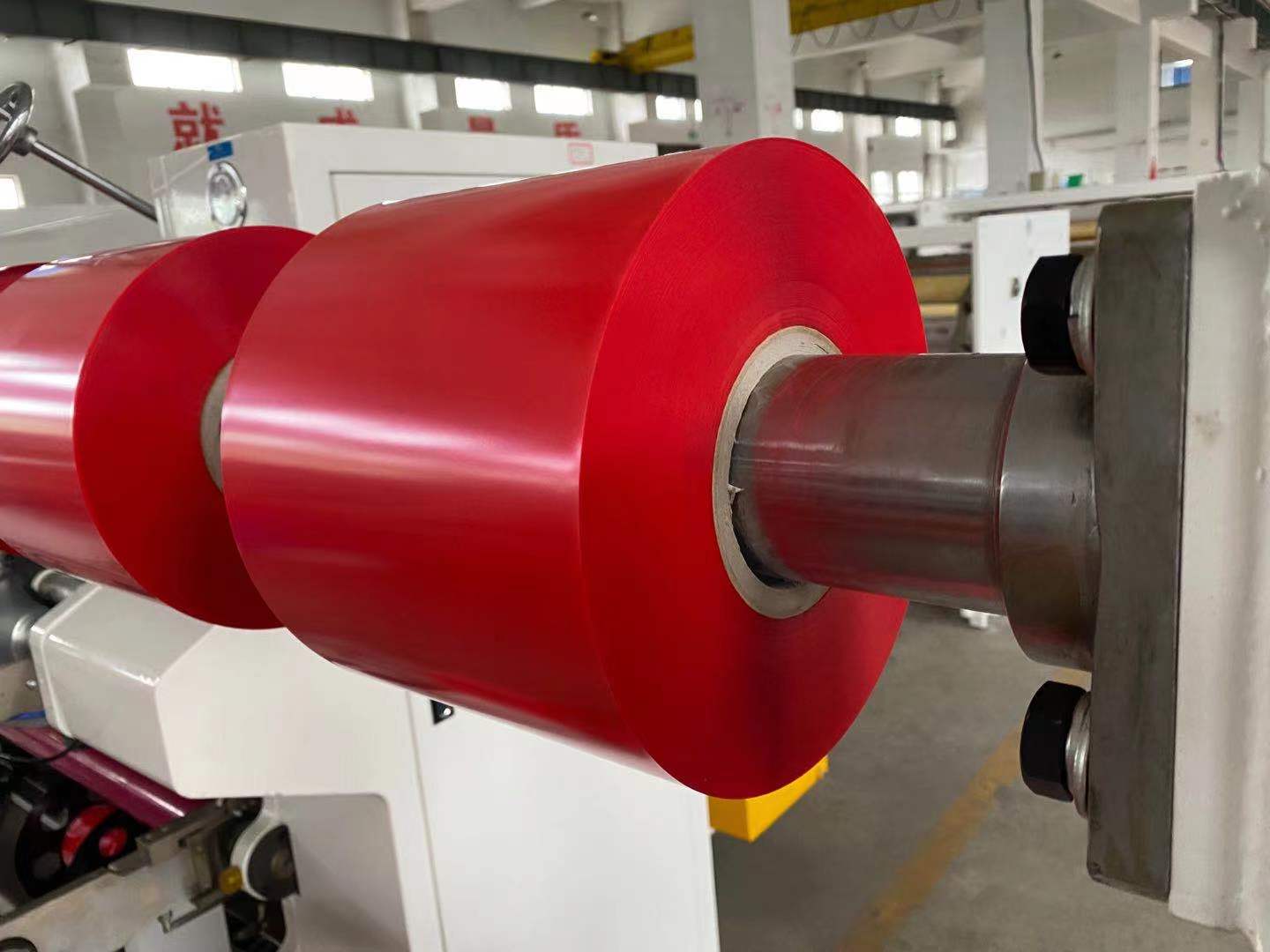

Plastic Film Slitting:

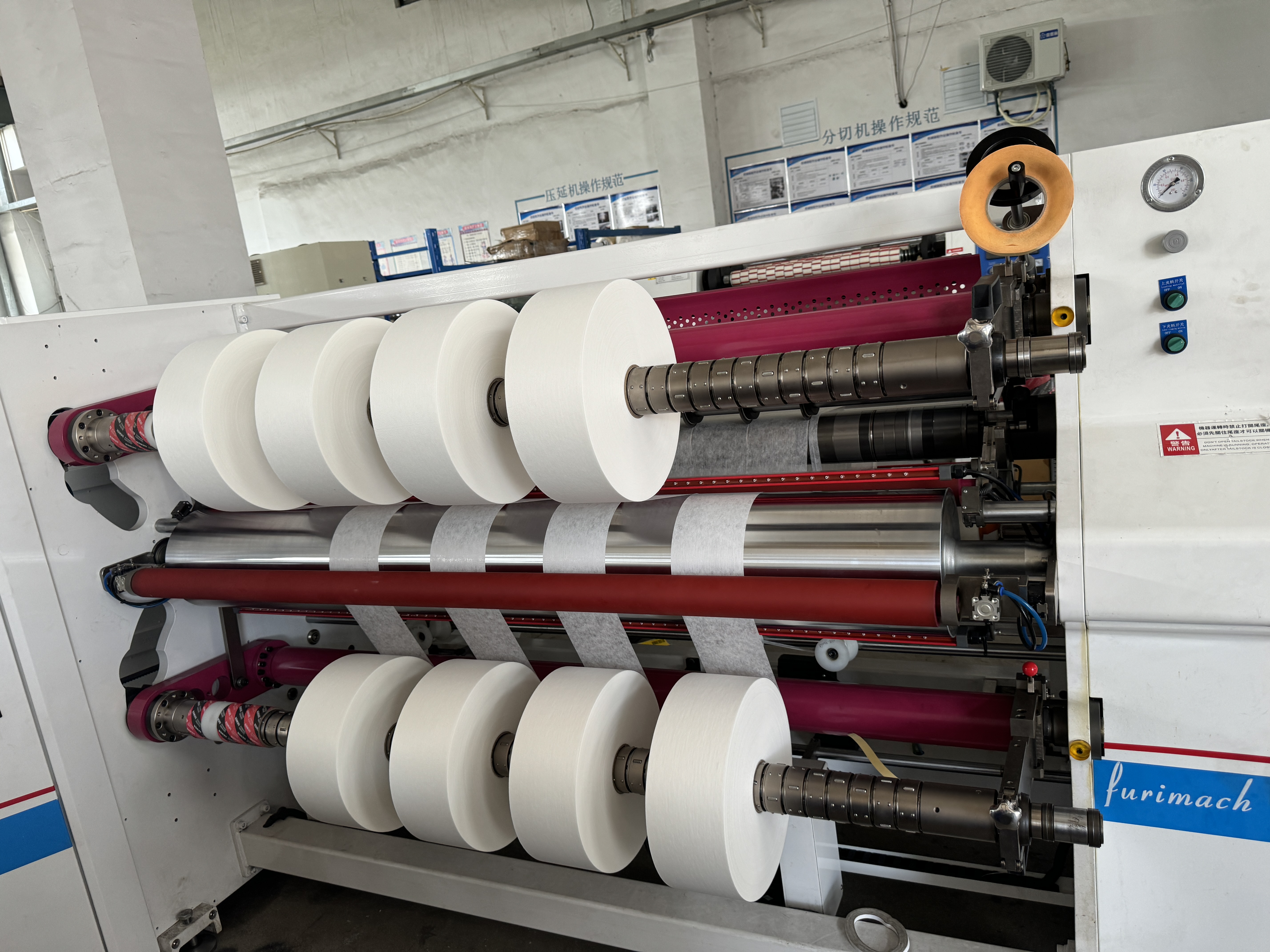

Nonwoven Slitting:
BOPP Film Slitting

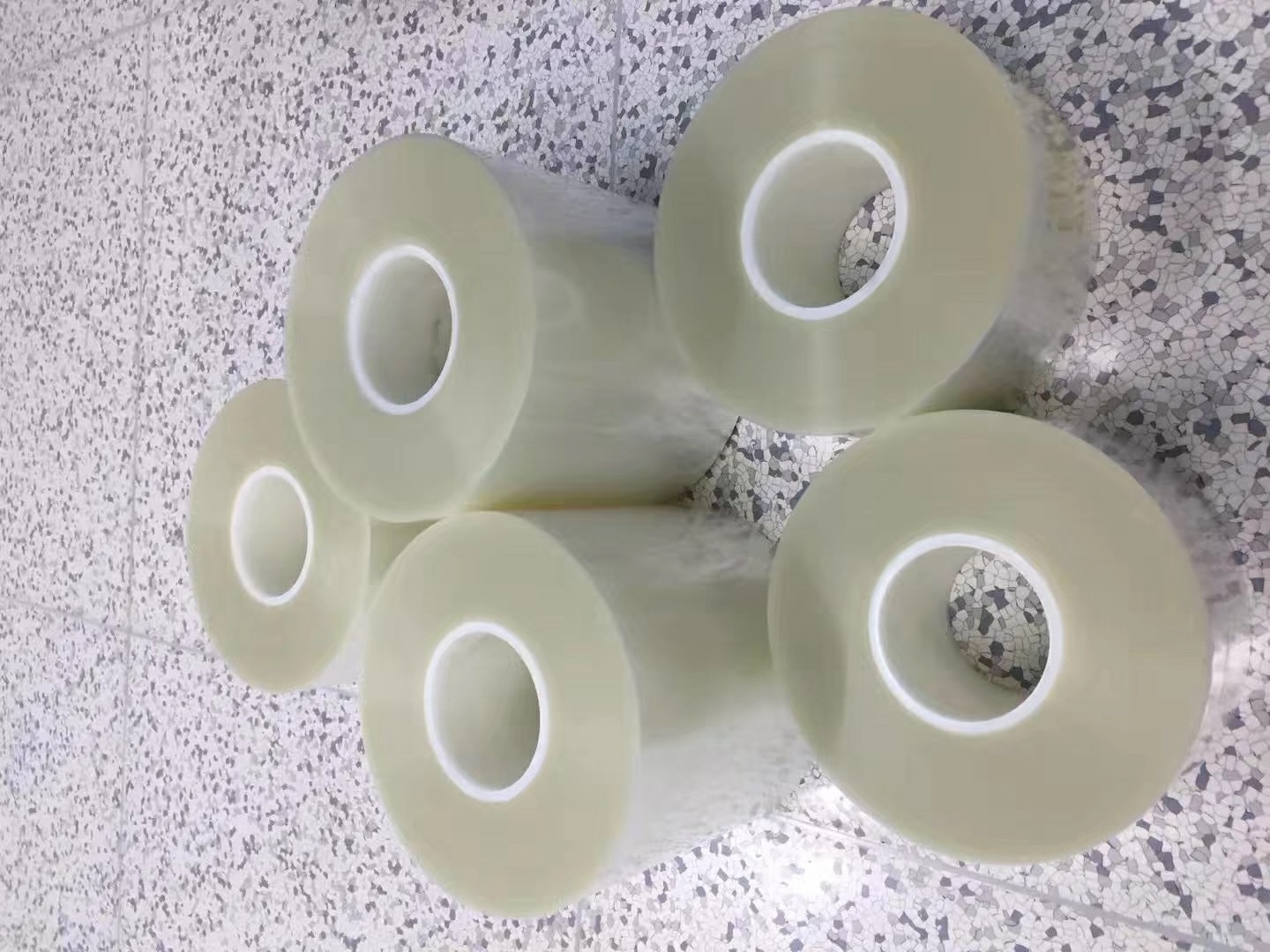

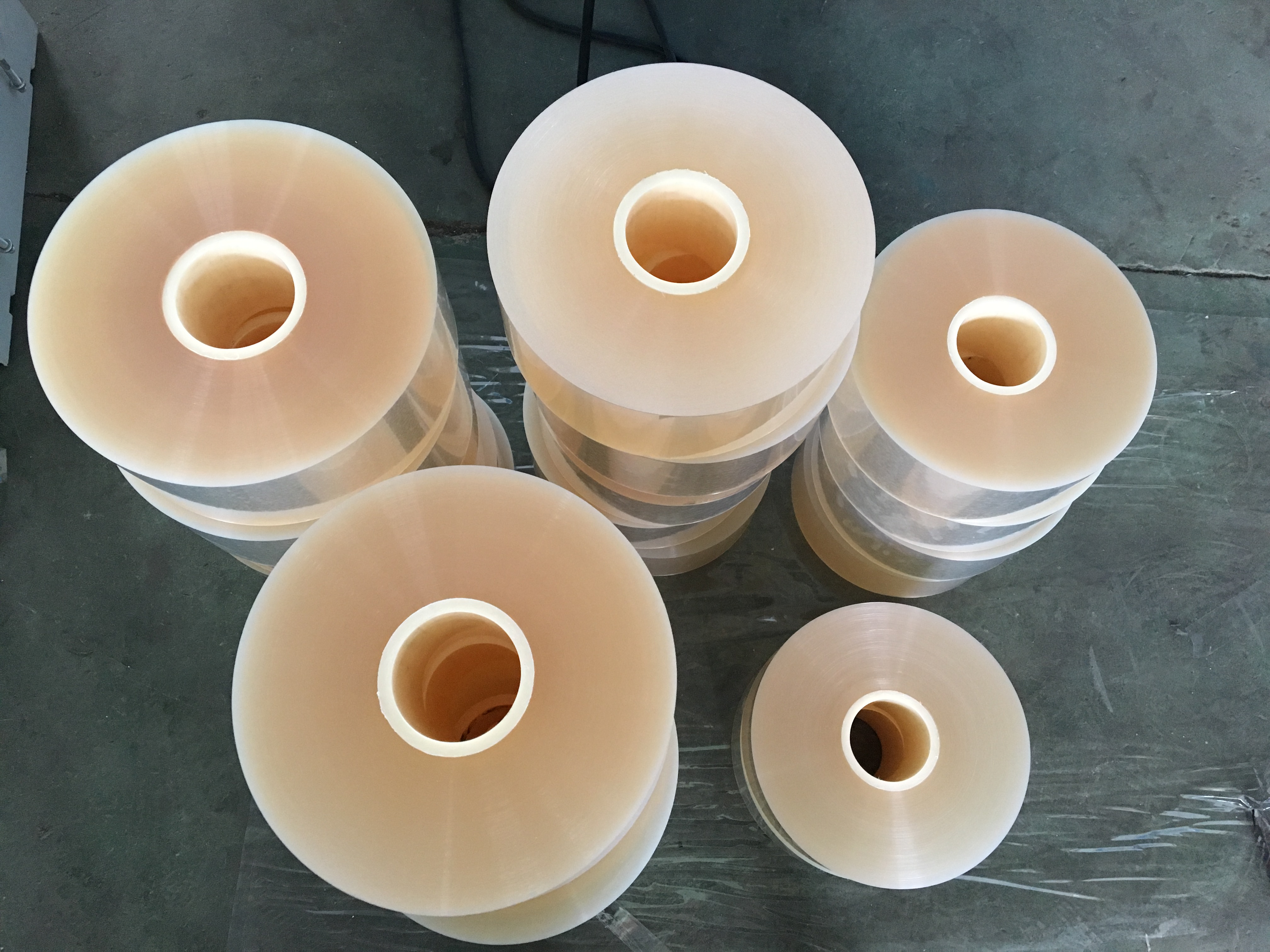

Polyester Film Slitting

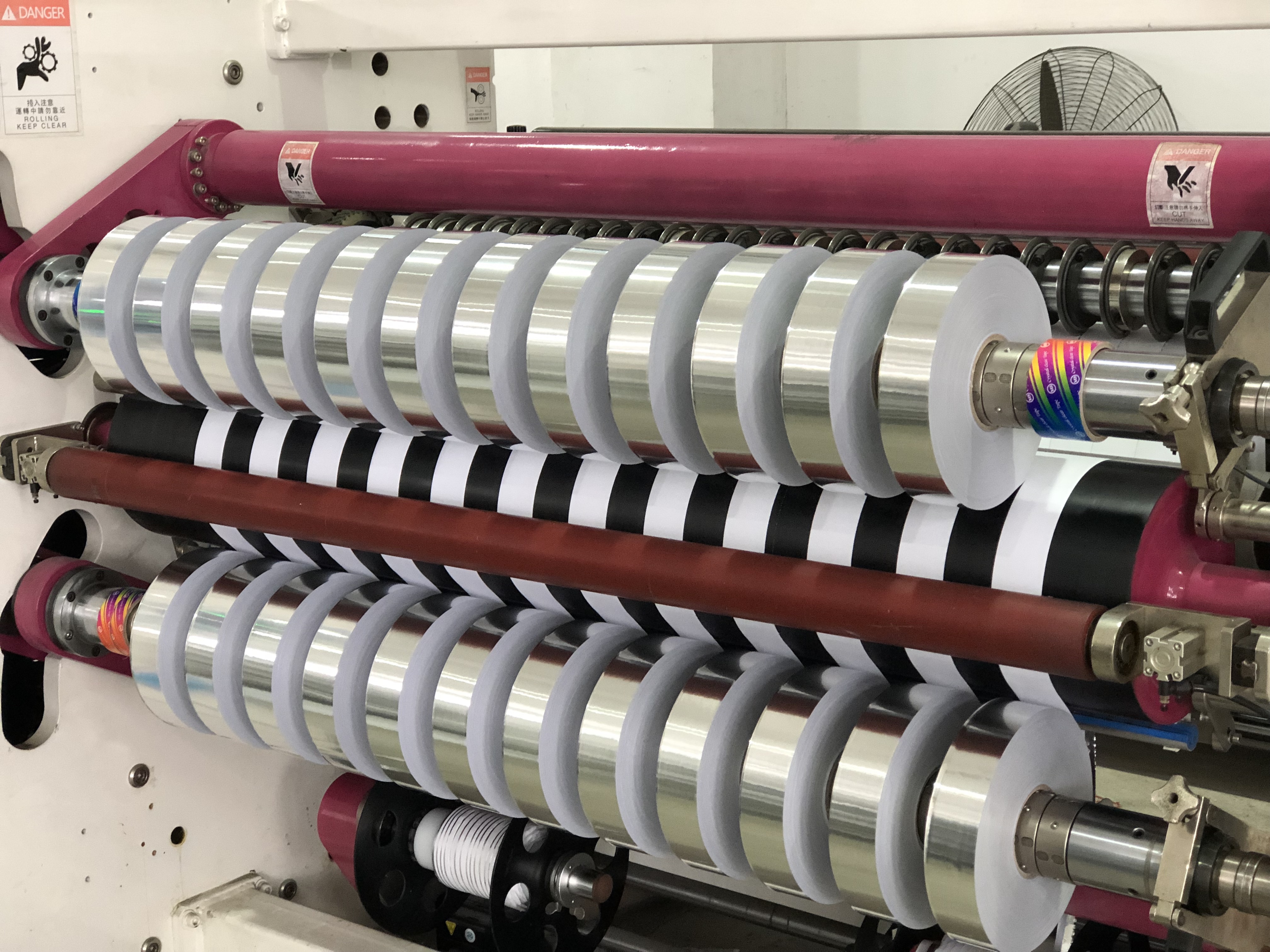

Aluminum Foil Tape Slitting
Slitting Tools (Optional):

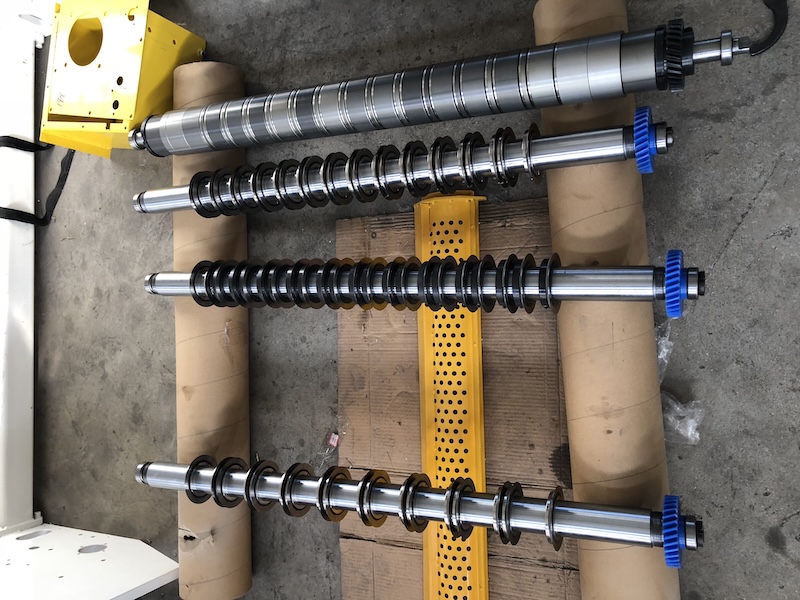

Shear Blade

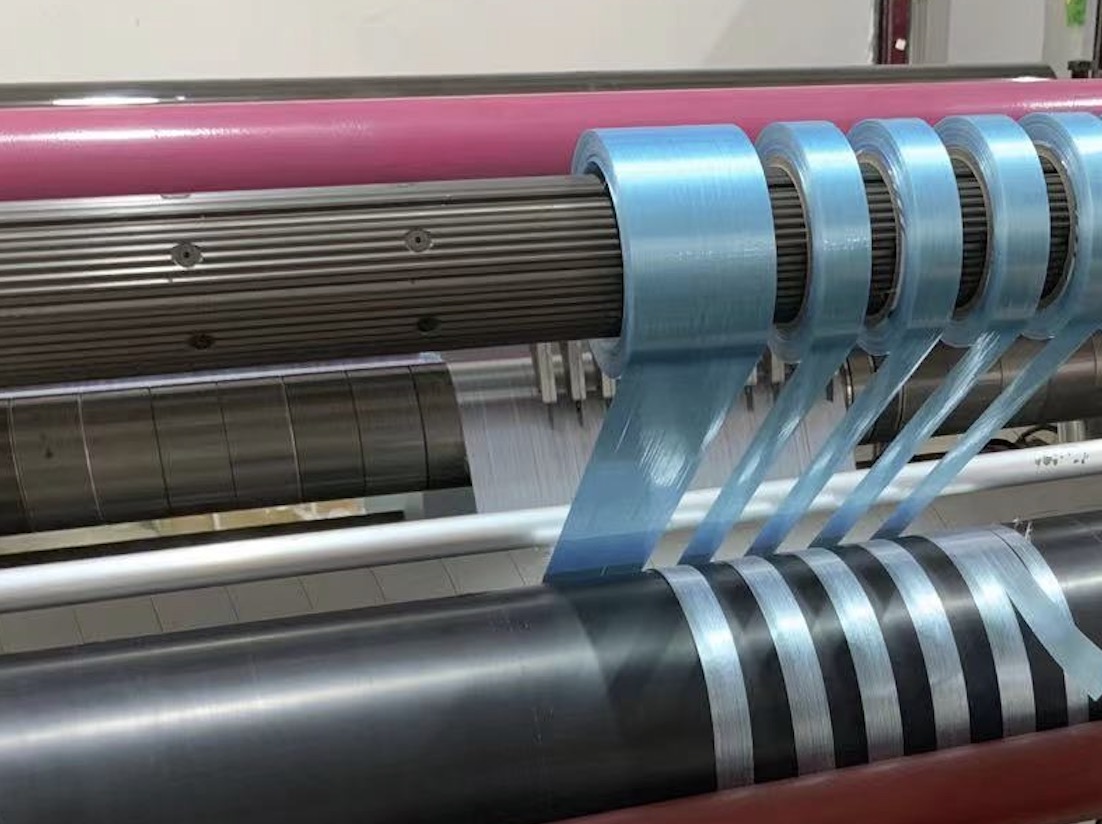

Razor Blade:

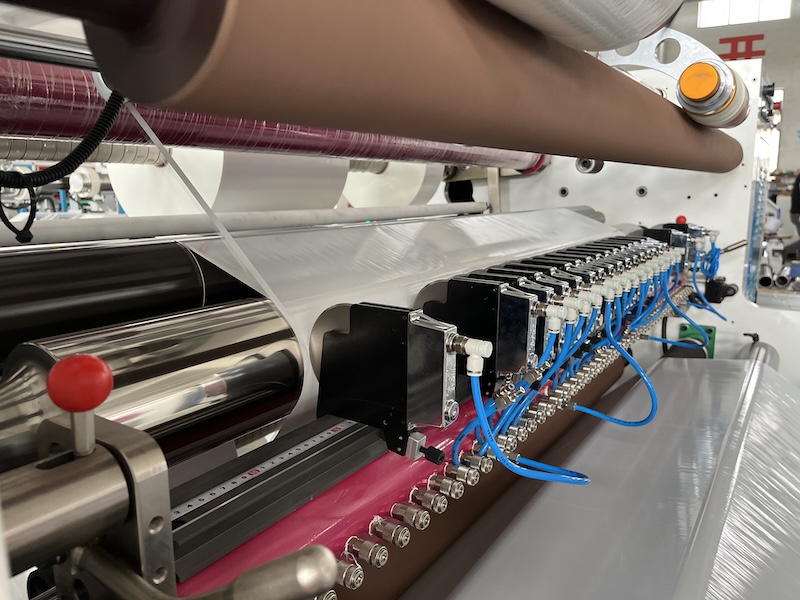

Air Blade

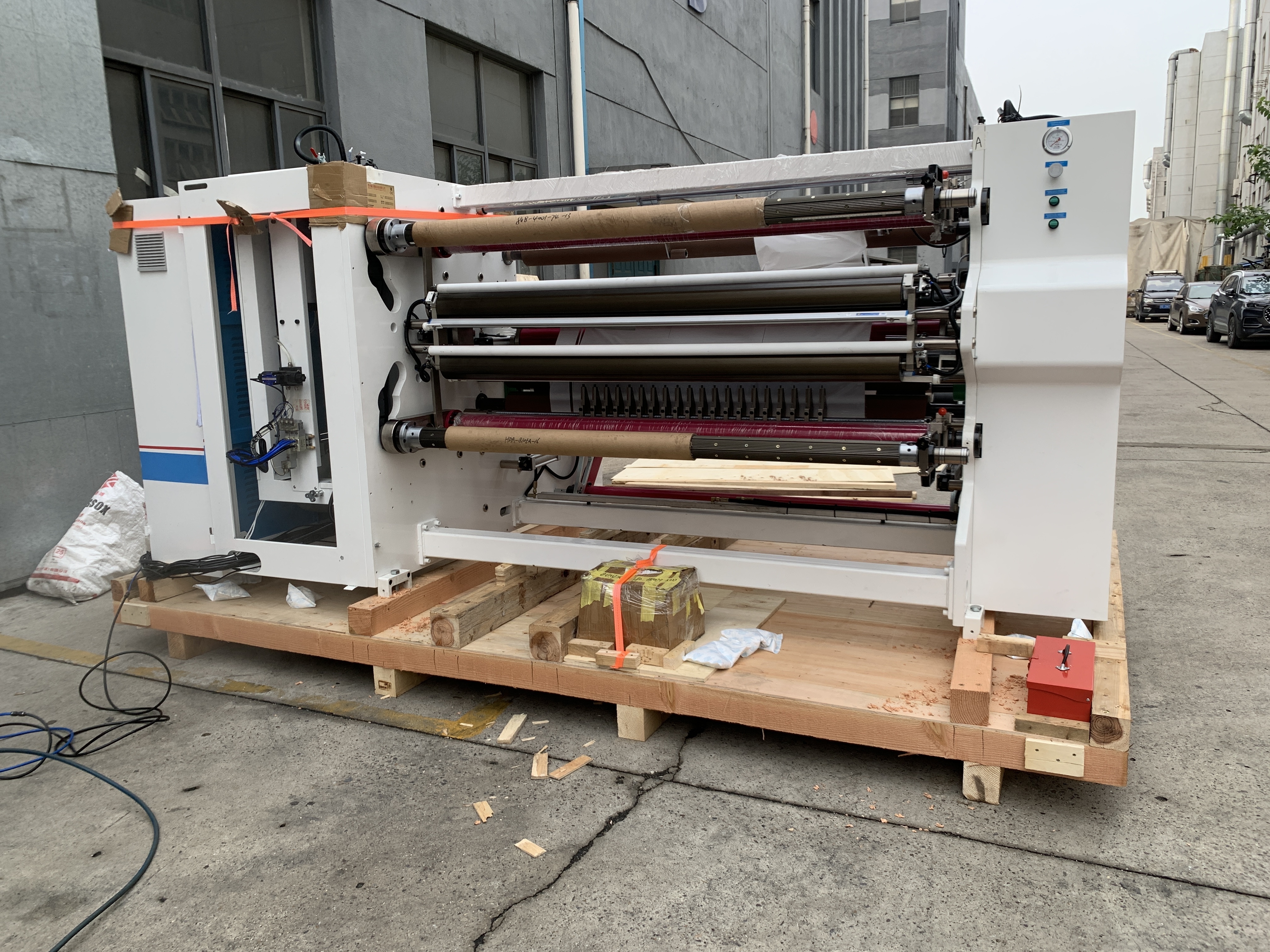

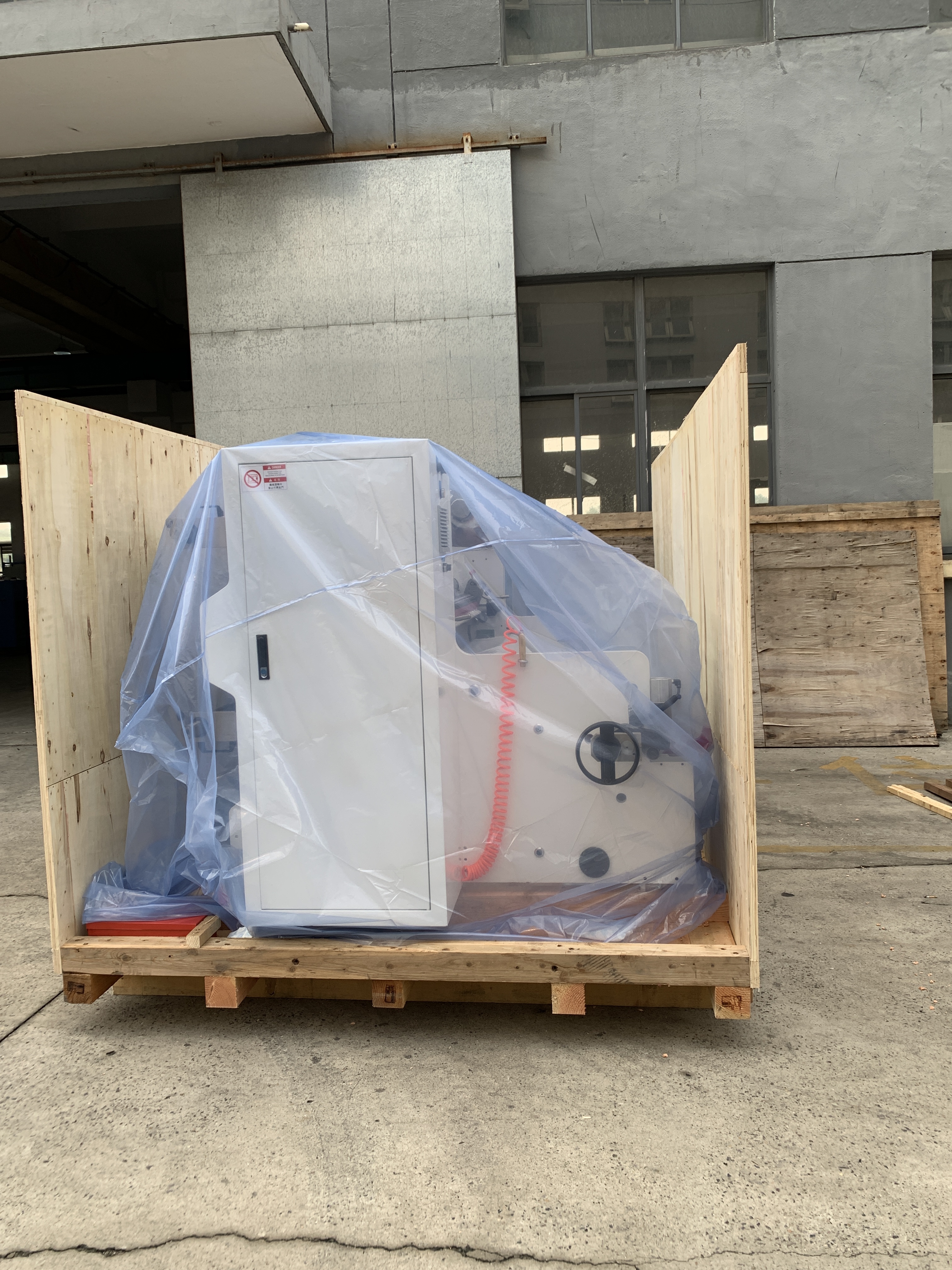

Maching Packaging & Delivery
BOPP Film Slitting Rewinding Video:

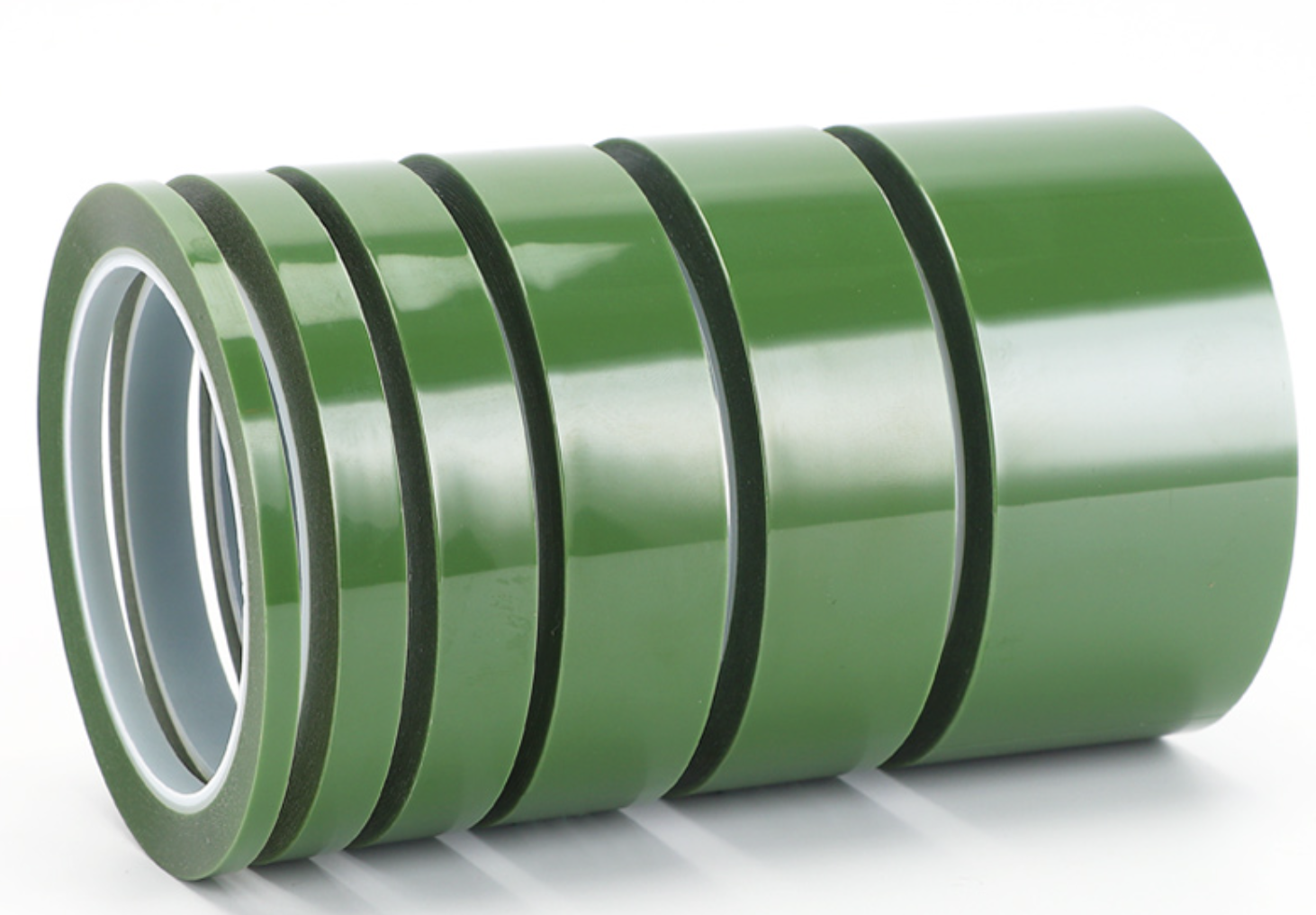

PET Silicone Green Tape Slitting Video:
Protective Film Slitting with Peeling Function Video:
How to Install the Shear Blades:
