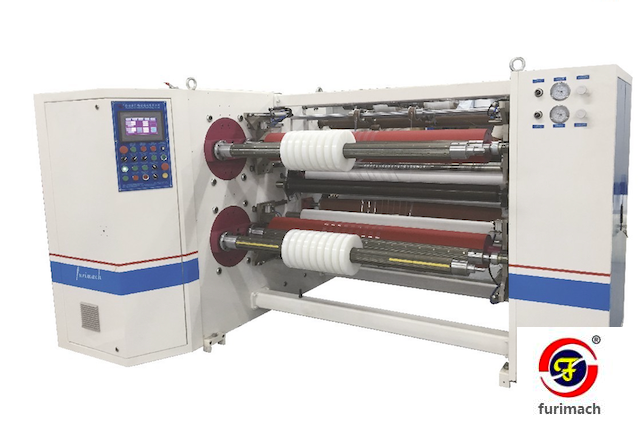

Feature
1. Unwindder adopts powder brake control system for stable tension control

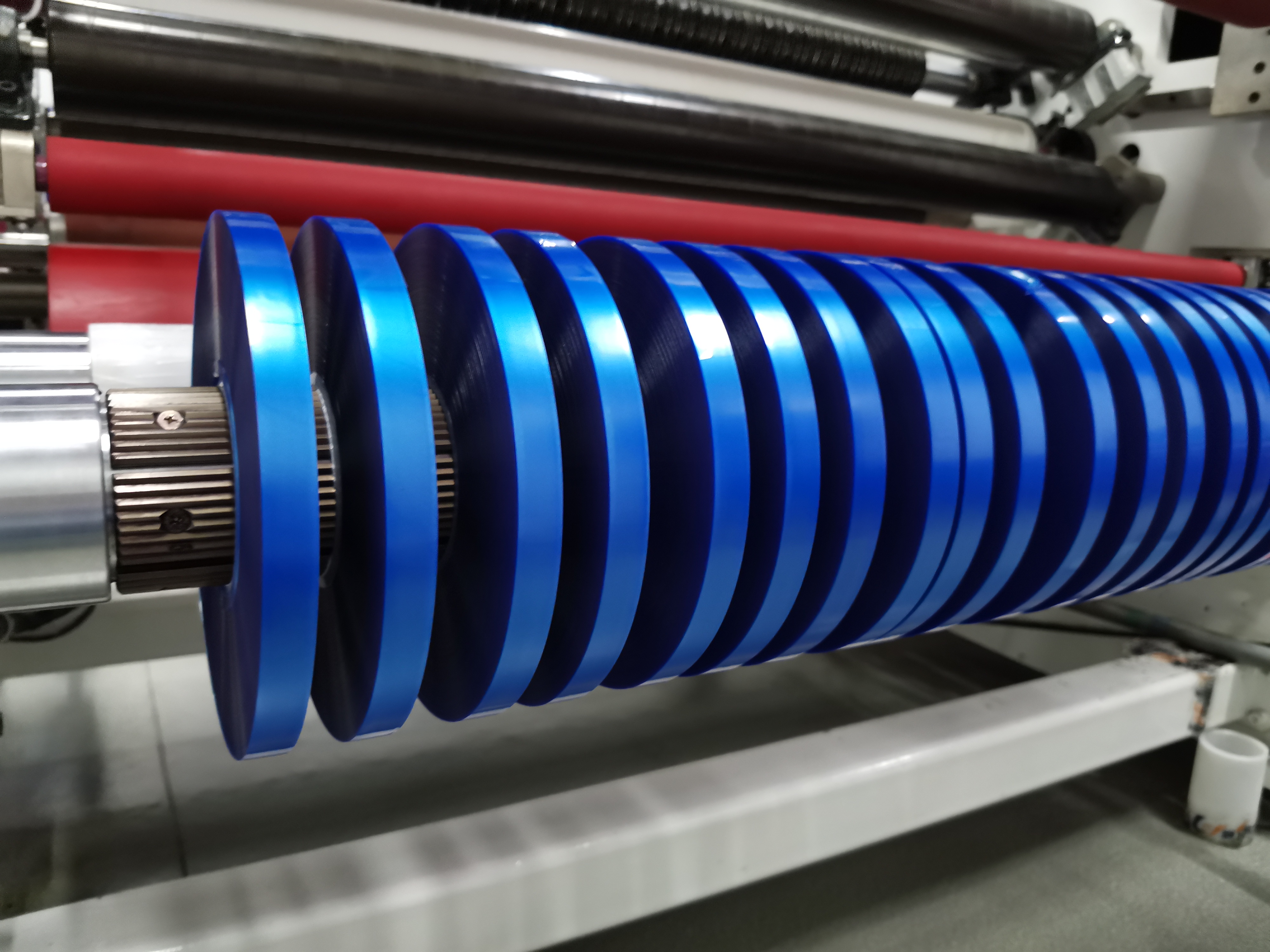

2. Turet exchange system ensures quick and efficient roll changes.
3. Rewinder unit utilizes 3” leaf type air shafts.
4. Edge trimming surface type spool trim winder devices.
5. Tension Control: The entire machine is equipped with a constant tension control system for uniform material handling.
6. Unwind unit adopts motor driving; feeding speed is controlled by floating roller. Low friction cylinder controls floating roller tension to ensure unwind tension is constant.

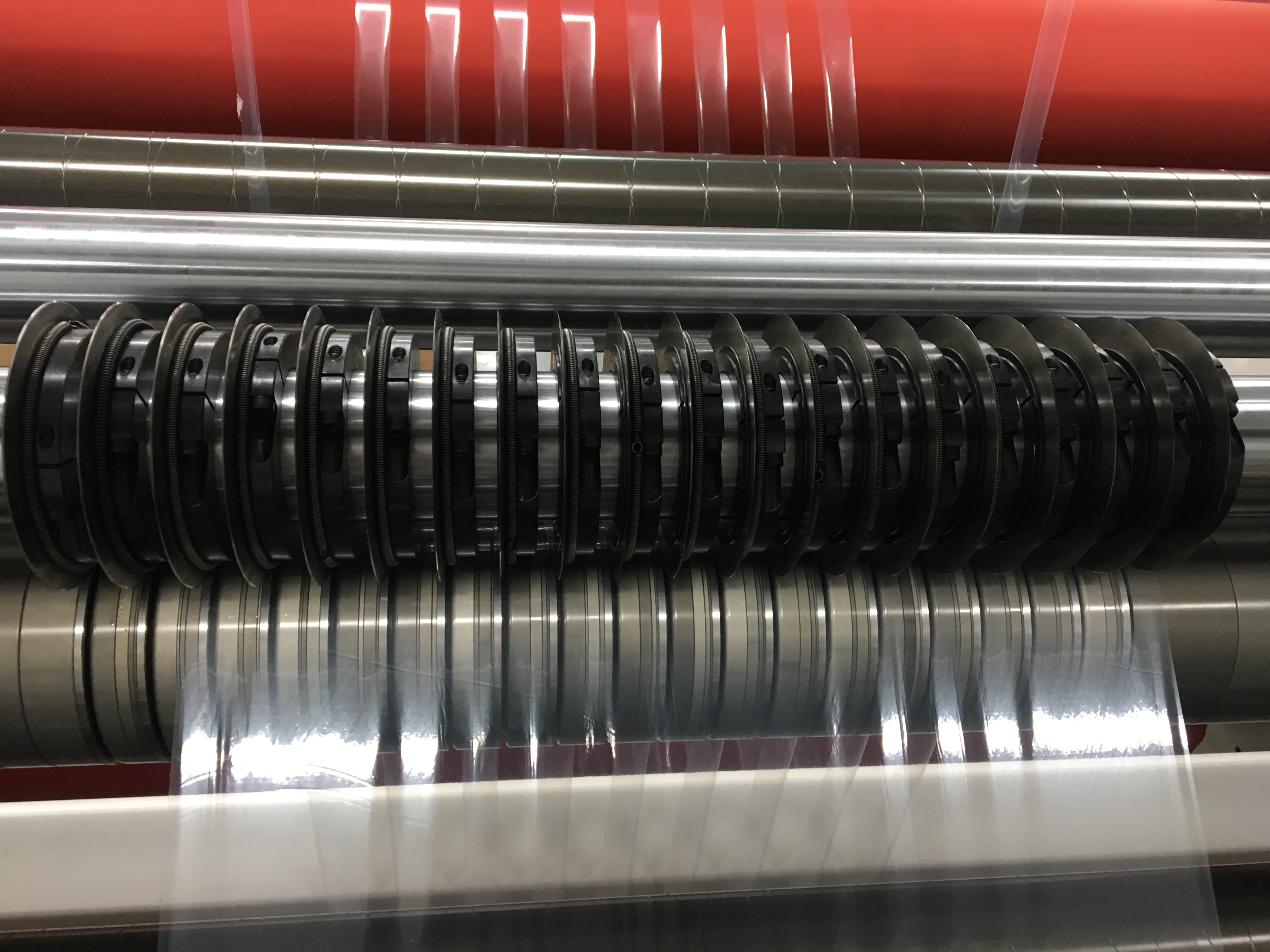

7. Shear blade slitting tools (moveable top shear blade)
8. Machine is integrated with Japan Mitsubishi PLC auto constant tension control system.

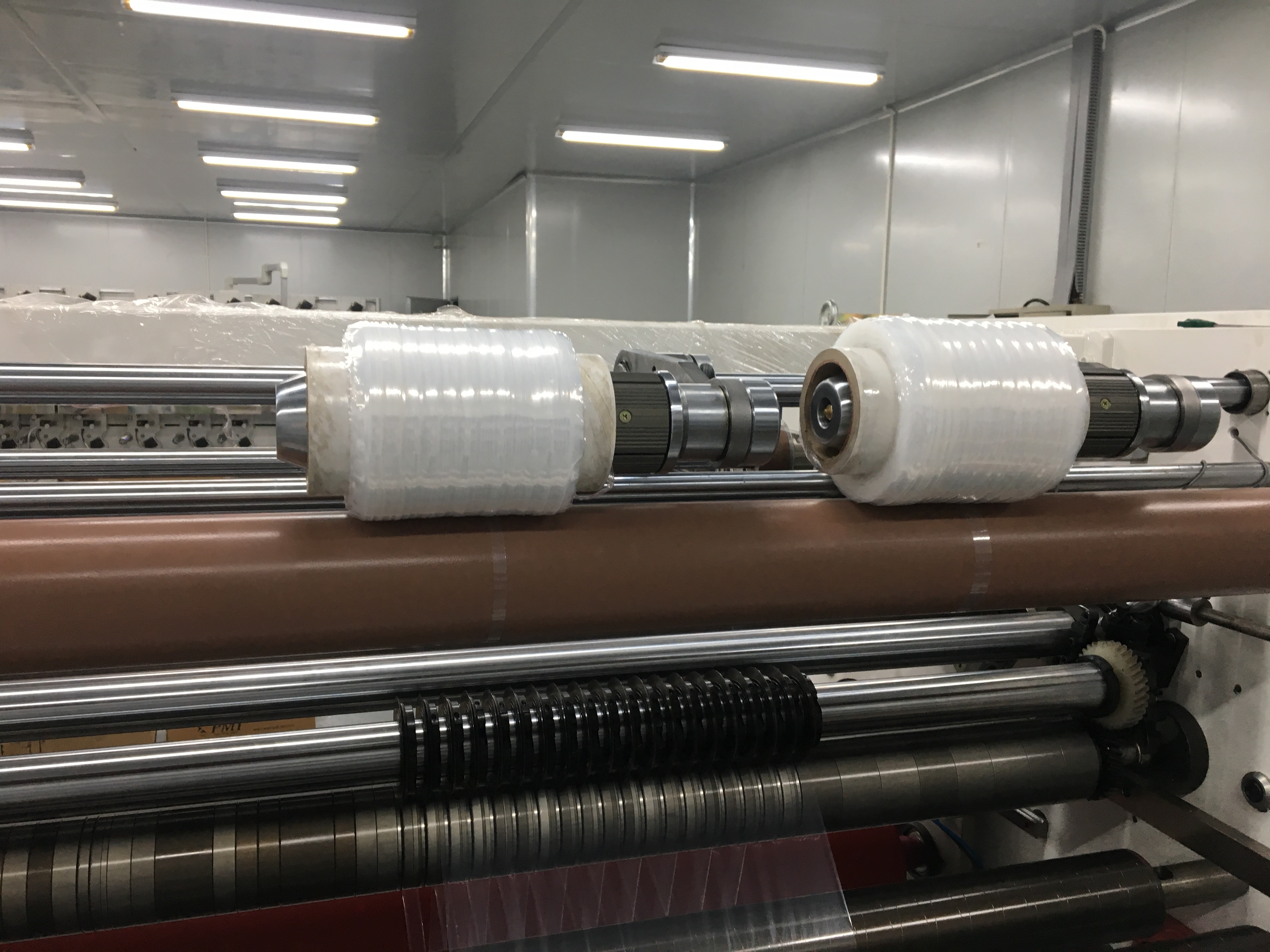

9. Rewind unit adopts four shafts turret exchange system to minimize downtime and material waste.
10. Machine adopts surface type passive rewinding and rubber roller pressure is adjusted by precision regulator. It’s by constant tension control without bubble or wrinkles.
Optional Items
Jumbo Roll Uplifter Device: Hydraulic type lifter for efficient operation, saving both time and labor costs.
Finished Reel Unloader: Simple type unloader rack for handling finsihed reels.

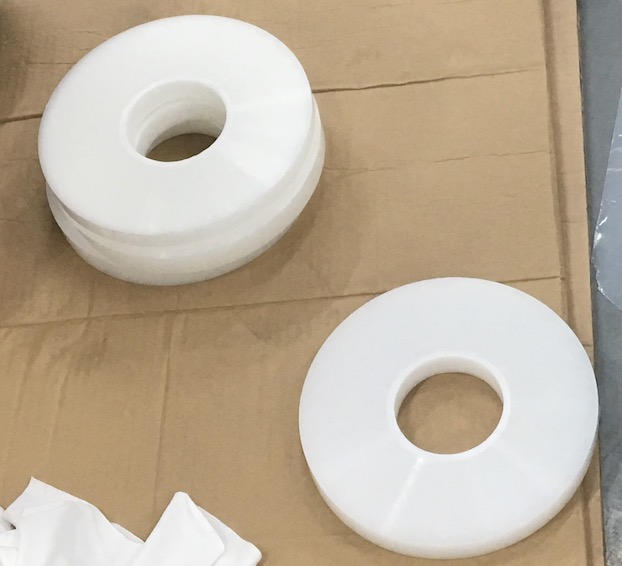

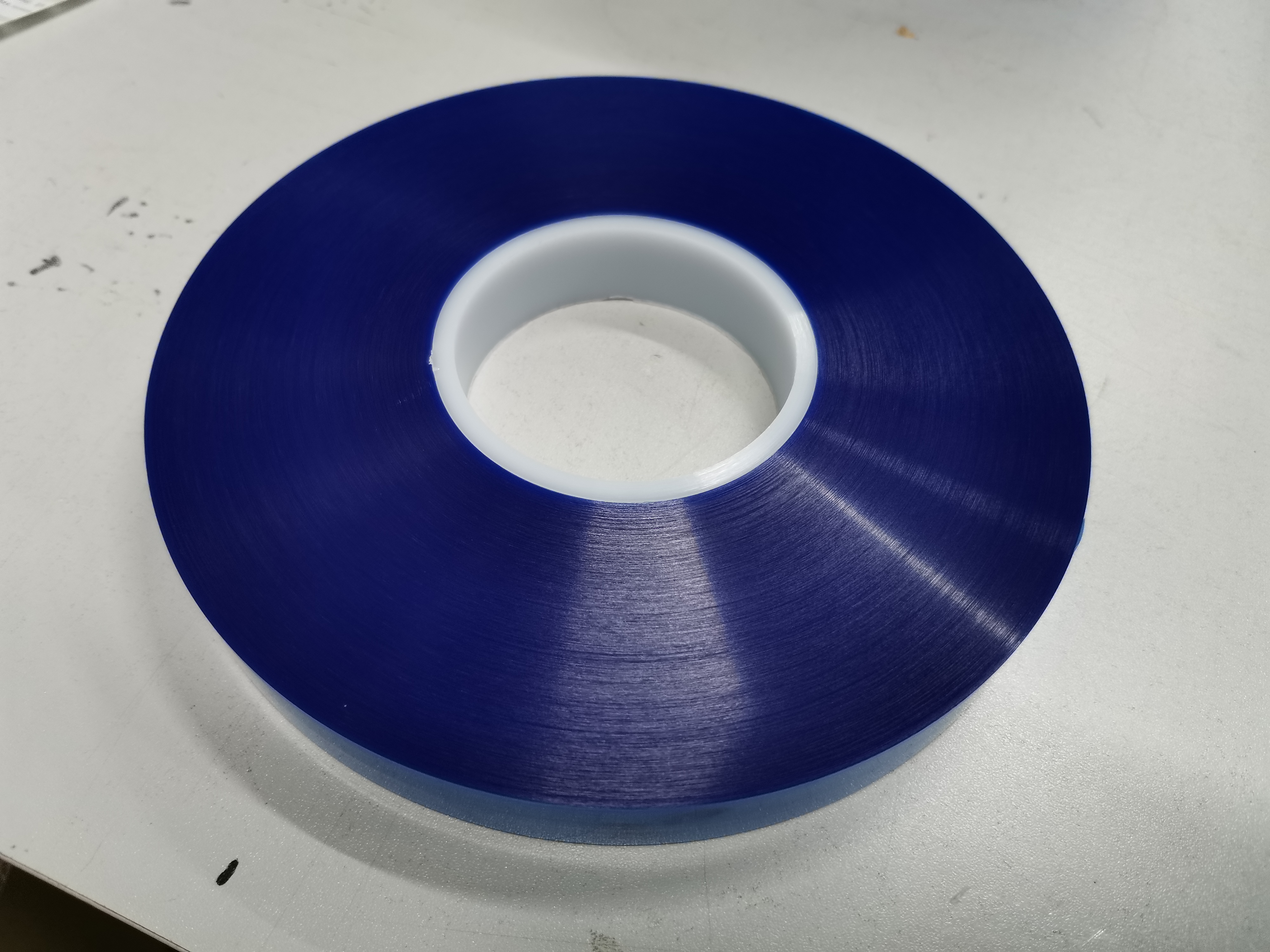

Application
Technical Parameters
Max. rewind O.D. | 300mm | Machine width | 1.3M/1.6M |
Max. unwind O.D. | 600mm | Core I.D. | 3 "/6" |
Min. slitting width | 20mm | Machine max.speed | 100M/Min |
Air source | 0.6 MPa | Power source | 380V 3P 50HZ |
