Feature
1. Unwinder: shaftless unwinder system. Powder brake tension control.
2. Web Guiding: The foam slitting machine features an advanced automatic web guiding system that continuously monitors and adjusts the material alignment. This system helps correct misalignment from uneven jumbo rolls, minimizing material waste and improving cutting precision.
4. Rewind Shaft: Differential shafts winding, optional: air shaft winding.
5. Core Positioning (Optional): Infrared marking system available for quick paper core positioning.
6. Overhead Web Path: Overhead web path design for easy material splicing, blade assembly, and cleanliness—preventing debris from falling onto finished products.
7. Automated Unloading: To reduce manual handling and improve operational efficiency, the machine includes an automatic finished-reel pusher. This system help to transfer rewind finished rolls onto the unloader arm, ensuring smooth and safe unloading of the final products.
8. Slitting blades: shear blades, pneumatic slitting blades (optional).
Main Technical Parameters
Machine width | 1.3M | 1.6M |
Min. slitting width | 50mm | 50mm |
Max. unwind diameter | 1200mm | 1200mm |
Max. rewind diameter | 950mm | 950mm |
Working. speed | 200m/min; 500m/min | 200m/min |
Paper core I.D. | 3 "/6 " | 3 "/6 " |
Power source | 380V 50HZ 3P | 380V 50HZ 3P |
Air source | 0.6 MPa | 0.6MPa |
FAQ
1. What types of foam can the slitting machine process?
Our Foam Slitting Machine is designed to process a wide variety of foam materials, including PE foam, XPE foam, IXPE foam, and other foam types. Whether you're working with soft, medium, or high-density foams, this machine delivers excellent results. Please reach out to our sales team with your product specifications, including thickness, jumbo roll width, unwind/rewind diameter, and minimum slitting width. This will help us better understand your requirements and provide you with a prompt and accurate quote.
2. What is the maximum roll size that the machine can handle?
The machine can handle large jumbo rolls, with maximum roll sizes varying depending on the model.
3. What are the differences between shear blades and pneumatic slitting blades?
Shear blades: Typically used for precise slitting of thin foam materials, offering clean and sharp cuts. Pneumatic slitting blades (optional): These blades are ideal for cutting thicker and denser foam materials. The pneumatic system allows for more controlled pressure and a higher level of precision when cutting tougher materials.

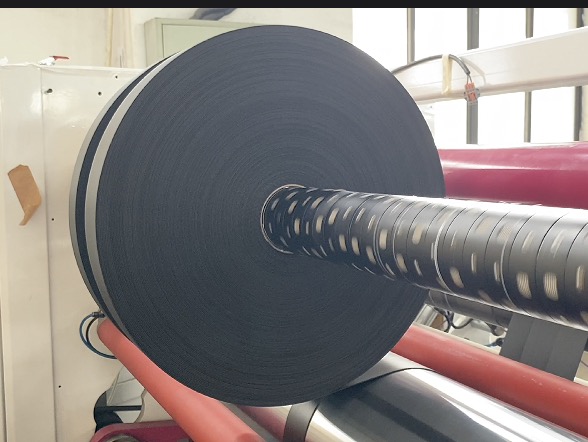

4. What is the benefit of using the differential rewind shaft?
The differential rewind shaft improves winding efficiency and ensures that foam rolls are wound evenly. This system allows for better tension control and uniform roll diameter, resulting in higher-quality finished products.
5. What warranty and support services are provided with the machine?
We offer a comprehensive warranty for our Foam/XPE Foam Slitting Machine. Additionally, our team provides ongoing technical support and training to ensure that your machine operates smoothly.
6. Do you offer installation services?
Yes, we offer installation and commissioning services to ensure that your machine is set up properly and running efficiently. Our technical team will assist with the installation, calibration, and training on machine operation.
