Feature
1.The simple slitter drive unit adopts two-motor connective control with stable tension and nice-looking products.
2.It adopts roll pressing type driving device to prevent slippery between material and main driving roll so that tension is more stable.

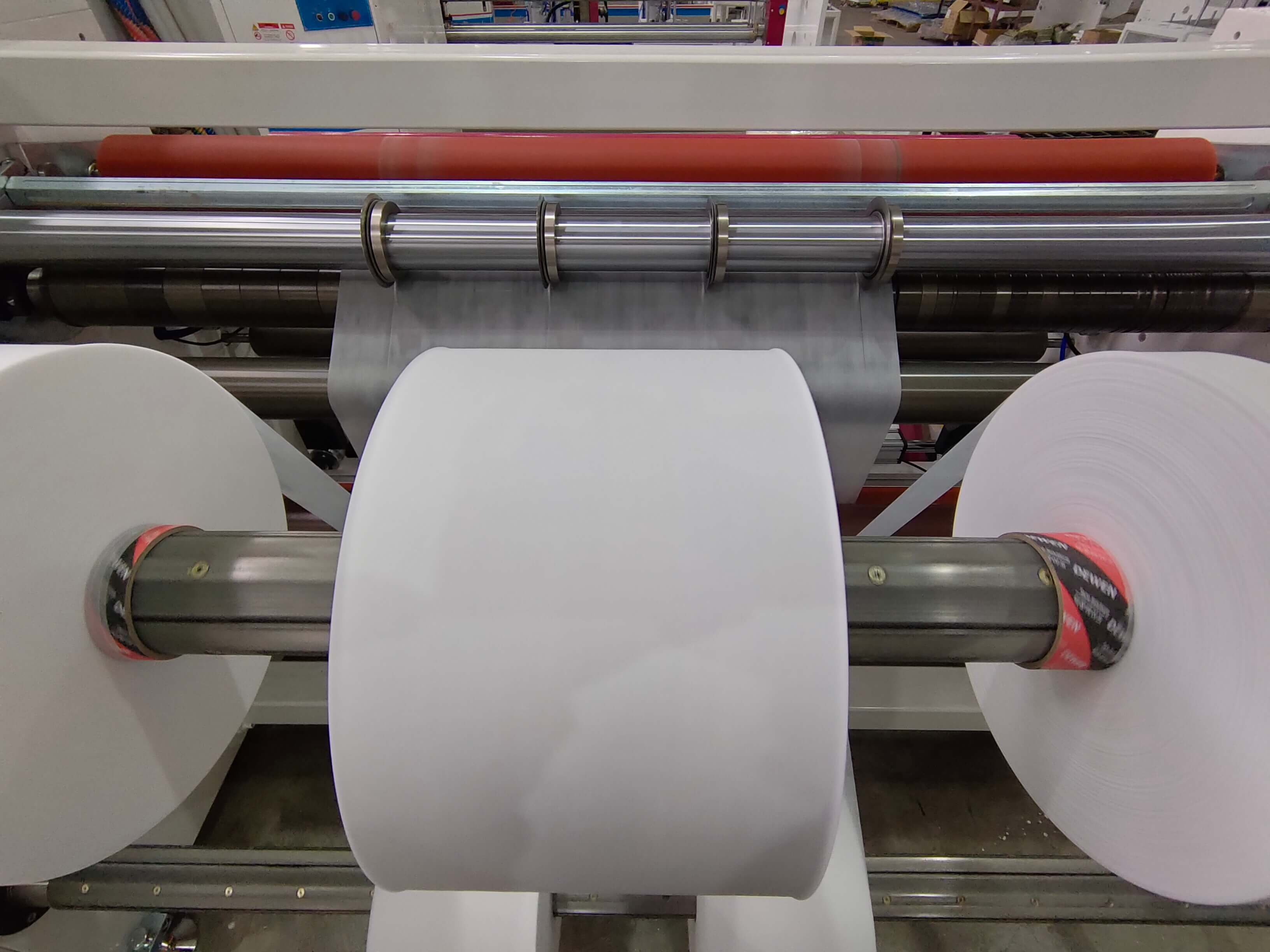

3. The rewind system is equipped with air shaft.
4.Waste collection system adopts blowing type

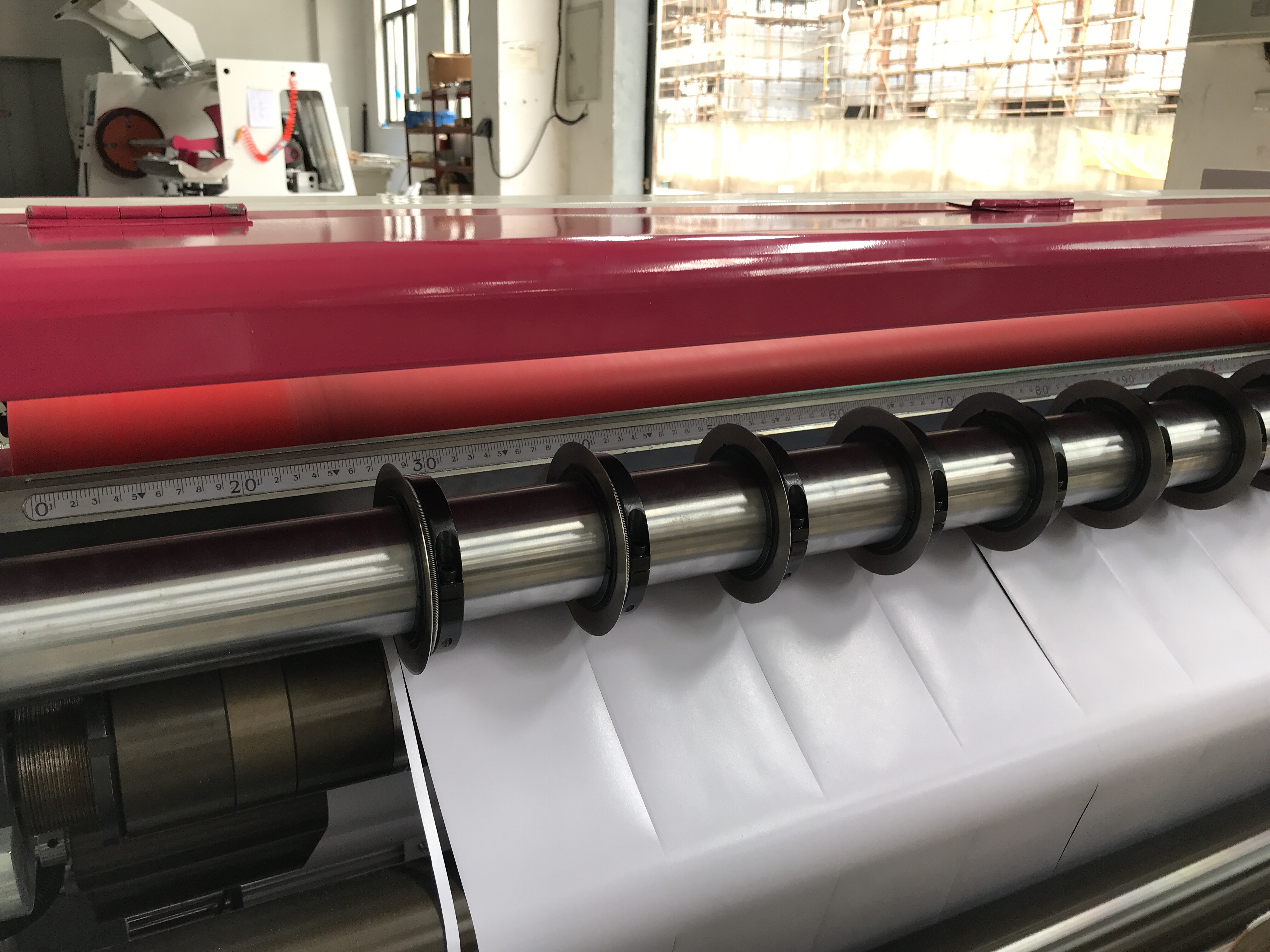

5. Slitting blade can use shear blade, razor blade for different material slitting.
6. The unwind system has EPC/LPC device, hydraulic type jumbo roll uplifting device and splice table
7.Unwind system adopts connected structure with shaft to reduce floor area.
Technical Parameters
| Machine width | 1.3M/1.6M |
| Min. slitting width | 25mm |
| Max. unwind diameter | 800mm |
| Max. rewind diameter | 450mm |
| Slitting blade | Shear blade (standard) |
| Slitting blade | Razor blade (optional) |
| Working. speed | 120M/min |
| Paper core I.D. | 3 " |
| Power source | 380V 50HZ 3P |
| Air source | 0.6 MPa |
Machine Working Video
PVC Slitting
Frame Paper Slitting
Meltblow Fabric Slitting
