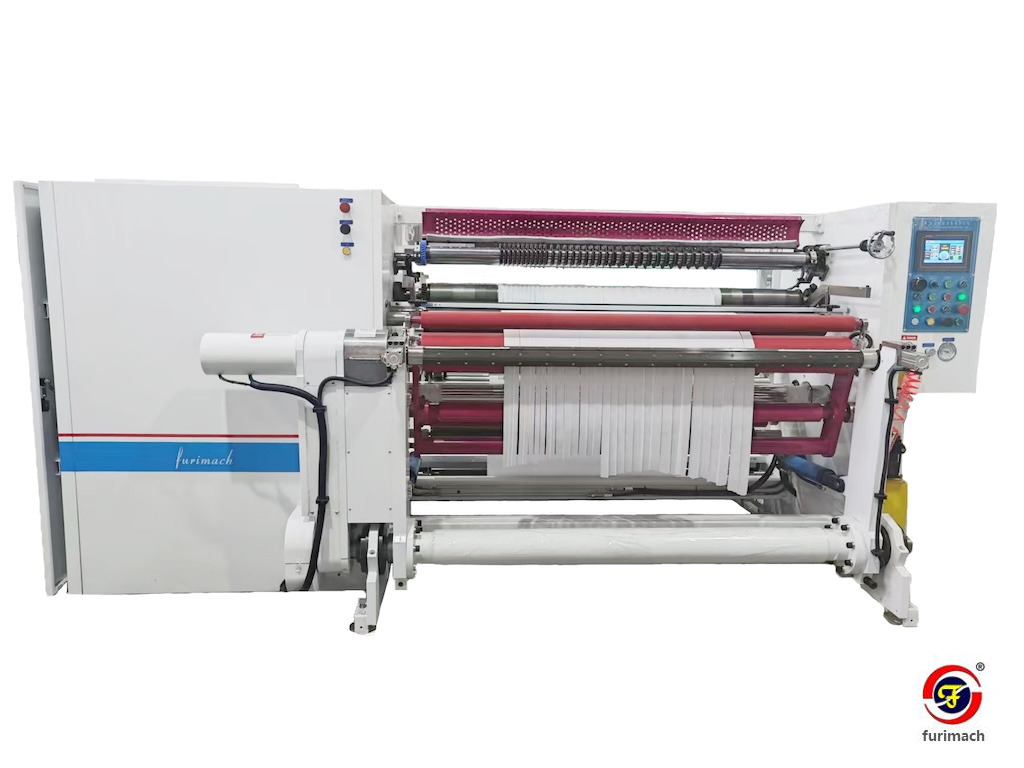

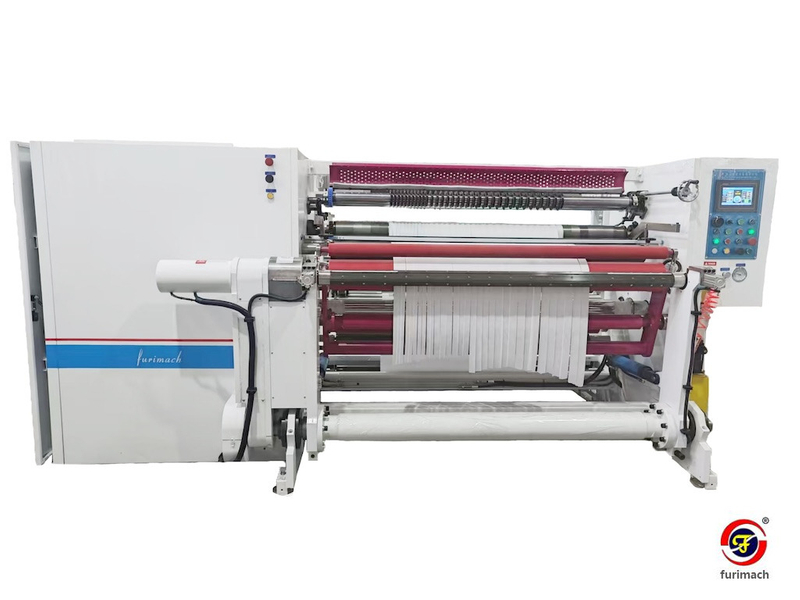

FR-510A Single Shaft Non Woven Fabric Roll to Roll Slitter Rewinder Machine
You are here: Home » Products » Slitter Rewinder Machine » FR-510A Single Shaft Non Woven Fabric Roll to Roll Slitter Rewinder Machine
FR-510A Single Shaft Non Woven Fabric Roll to Roll Slitter Rewinder Machine

loading

FR-510A Single Shaft Non Woven Fabric Roll to Roll Slitter Rewinder Machine FR-510A Single Shaft Non Woven Fabric Roll to Roll Slitter Rewinder Machine

loading

FR-510A Single Shaft Non Woven Fabric Roll to Roll Slitter Rewinder Machine

Availability:
Quantity:
Inquire Add to Basket
Application
Suitable for slitting rewinding composite nonwoven fabrics (thickness 0.1-2.5mm), paper, etc.

  • FR-510A

  • Furimach

  • 84411000

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Product Description

Feature

1. Mitsubishi PLC (Japan) for precise control.

2. Unwind stand: separate unit, compatible with jumbo rolls up to 1200mm

3. Tension control: powder brake system for unwind section

4. Full-machine automatic tension control for consistent operation

5. Rewind system: air shaft winding for easy loading/unloading

6. Waste Removal: trimming waste efficiently removed via fan blowing

7. Splice table include for quick roll connecting

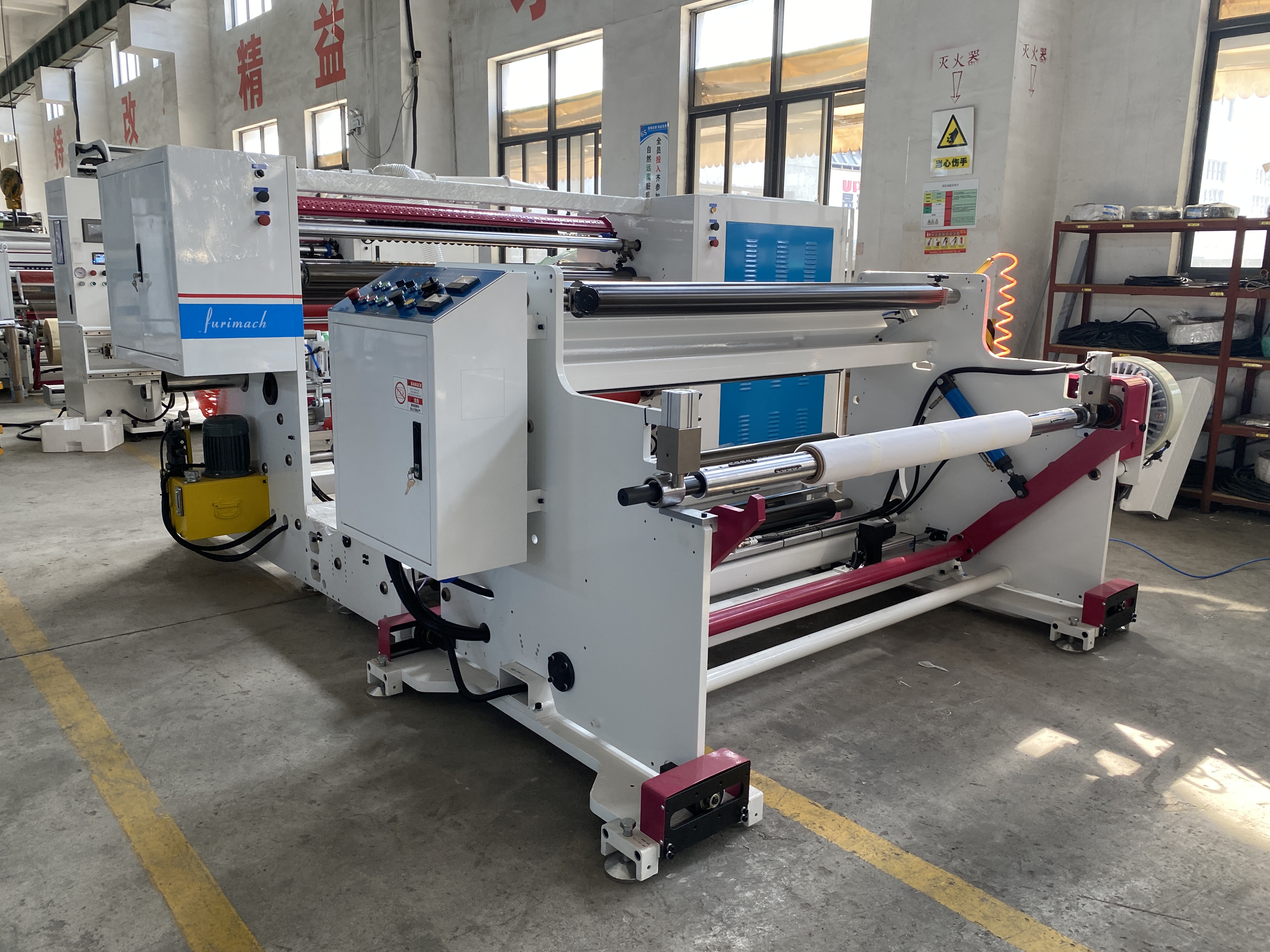

IMG_5186

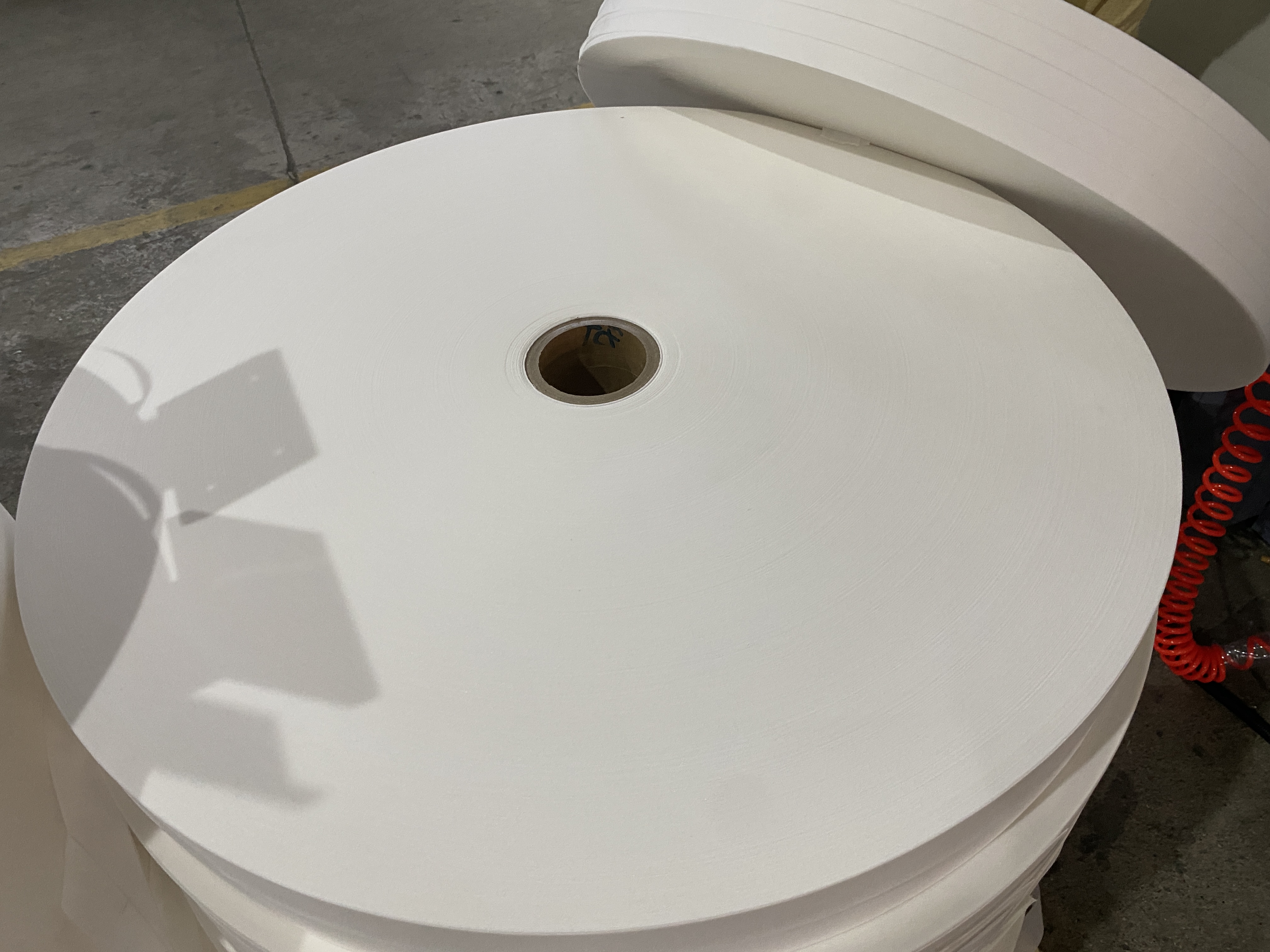

IMG_5197

Technical parameter

Machine width

1.3M/1.6M

Min. slitting width

20mm

Max. unwind diameter

1200mm

Max. rewind diameter

1200mm

Unwind brake

Powder brake control

Max. working speed

160M/min

Paper core I.D.

3"

Tension control

Automatic control

Slitting blade

Shear blades

Web guiding control

Electric servo type auto edge control

Power source

380V 3P 50HZ

Air source

0.6 MPa
