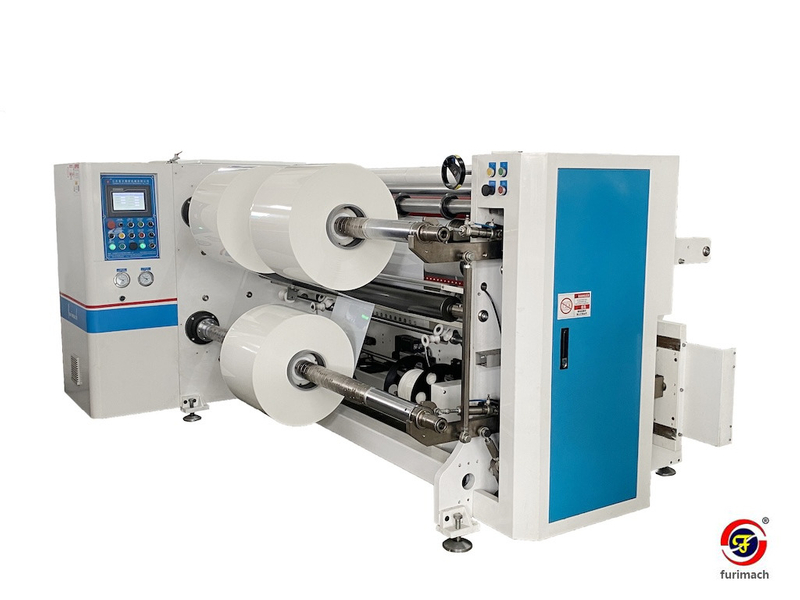

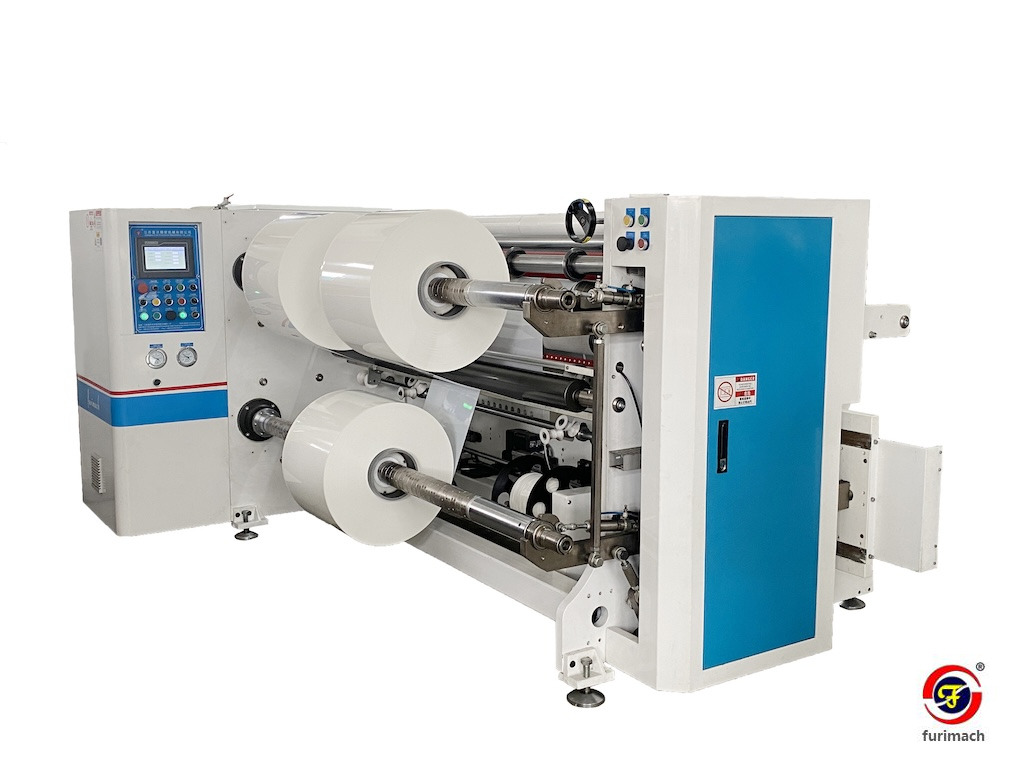

SLD-51231
Furimach
84411000
Feature
1. Three-motor connective control with stable tension control and nice-looking products.
1. Mitsubishi PLC system with a 7" touch panel for tension, length, and other settings
2. Dual-shaft rewind system can be changed easily from air shafts to differential shafts.
3. Waste disposal system uses servo driven spool trim winder device.
4. Slitting tool adopts shear blades (Optional: razor blades also available).
5. Splice table for convenient material splicing and quick roll change and web connecting.
6. The unwinder adopts shaftless connective type, unwind jumbo roll core applicable for both 3” and 6” cores.
7. Automatic tension control.
Technical parameter
| Machine width | 1.3M/1.6M |
| Min. slitting width | 25mm |
| Max. unwind diameter | 800mm |
| Max. rewind diameter | 500mm |
| Max. working speed | 180M/min |
| Paper core I.D. | 3”/6" |
| Power source | 380V 3P 50HZ |
| Air source | 0.6 MPa |
| Rewind shaft | differential shafts (standard) air shafts (optional) |
| PLC | Japan Mitsubishi |
| Slitting blade | Shear blade (standard) Razor blade (optional) |
| Tension control | Automatic control |
| Web guide control | Automatic control |
