FR-ZS350
Furimach
84224000.90
Machine Feature
1. The machine features a compact structure, stable performance, and simple operation. It includes a self-diagnosis function for faults, with clear fault displays, making maintenance more convenient.
2. The machine ensures a high qualification rate for product packaging, with beautiful sealing, significantly improving efficiency and reducing labor costs for customers.

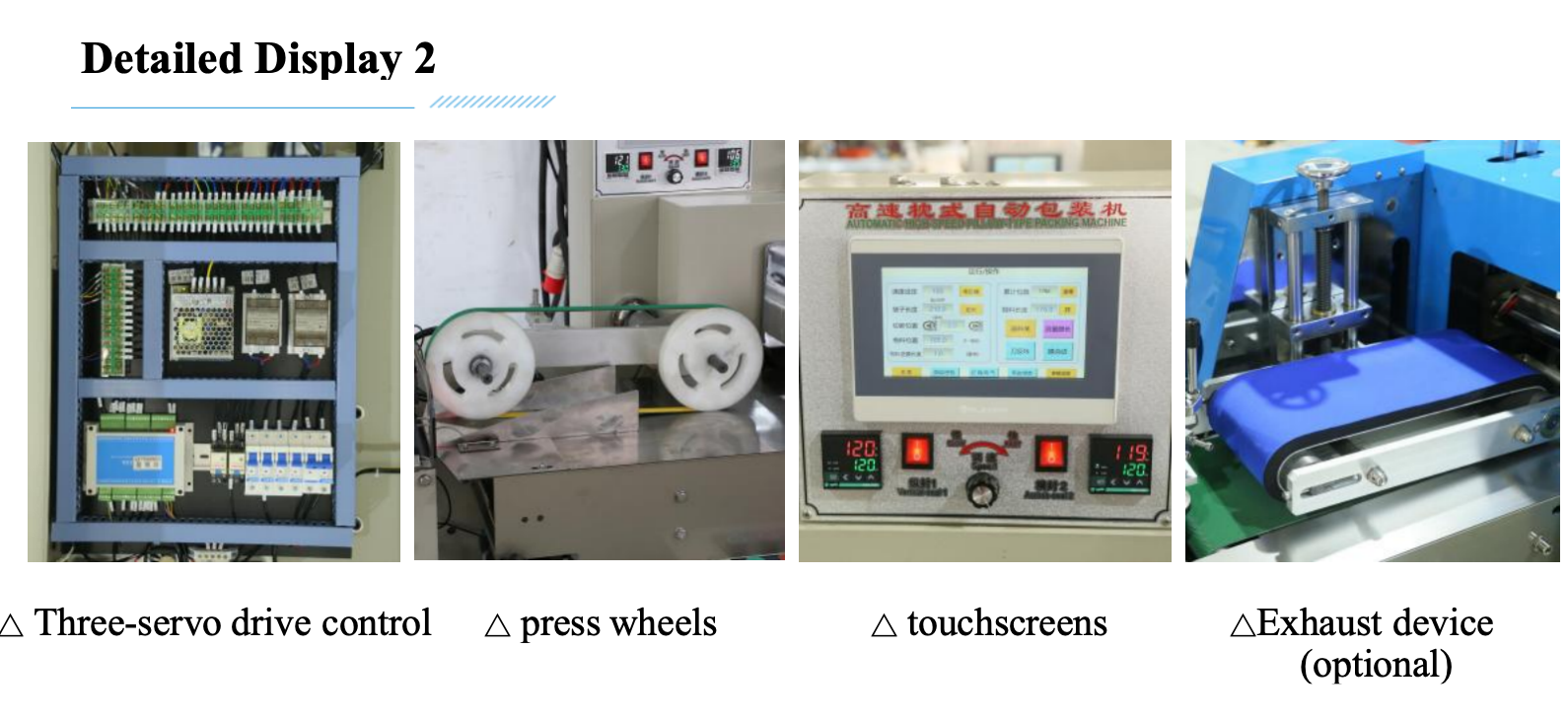

3. This pillow packaging machine utilizes three servo drives with independent control, offering feed detection, anti-empty bag, and anti-cutting functions. The belt conveyor automatically positions and feeds materials based on delivery requirements and can be connected to different conveyors for material identification. The machine is constructed with a stainless steel frame for durability.
4. The design is smooth, aesthetic, and easy to operate. It features high-sensitivity color mark tracking and digital input for precise sealing and cutting positions.
5. The machine is compatible with multiple product specifications, allowing for easy adjustments to meet diverse packaging needs.
6. Optional coding, marking and other functions are available. All control software is designed for easy adjustments, functional upgrades, and technological advancements, ensuring the machine never falls behind.
Main Technical Parameters
| Maximum film width | 350mm |
| Model Configuration | Triple servo |
| Bag length (mm) | 60-300mm(custom lengths available) |
| Packaging width (mm) | 25-170mm |
| Packaging height (mm) | 5-45mm |
| Using packaging materials | Suitable for all kinds of opp heat sealing film, laminating film, laminating paper, aluminium foil film, aluminium-plastic laminating film. |
| Longitudinal and transverse sealing strength (N/mm) | > 15N mm |
| Total power | 220V 50Hz 2.4Kw |
| Suitable film thicknesses | 30-60micron |
| Machine external dimensions (L×W×H) (mm) | L4587*W872*H1350mm |
| Machine weight (Kg) | Approx. 650Kgs |
Pillow Type Packing Machine Video
