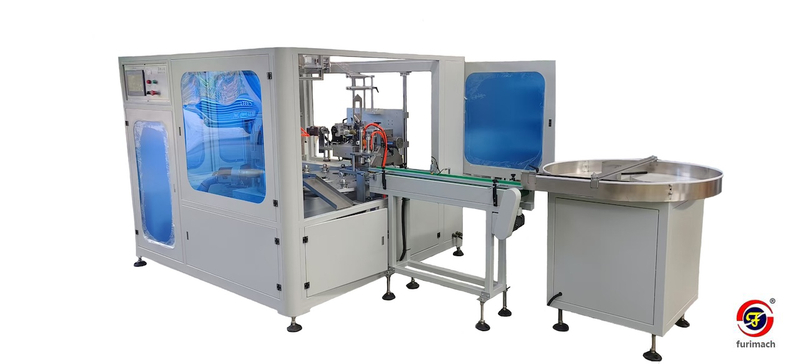

FR-40B PVC Electrical Insulation Tape Packing Machine


Availability:

Quantity:



Inquire Add to Basket

Application
The single-roll pvc electrical tape shrink packing machine is a semi-enclosed, wrap-style packaging equipment. This machine is also suitable for fold-style packaging of various flat, round-shaped products. The packaging process follows the sequence of loading, sleeving, labeling, heat sealing, and discharging, with the entire process being fully automated and unmanned. It helps manufacturing enterprises maximize labor cost savings and improve production efficiency.

Model:
FR-40B
Brand:
Furimach
Code:
84224000.90

Product Description

Feature

1． Tape loading unit adopts rotary type loading mechanism.

2． Japan Mitsubishi PLC is used for data process, motor control (relative movements of auto unloading disc, electric parts, etc.)

3． Digital data process, with combined function of PLC and photoelectric system, to realize high precision position and accurate running.

4． The touch panel has auto error detecting and display function, parameter, process data and parts position can be easily set.

5． Transmission method by recision cam drive for accuraty control.

6． Taiwan Airtac pneumaitc cylinder control label suction (180° with angle adjustment).

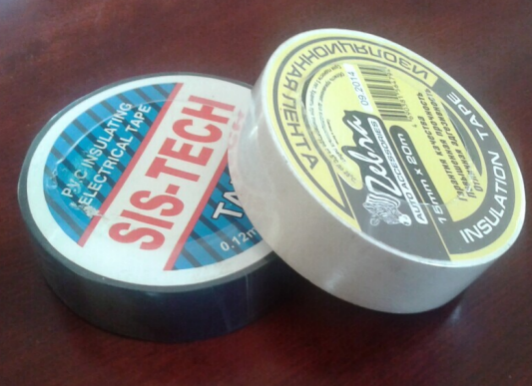

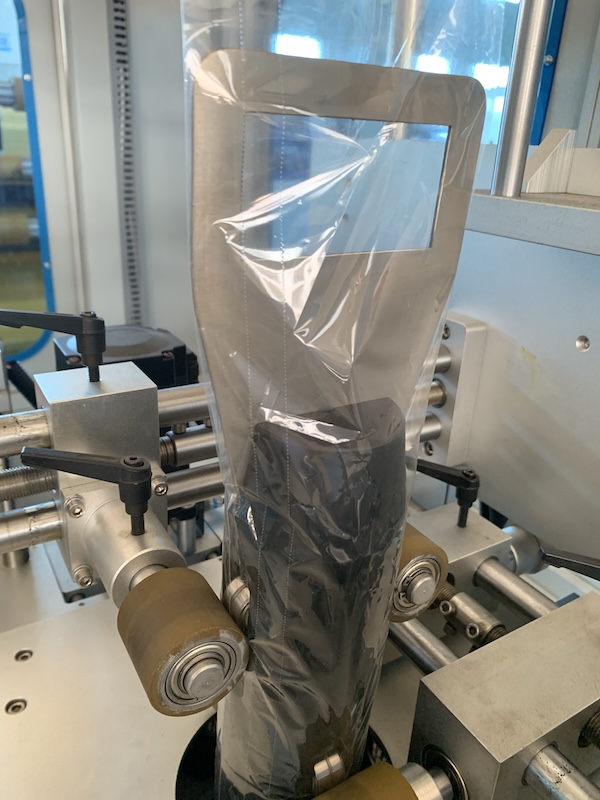

Packing Product Photo

pvc tape

Individual Oriental Pillar and PVC Folding Film

Main Technical Parameters

Power Source	380V 50HZ 3P
Max. film diameter	250mm
Packing size range	O.D. 50-90mm
Max. film width	300mm
Packing speed(pcs/min)	60-70pcs/min
Air Pressure(Kg/cm2) )	0.6Mpa
Individual packing shrink film	PVC folding film (30-40micron)
Multiple packing shrink film	POF film (20-30 micron)
Multi-piece tape packing	Optional
