Feature
1. The sealing knife is designed as a single, integrated unit, ensuring high durability and resistance to deformation. Its robust construction guarantees a strong and reliable sealing line.
2. Through meticulous design, precision engineering, and rigorous assembly processes, combined with the use of high-quality components, the appliance delivers exceptional performance and long-term stability. This results in minimal failure rates even during extended periods of operation, significantly boosting work efficiency.
3. Total machine is controlled full-automatically equipping with photoelectric detection to achieve unmanned high-speed operation
4.The machine is user-friendly and easy to operate. Additionally, switching between products of different specifications is quick and hassle-free, enhancing overall convenience.
5. Expandable product line: This machine can be integrated with other equipment, allowing it to serve as part of a comprehensive product line for enhanced functionality and efficiency.
6. Safety and error prevention: The machine is equipped with advanced features to prevent incorrect sealing and ensure operator safety during operation.
Main Technical Parameters
| Power Source | AC380V 50Hz/60 Hz |
| Sealing unit specificaiton | 1795(L)×880(W)×1570(H) |
| Sealing knife size | 565(L)×460(W) |
| Packing product scope | (80-450)L×(60-350)W×(5-120)H |
| Conveyor speed | 26M/min |
| Shrink unit specificaiton | 1200(L)×667(W)×750(H) |
| Shrink tunnel size | 1000(L)×420(W)×250(H) |
| Packing product scope | 350(W)×200(H) |
| Shrink film | POF film (thickness 15micron) |

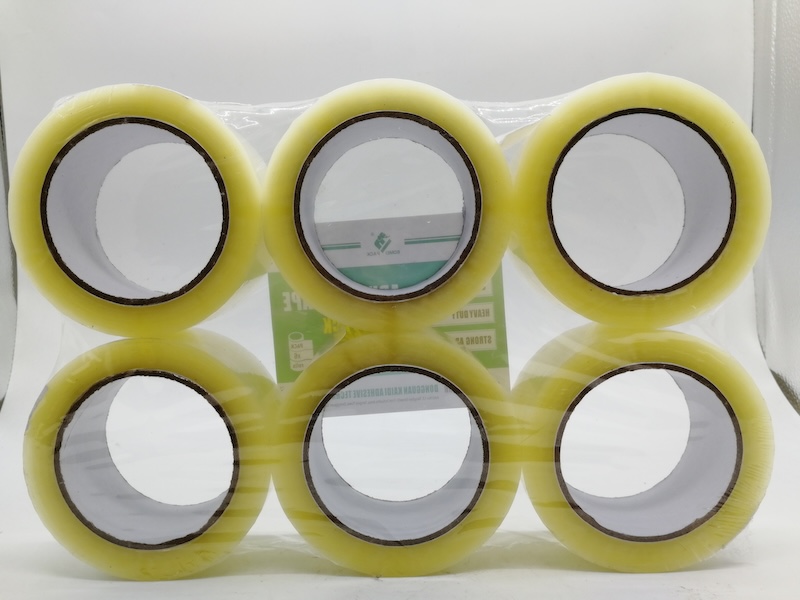

Multiple Tape Flatbed Shrink Packing Machine Video
Individual Product Packing Video

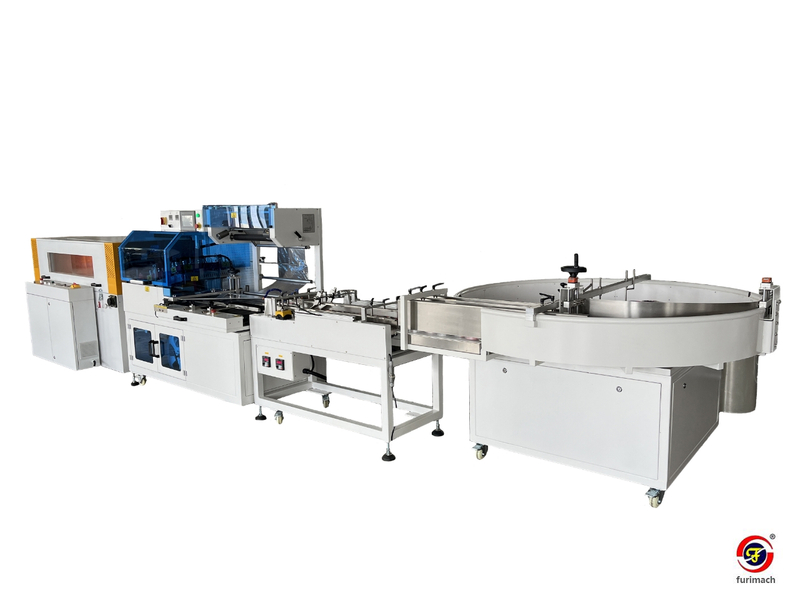

Flatbed packing machine working with fully automatic bopp tape slitting machine
