FCK Simplex Automatic Tape Cutting Machine
You are here: Home » Products » Tape Cutting Machine » FCK Simplex Automatic Tape Cutting Machine

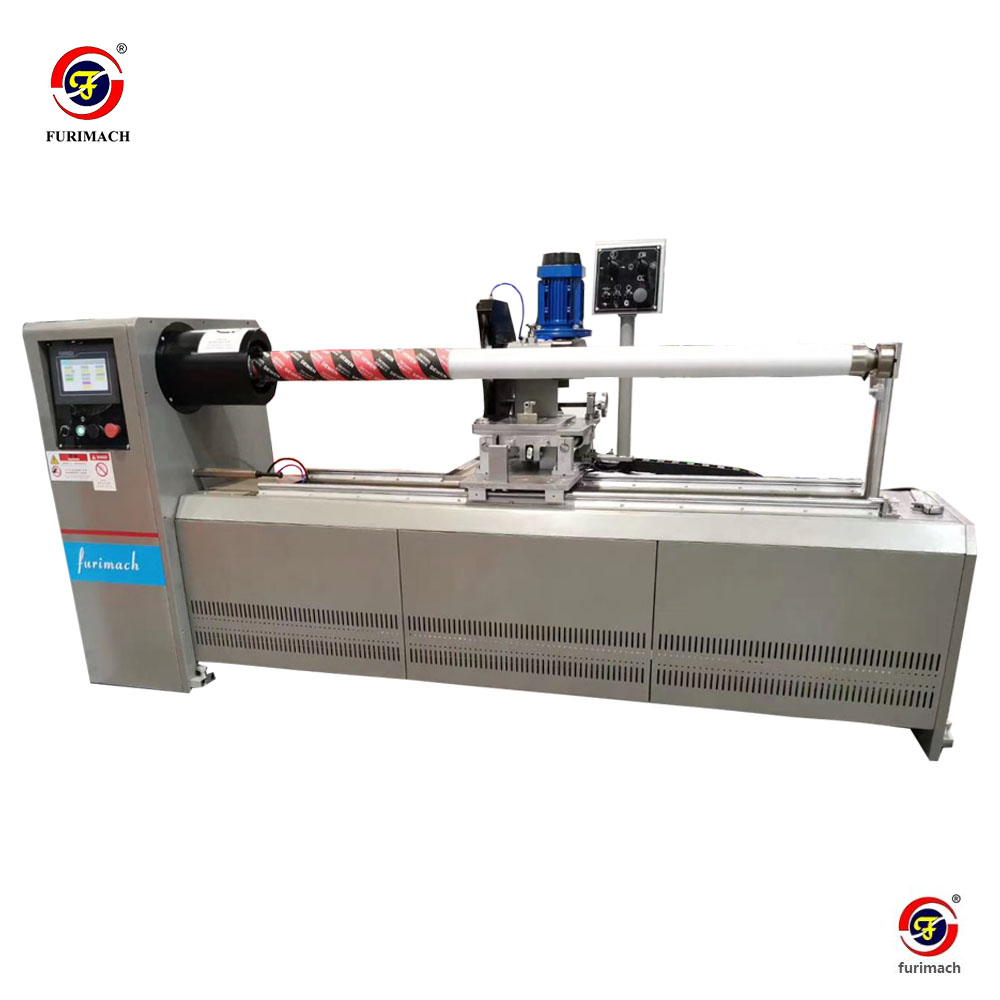

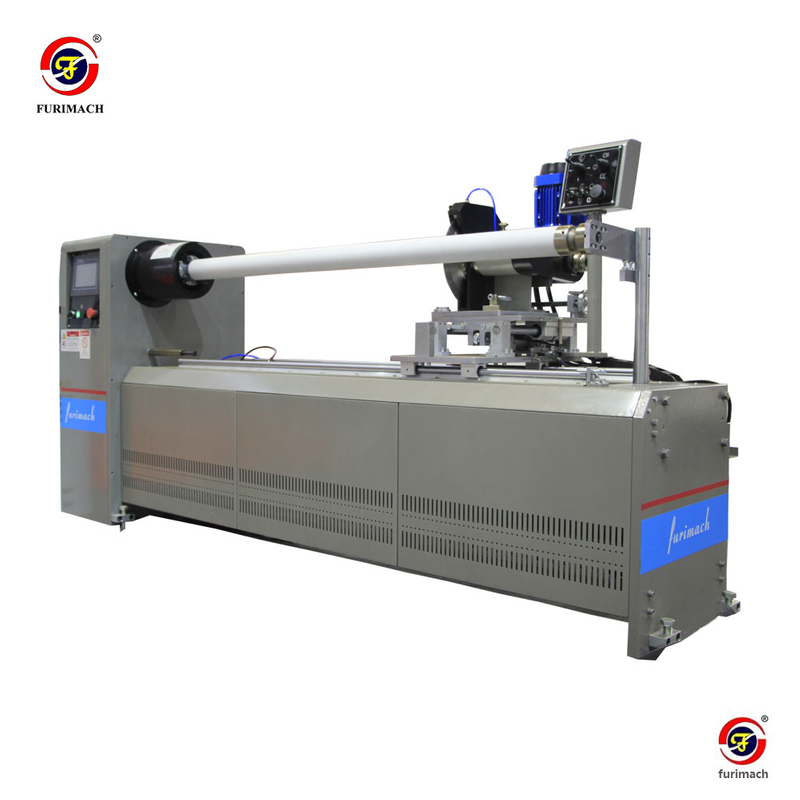

FCK Simplex Automatic Tape Cutting Machine

loading

FCK Simplex Automatic Tape Cutting Machine FCK Simplex Automatic Tape Cutting Machine
FCK Simplex Automatic Tape Cutting Machine FCK Simplex Automatic Tape Cutting Machine

loading

FCK Simplex Automatic Tape Cutting Machine

Availability:
Quantity:
Inquire Add to Basket
Application
Suitable for cutting BOPP packing tape, masking tape, double sided tape, kraft paper tape, foam tape, duct tape, industrial tape, medical tape, etc.

  • FCK-13, FCK-16

  • Furimach

  • 84778000

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Product Description

Feature of FCK Automatic Tape Cutting Machine

1. Main driving part

AC motor with inverter control

2. Central control unit

Programmable central control is used and 20 sizes can be set in one cutting process

3. Operating panel

All functions are operated on the 7" LCD touch panel

4. Motor control system

PLC programmable control

5. Cutting size control

Taiwan servo motor control. The imported high precision ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat.

6. Blade feeding control

Pneumatic cylinder control system

Main Technical Parameters


Machine width

1.3M 1.6M

Cutting precision

+/-0.1mm

Max. Blade O.D.

300mm

Min. Cutting width

1mm

Machine power

3.7KW

BOPP Tape Cutting Video:

Related Products

automatic tape cutting machine

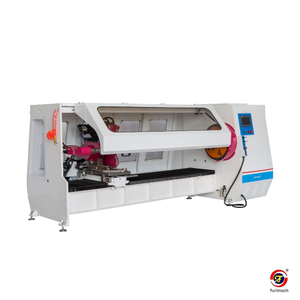

FCH Large Diameter Automatic Adhesive Tape Roll Cutting Machine | Single Shaft Roll Slitter Machine
FCD Four-shaft Automatic Tape Roll Cutting Machine | Adhesive Tape Cutting Machine
FCD Four-shaft Automatic Tape Roll Cutting Machine | Adhesive Tape Cutting Machine
FCB Double-shaft Automatic Tape Slicing Machine | Adhesive Tape Log Roll Slitter
FCB Double-shaft Automatic Tape Slicing Machine | Adhesive Tape Log Roll Slitter
FCC Single Shaft Automatic Tape Roll Cutting Machine
FCC Single Shaft Automatic Tape Roll Cutting Machine
FCA Single Shaft Adhesive Tape Cutting Machine
FCA Single Shaft Automatic Adhesive Tape Cutting Machine

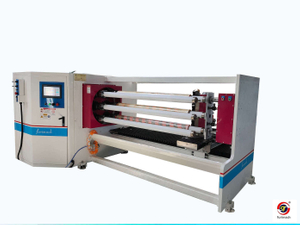

FCS Six Shafts Masking Tape Tape Cutting Machine
FCS Six Shafts Automatic Masking Tape Cutting Machine | Electric Tape Cutting Machine

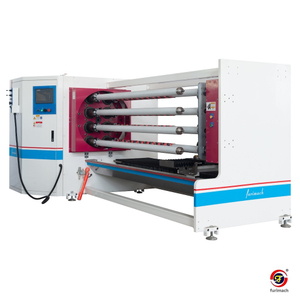

FCE Eight Shafts Automatic PVC Electric Tape Cutting Machine
FCE Eight Shafts Automatic PVC Electric Tape Cutting Machine

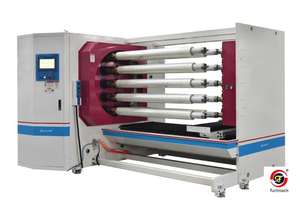

FCG 10 Shafts Automatic BOPP Tape, Masking Tape, PVC Tape Cutting Machine
FCG 10 Shafts Automatic BOPP Tape, Masking Tape, PVC Tape Cutting Machine

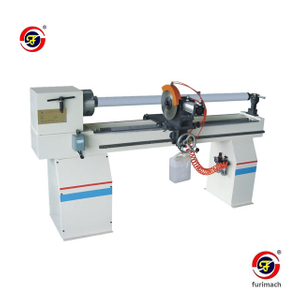

FCM Manual Tape Cutting Machine
