Feature
| 1. Main driving part | Equipped with an Innomotics AC motor and inverter for reliable performance. |
| 2. Central control unit | Utilizes a programmable central control system, allowing up to 55 sizes to be set on the same shaft for automatic cutting. |
| 3. Operating panel | All functions are operated on the 10" LCD touch panel. |
| 4. Motor control system | The central control system is PLC programmable controller. |
| 5. Cutting positioning system: | Controlled by Mitsubishi servo motor, with an imported high-precision ball screw for size setting and a linear slide rail to support the cutter seat load. |
| 6. Blade feeding positioning system | Blade feeding is controlled by Mitsubishi servo motor, and the cutting speed is adjustable in three stages. |
| 7. Auto angle adjustment of circular blade | Uses a Mitsubishi servo motor to calculate and adjust the circular blade angle based on material type (adjustment range: ±8°). |
| 8. Auto exchange device | Cam divider system for fast and accurate exchange, no stuck issue. |
Optional Parts:
| 1. Other size cutting shaft | It can be made as per the required core I.D. （1”-3”) |

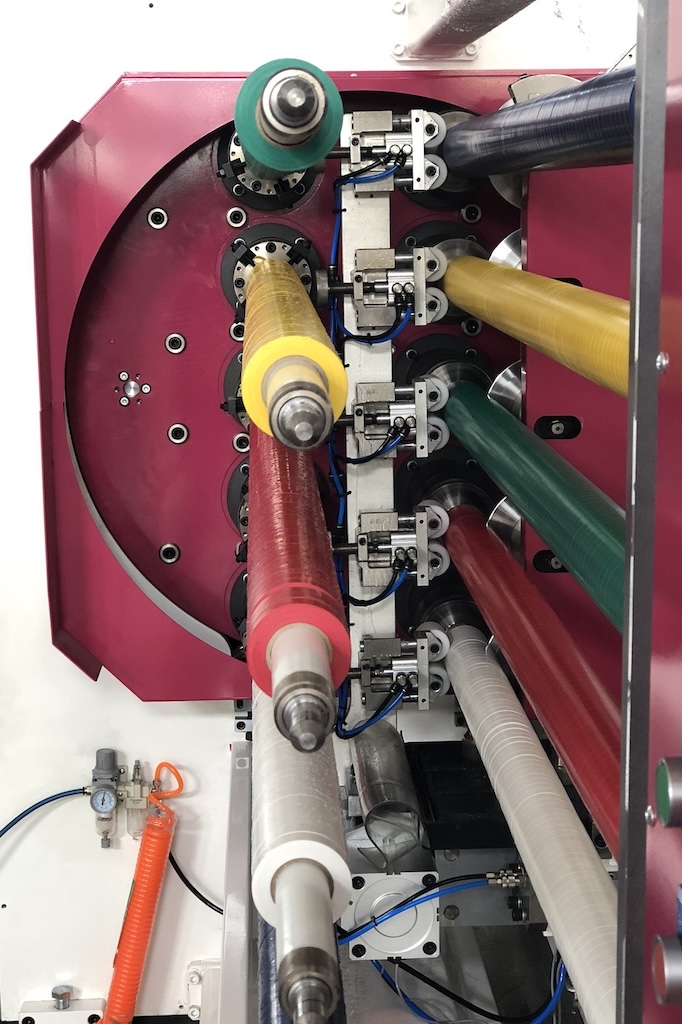

| 2. Cutting supporter | For supporting log roll when tape core below 38mm. |
Main Technical Parameters:
| Machine width | 1.3M 1.6M |
| Max. cutting O.D. | 130mm |
| Inner core I.D. | 1"-3" |
| Min. cutting width | 3mm |
| Machine power | 10KW |
