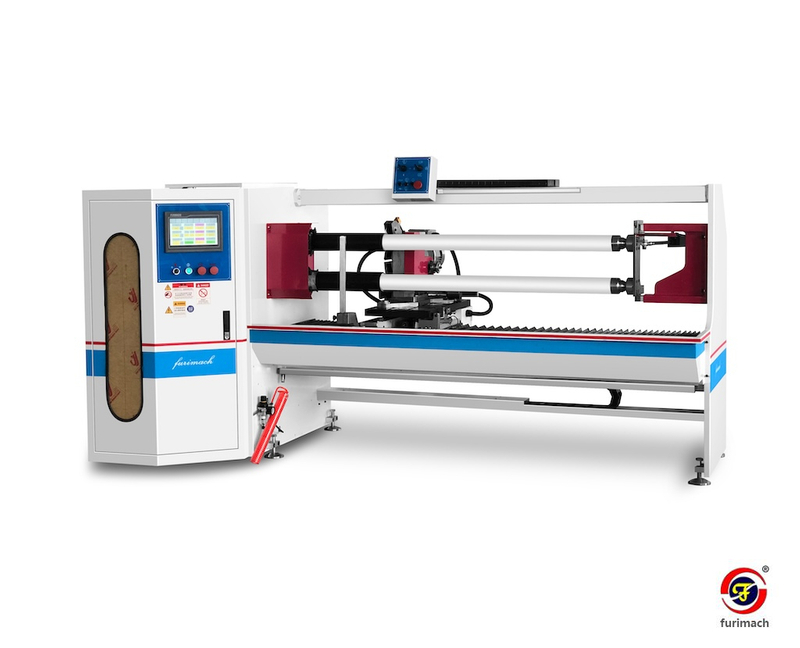

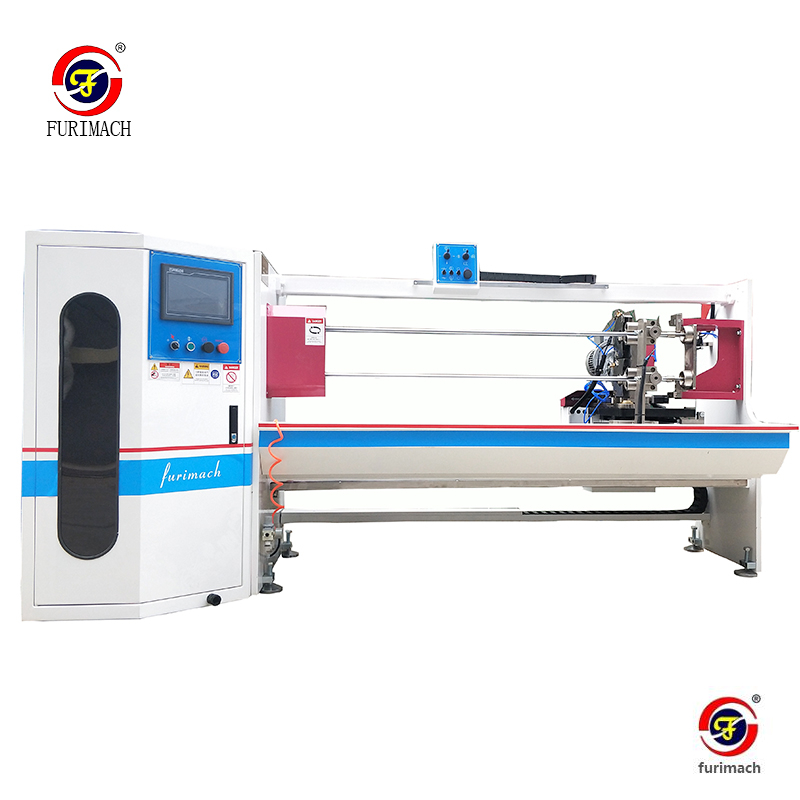

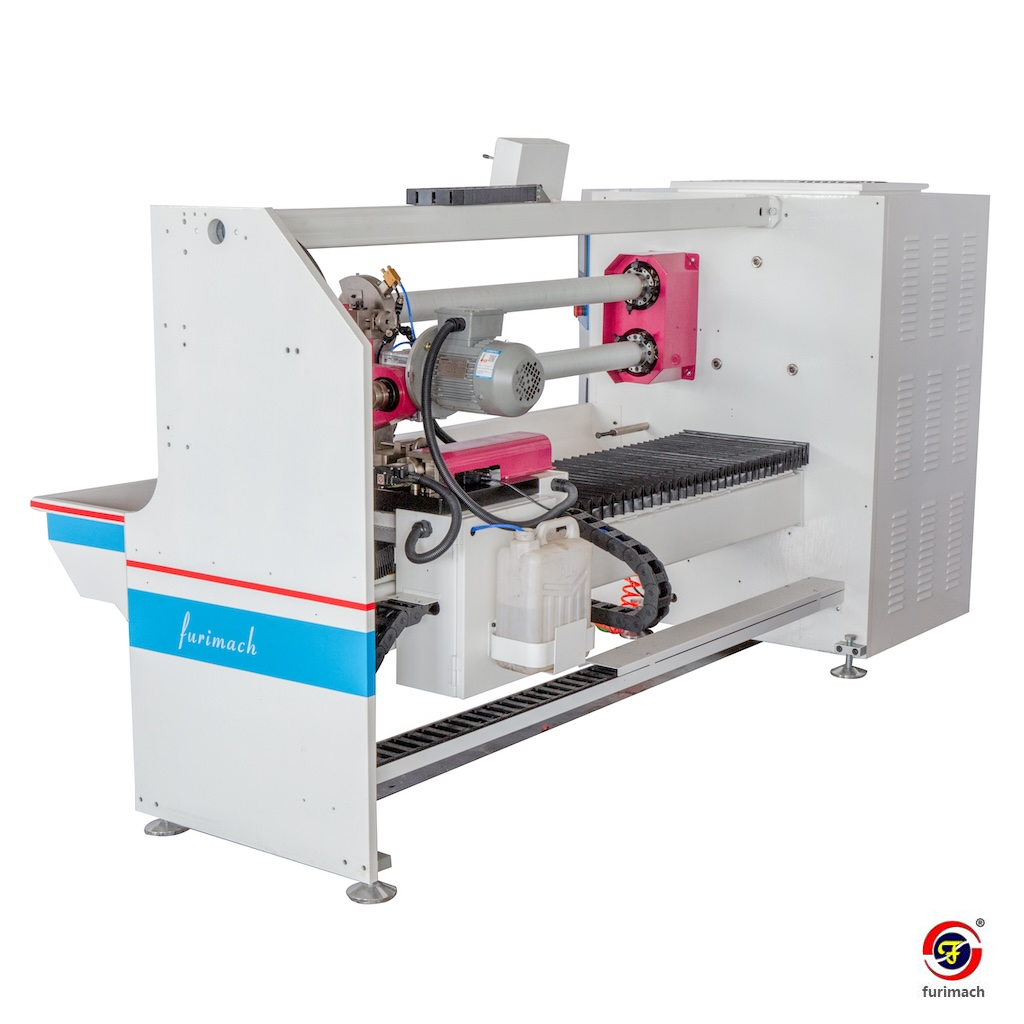

Feature of FCB Double-shaft Automatic Tape Slicing Machine | Adhesive Tape Log Roll Slitter
1. Main driving part | Innomotics AC motor with inverter is utilized. |
2. Central control unit | Programmable central control is used and 55 sizes can be set on the same shaft for auto roll cutting. |
3. Operating panel | All functions are operated on the 10" LCD touch panel. |
4. Motor control system | The central control system is PLC programmable controller. |
5. Cutting positioning system: | Cutting positioning is controlled by Mitsubishi servo motor. The imported high precision ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat. |
6. Blade feeding positioning system | Blade feeding is controlled by Mitsubishi servo motor, and the cutting speed is adjustable in three stages. |
7. Auto angle adjustment of circular blade | Mitsubishi servo motor is used to calculate the circular blade angle and the angle change is subject to different materials (the angle change range is ±8°). |
Optional Parts:
1. Other size cutting shaft | 1”-3” shafts are avaible upon request |
2. Cutting supporter | For supporting log roll when cutting core below 38mm. |
3. Safety cover | To protect operator during the production this is compliant to the CE regulation. |
Main Technical Parameters:
Machine width | 1.3M 1.6M |
Cutting precision | +/-0.1mm |
Max. Cutting O.D. | 210mm/230mm |
Min. Cutting width | 1mm |
Inner core I.D. | 1"-3" |
Double-shaft BOPP Tape Roll Cutting Video:
How To Install the Knife on The Tape Cutting Machine?
