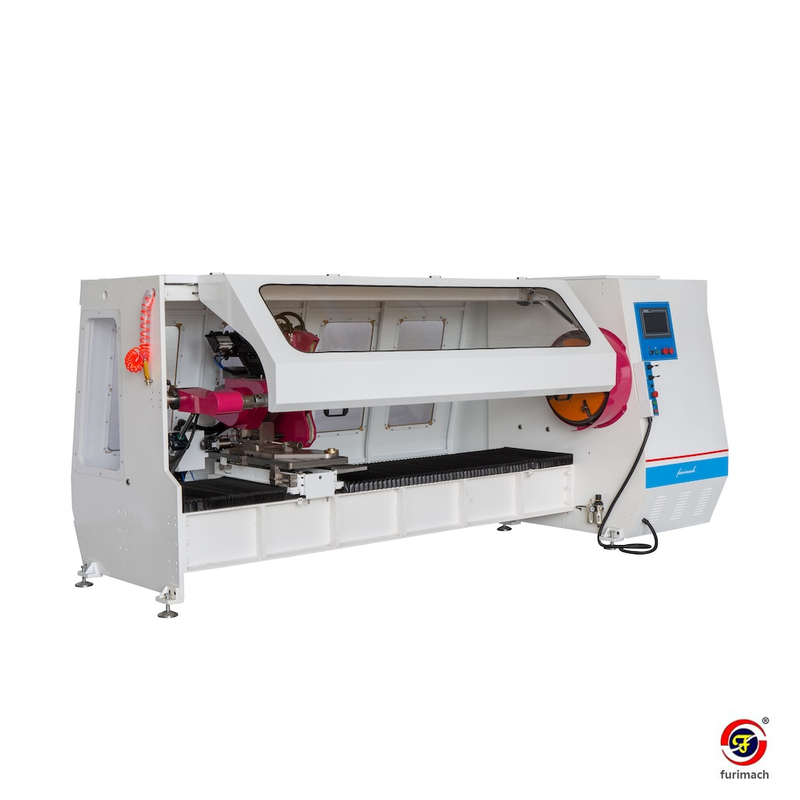

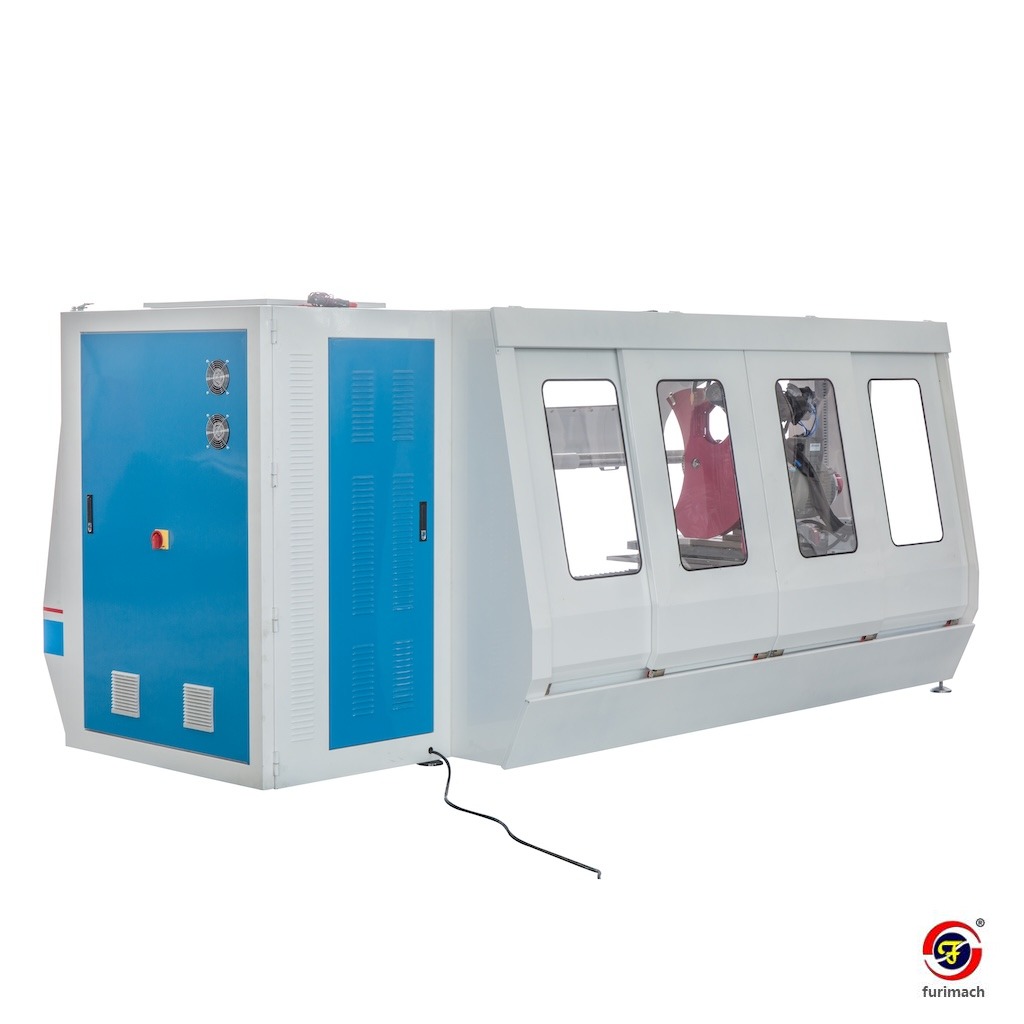

FCH, FCH-16, FCH-20
Furimach
84778000
Feature
1. Main drive and blade drive unit: Both are controlled by a 7.5HP AC motor with an inverter, ensuring stable and rapid acceleration and deceleration.
2. Japan Mistubishi PLC control, 55 sizes can be set on one cutting process.
3. 10” LCD human-machine interface, enables easy input of all parameters, including shaft/blade rotation speed, cutting width, quantity, and 3-stage speed, etc.
4. 3 servo motors and drivers system are utilized for size setting, blade feeding and automatic angle adjust (angle adjust range +/-8°).
5. Different options for cutting shafts: Supports different cutting shafts for various material requirements. The standard inner tension shaft is suitable for most materials, while the air cutting shaft is recommended for foam or protective film.
6. Automatic knfie sharpening device, which can keep teh knife sharp for the easy operation. And interval sharpening mode (setting how often to sharpen after a certain number of cuts) is available upon customer request.
7. Safety cover: Ensures operator safety by allowing the machine to operate only when the cover is closed. The machine automatically stops when the cover is opened, complying with European CE regulations.
8. Different options for cutting knife: this machine can install regular circular blade and saw teeth blade.

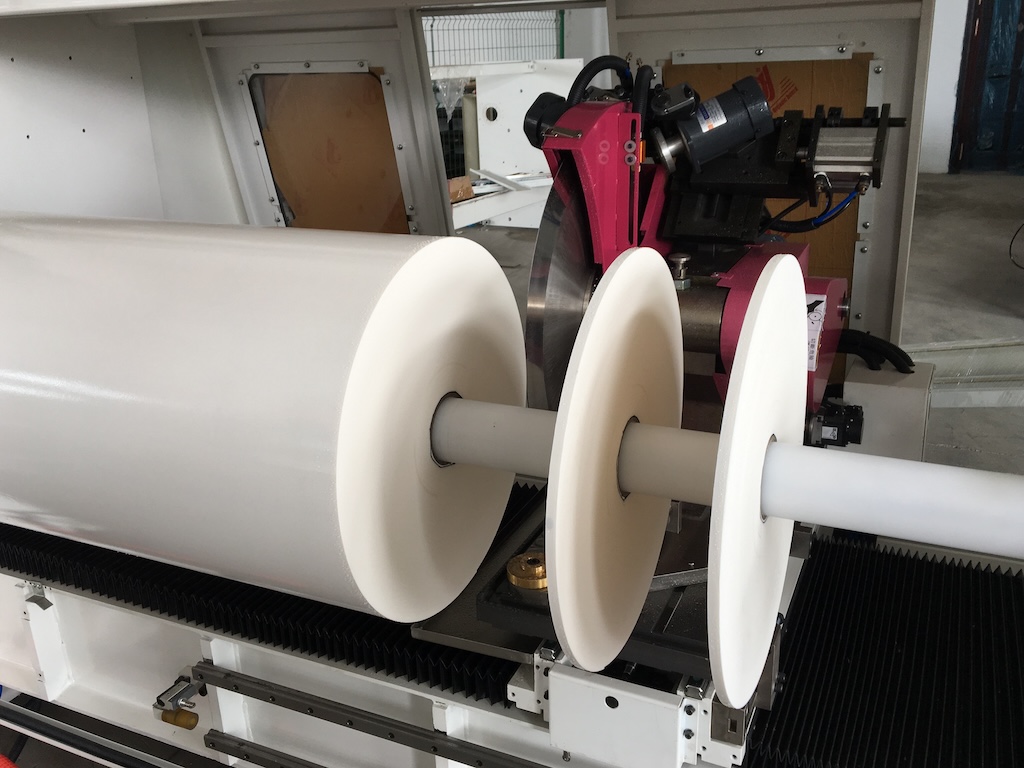

Machine Application
Optional Items:
1. Small size cutting shaft: 1”-3” cutting shaft and PE tubes are availble.
2. Cutting supporter system: used when the roll inner core diameter below 38mm
3. Vacuum suction system: effectively removes scraps, especially when using a sawtooth blade to cut protective films.
Main Technical Parameters
| Machine width | 1.6M/2.0M |
| Cutting precision | +/-0.1mm |
| Max. Blade O.D. | 600mm |
| Min. Cutting width | 3mm |
| Inner core I.D. | 1"-3" |
| Machine power | 14KW |
| Machine dimension | L4890*W1970*H2010mm |
| Machine weight | 3500KGS |

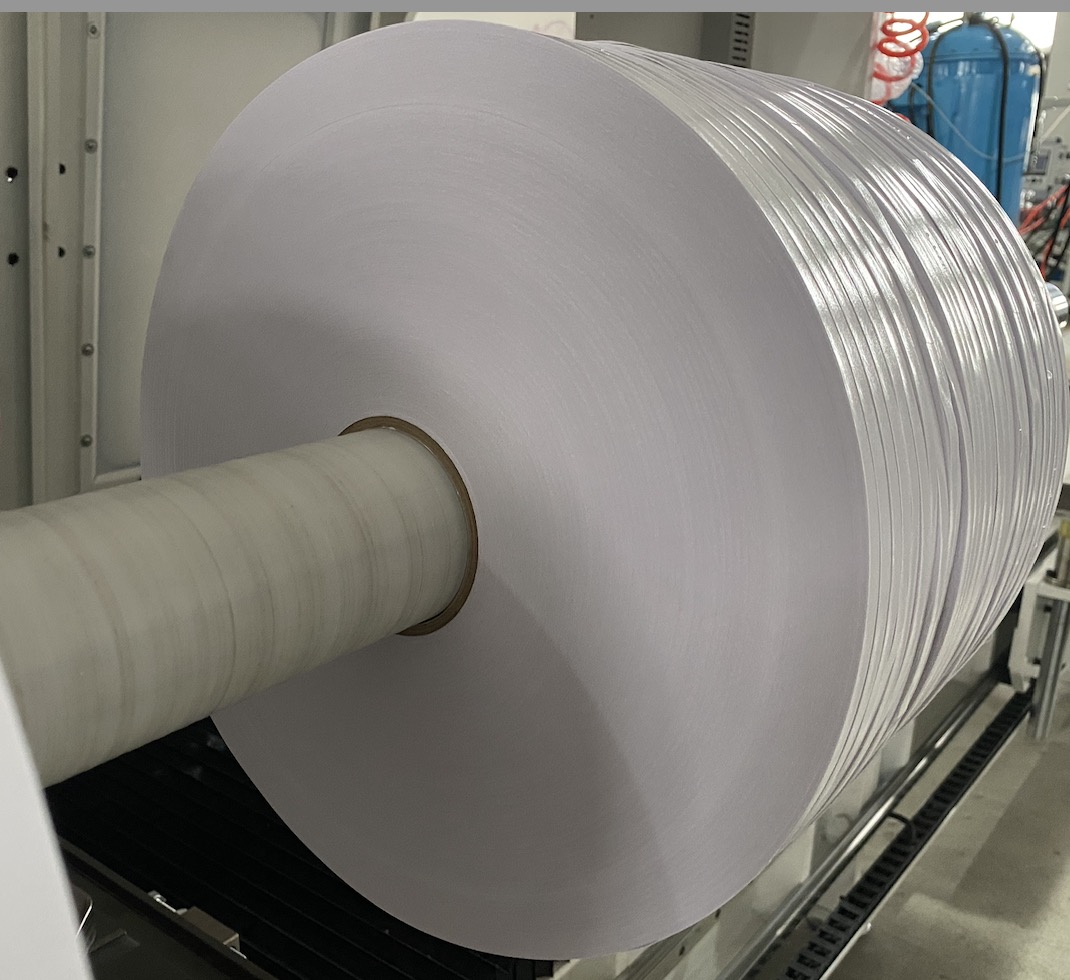

Cutting Double Sided Tape Roll Video:

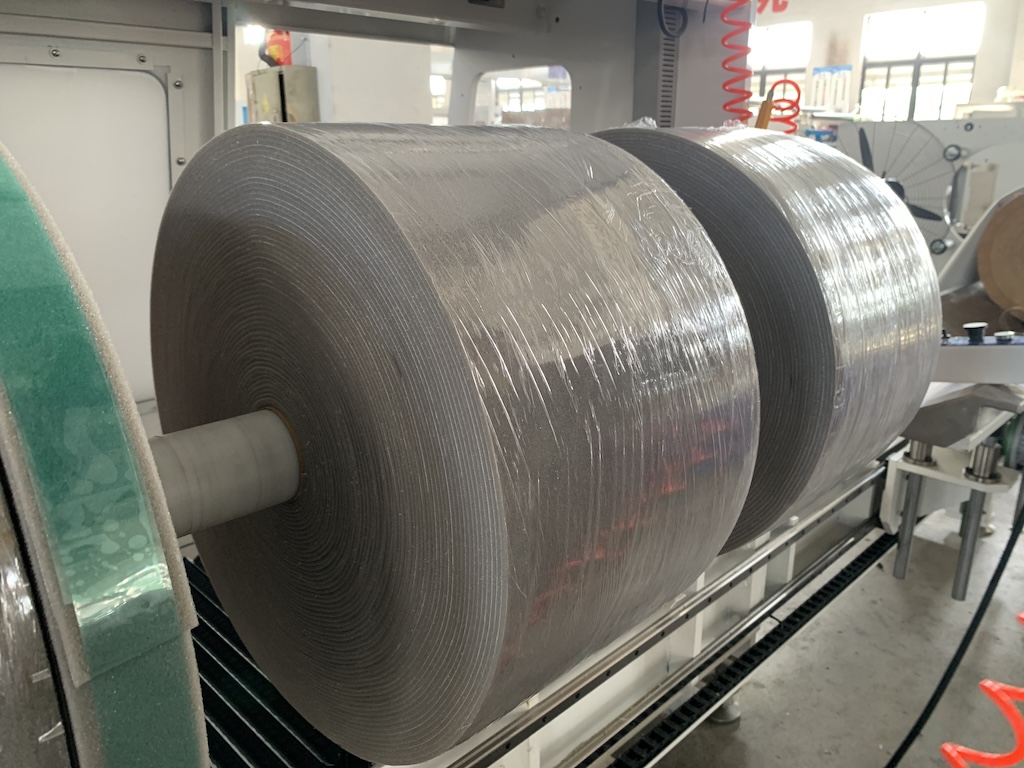

Cutting OD520mm Foam Roll Video:
Cutting Graphite Roll Video:

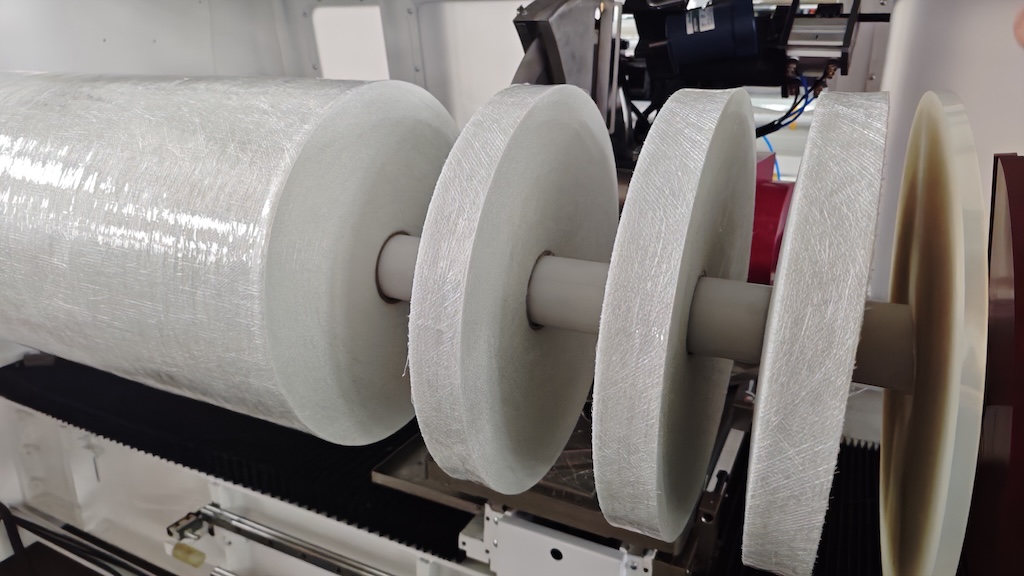

Cutting Fibgerglass Video:
FAQ:
1. Can you customize a machine for even larger diameter cutting?
Yes, we can customize machines with a maximum blade outer diameter (OD) of 800mm.
2. How to sharpen the knife?
This machine is equipped with an automatic sharpening device, which can be used directly for regular small-edge sharpening. Tutorial video:
If customers also wanna sharpen the big edge, you will have to remove the blade from the machine and use individual sharpening machine.
3. What type of blades can be used on this machine?
We recommend using blades with an outer diameter (OD) of ≥400mm.
4. What is the maximum roll weight this machine can handle?
Without a loading device, we recommend using log rolls weighing up to 60KG. For heavier rolls, please consider adding an auxiliary loading device.
Auxiliary loading device working video:

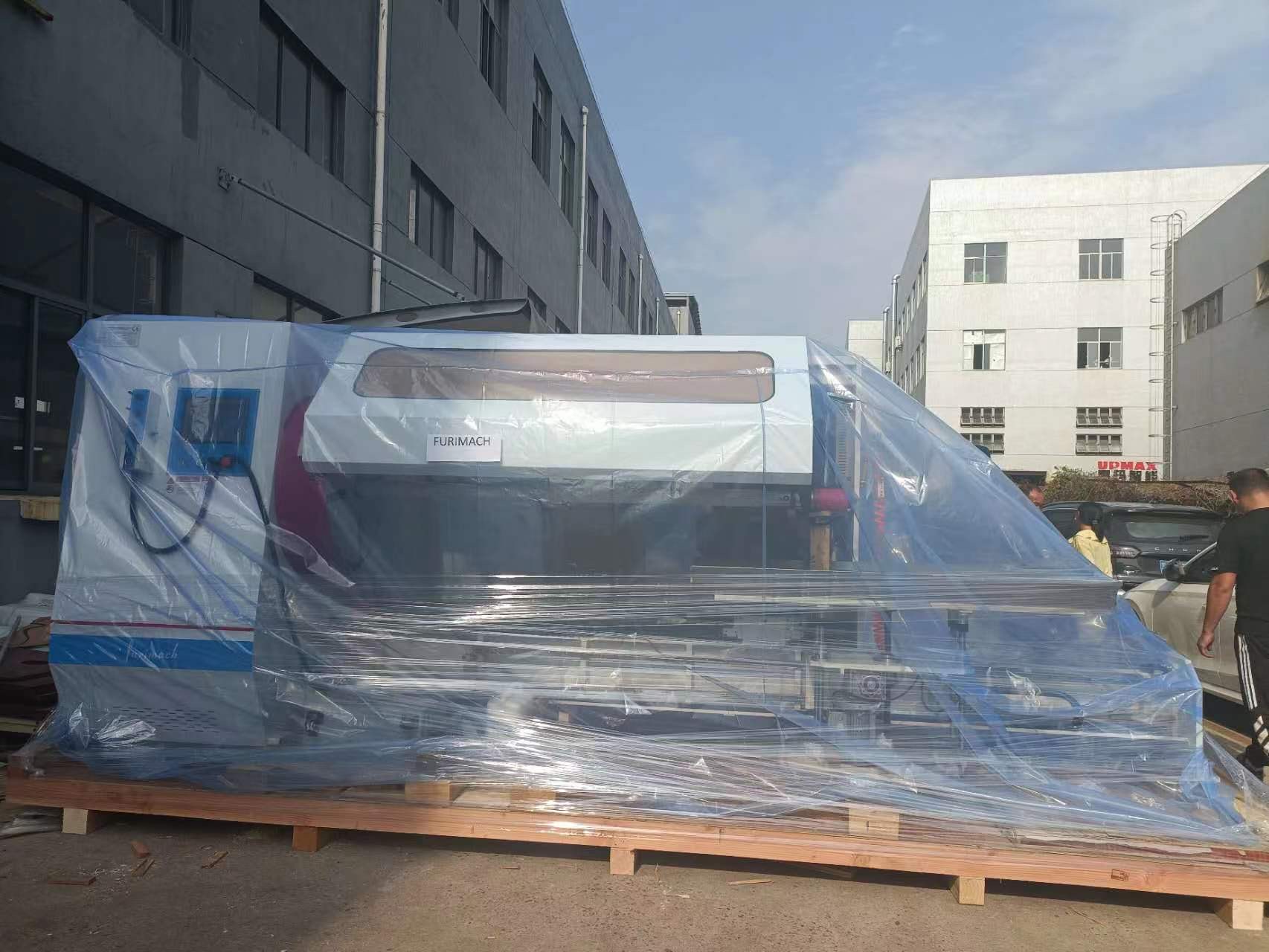

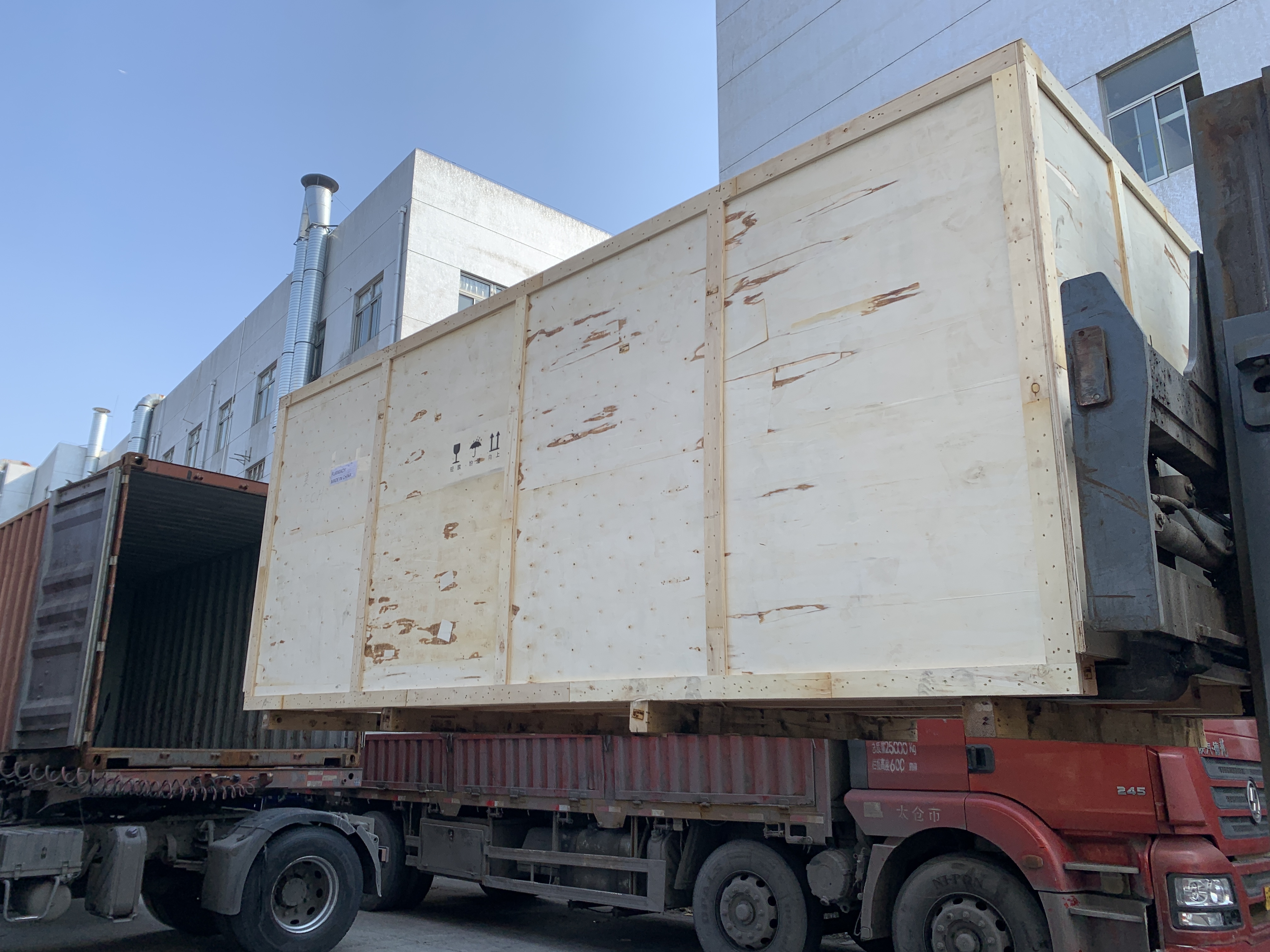

Machine Packing & Delivery
