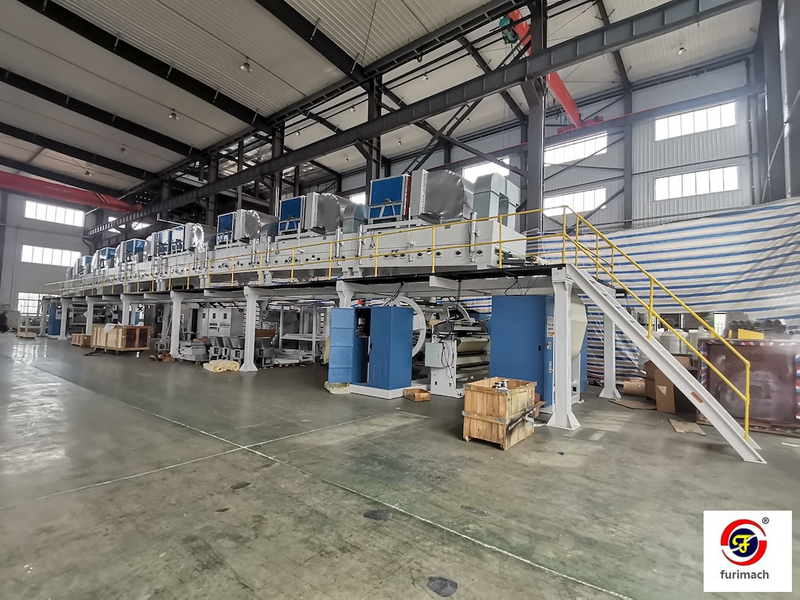

Configuration of Washi Paper Tape Coating Machine:

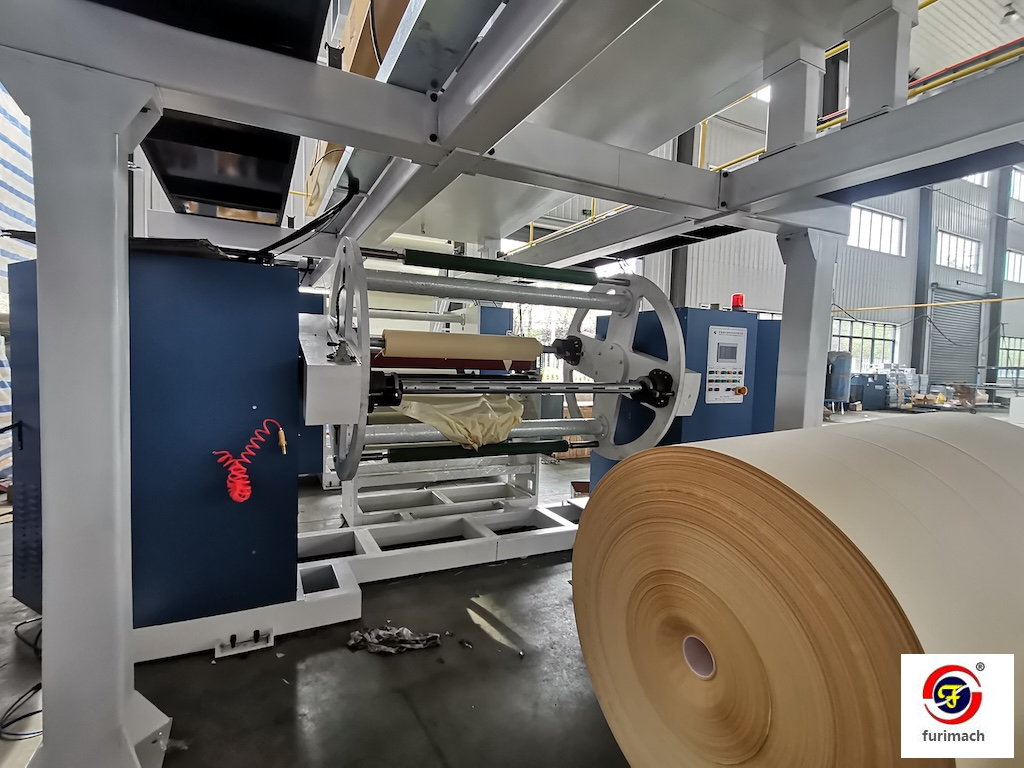

Double-station unwinder with auto splice, Φ1200mm
Double-station rewinder with auto splice, Φ1200mm
Mechanical speed: 120m/min.
Siemens PLC control system, emergency stop system, safety device, etc.
Features:
1. Siemens PLC control system for the whole machine, HMI equipped at each key unit like unwinder, rewinder, coating unit. High degree of automation, easy operation, less manpower.
2. Safety protection devices, emergency stop system and fault alarm function, safer coating production.
3. Independent and precise temperature control for oven partitioned area. 100mm insulation layer inside of oven is more energy-saving.
4. Segmented and closed loop tension control for the whole machine ensures more stable tension, with servo correction/web guide, the rewinding effect is more perfect/orderly.
5. Technical engineering team supports on-site and remote service, from on-site installation & commissioning to common trouble-shooting, rest assured for after-sale service.
Main Technical Parameters
Effective Width (mm) | Max. 1300 | Customizable |
Mechanical Speed (m/min) | Max. 120 | Customizable |
Applicable Coating | Organic silicone |
|
Curing method | Heat curing |
|
Unwind Diameter (mm) | Max. 800 | Customizable |
Rewind Diameter (mm) | Max. 800 | Customizable |
Brand | Furimach |
Voltage | 380V 50HZ 3P |
