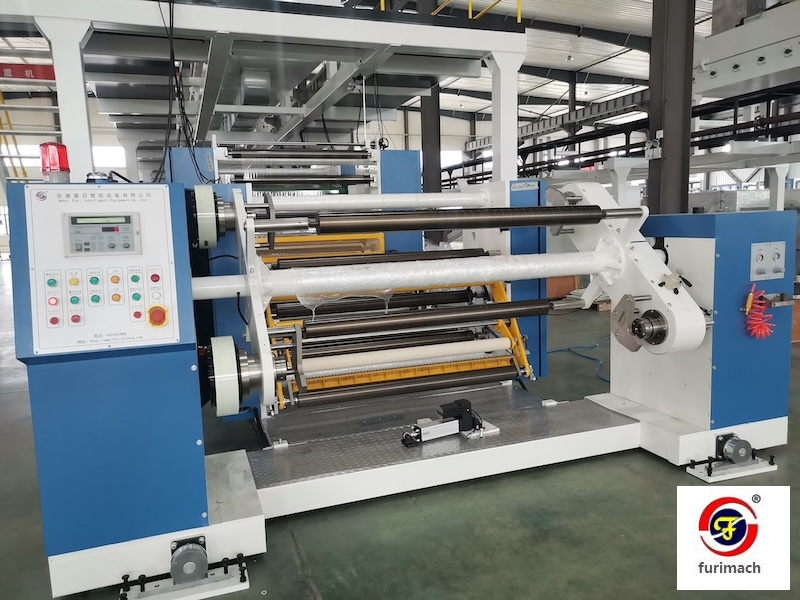

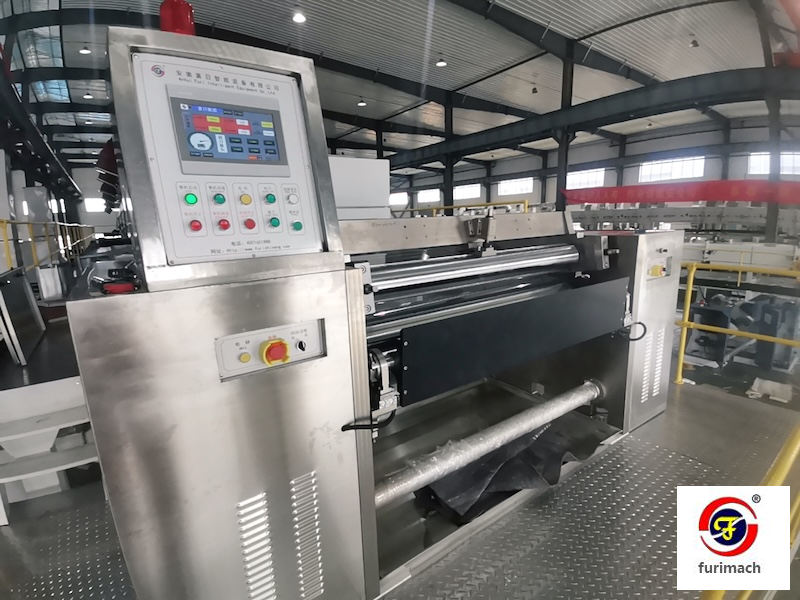

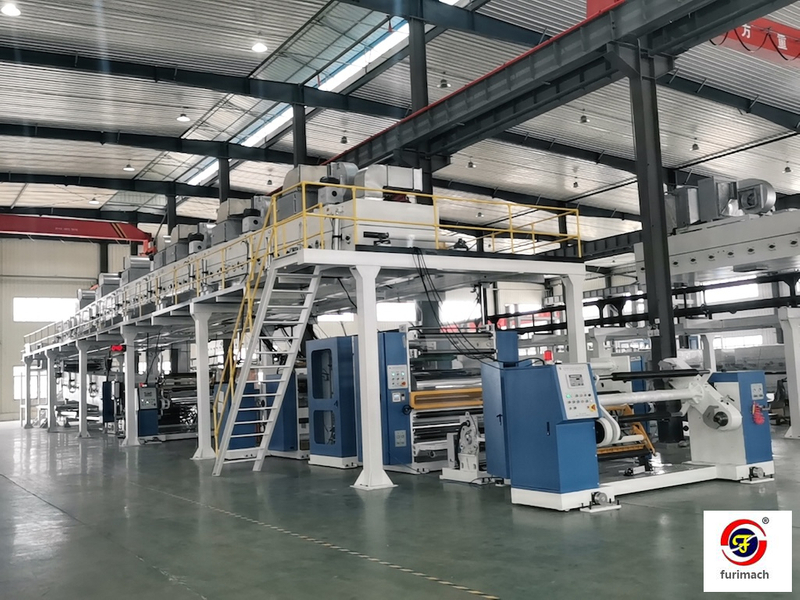

Features Double-Sided Tape Coating Machine
• Customized Design–Machine width, speed, and specifications are fully adaptable to meet specific production requirements.
• Advanced Coating Flexibility–Supports multiple coating methods with quick-change coating carts for seamless process adjustments.

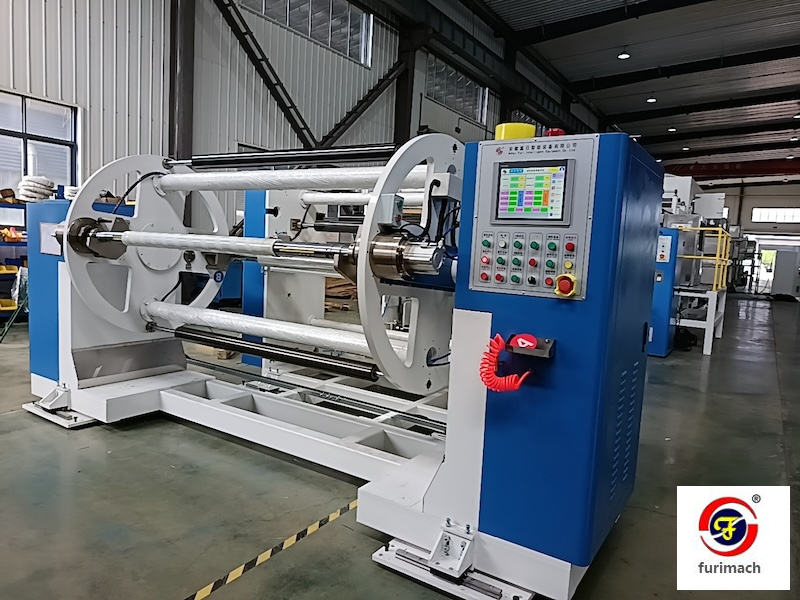

• Multi-Station Unwind & Rewind System–Optimized for high-efficiency double-sided tape production with smooth material handling.
• Precision Tension & Temperature Control–Ensures uniform coating thickness and high product consistency.
• Smart Automation & Monitoring–Real-time remote diagnostics and process tracking enhance operational efficiency.
• Optimized Web Handling– Specially designed tension control mechanisms protect delicate and thin substrates from deformation.
• Energy-Efficient & User-Friendly – Built for high productivity while minimizing energy consumption and simplifying operation.
Effective Width (mm) | Max. 1300/1600 | Customizable |
Mechanical Speed (m/min) | Max. 100/200 | Customizable |
Applicable Coating | Water-based/ chemical solvent-based |
|
Curing method | Heat curing |
|
1st Unwind Diameter (mm) | Max. 800/1200 | Customizable |
2nd Unwind Diameter (mm) | Max. 800/1200 | Customizable |
1st Rewind Diameter (mm) | Max. 800/1200 | Customizable |
2nd Rewind Diameter (mm) | Max. 800/1200 | Customizable |
Coating Substrate | Release film/ Release paper |
Laminating Substrate | Cotton paper/ PET film/ PE film/ Foam |
Product | Double-sided Tape/ Single-sided Tape |
