Feature
1. Programmable PLC integrated control, touch human-machine interface operation, intuitive and clear, easy to operate.

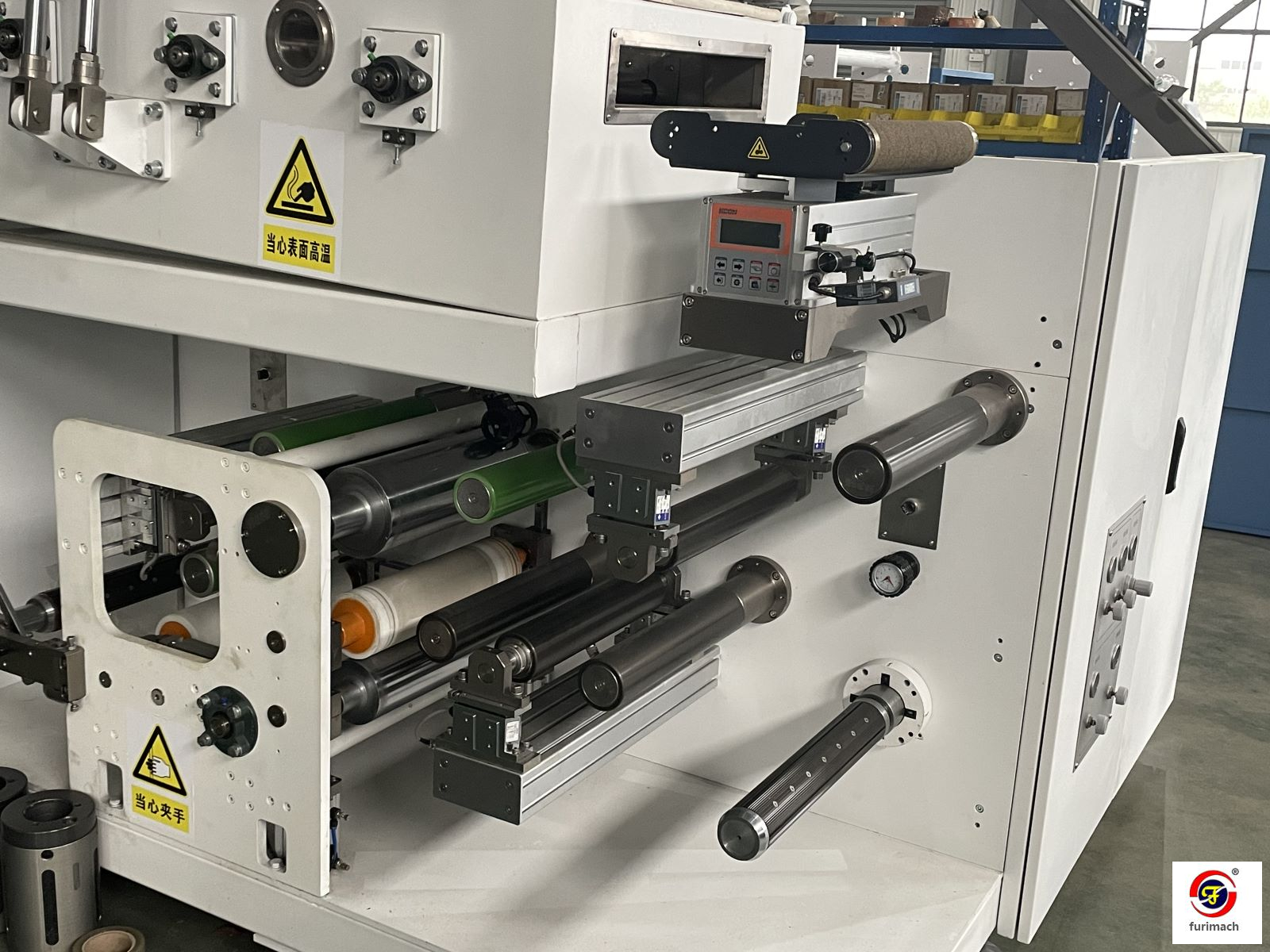

2. Double-station rewinding and unwinding, pneumatic chucking, fully automatic unloading, winding and automatic splice.
3. Adjustable coating volume and precise control of coating precision.
4. Automatic joint finding function for rewinding, reducing loss.
5. Automatic tension section control, the whole machine synchronous operation.
6. The oven adopts energy-saving box fan, with high drying efficiency, and adopts multi-segment temperature control to precisely control the temperature of each section of the oven according to the process requirements.
7. Multi-point automatic web guide control, to ensure the neatness of the winding.
Main Technical Parameters
| Effective Width (mm) | Max. 350 | Customizable |
| Mechanical Speed (m/min) | Max. 10 | Customizable |
| Applicable Coating | Water-based/ chemical solvent-based, etc. | |
| Curing method | Heat curing | |
| Unwind Diameter (mm) | Max. 350 | Customizable |
| Rewind Diameter (mm) | Max. 350 | Customizable |
| Substrate | PE film/ PET film/ Paper, etc. |
| Function | Laboratory Coating Testing Purpose/ Small Scale Coating Production |
