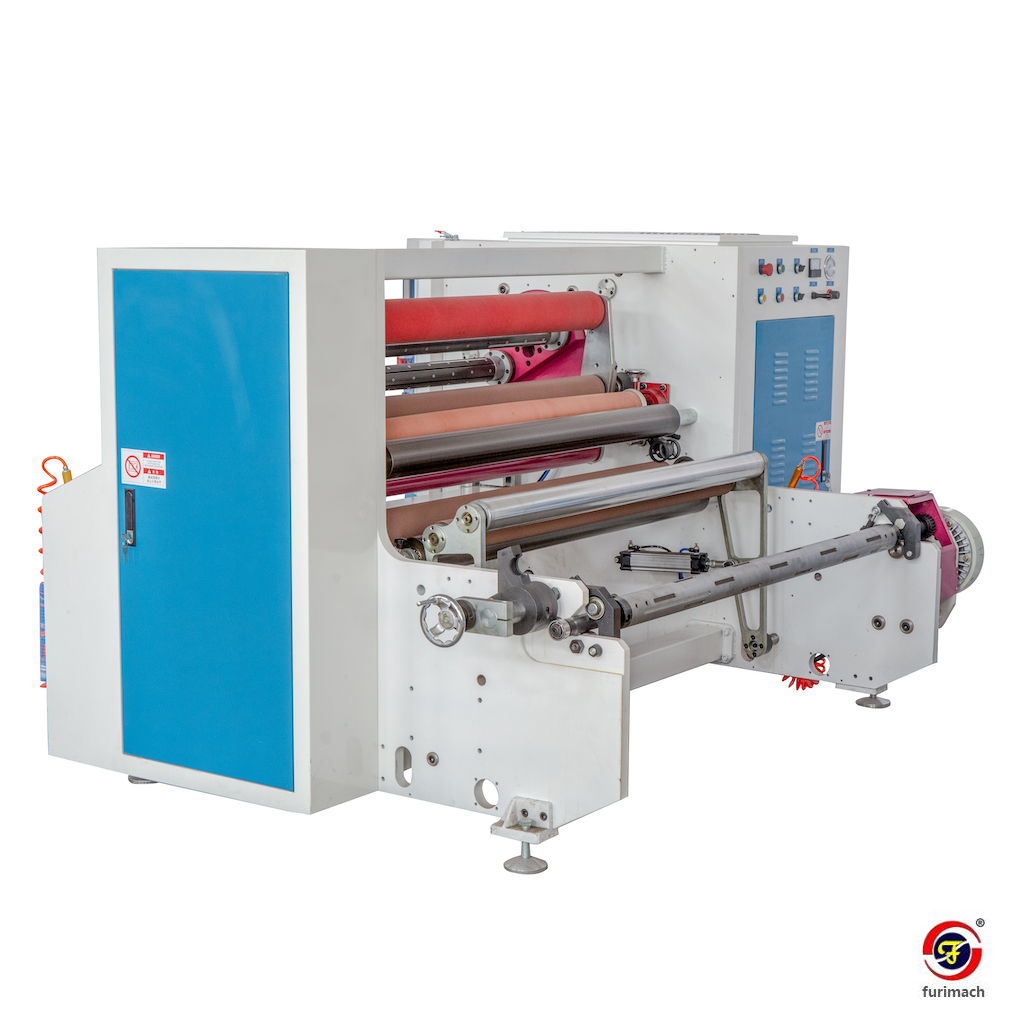

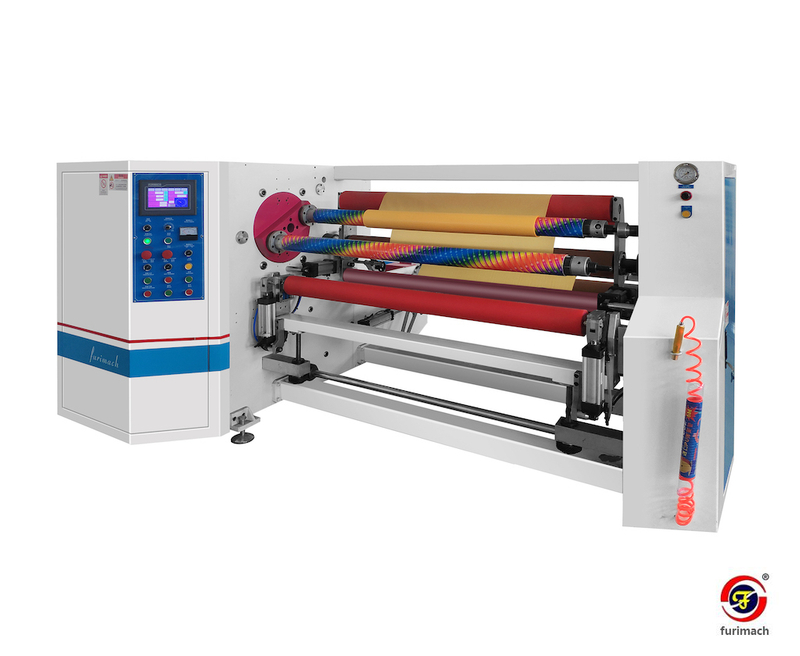

Feature of RED-S Double-shaft Auto Adhesive Tape Rewinding Machine
1. Automatic Tension Control: Both the unwinder and rewinder feature automatic taper tension control, allowing the tension to adjust automatically throughout the rewinding process.
2. Japan Mitsubishi PLC Control: Mitsubishi high-performance programmable controller offers easy management of the entire rewinding process. Both the length and tension are clearly displayed on an LCD screen for accurate monitoring.
3. Pneumatic Air Shaft for Core Holding: The paper core is securely held in place by a pneumatic shaft, allowing for quick and easy loading and unloading, which significantly boosts operational efficiency.
4. Automatic Tape End Smoothing Roller: This roller effectively eliminates wrinkles and air bubbles in the product after rewinding, ensuring a smooth and flawless finish.
5. Hydraulic Auto Up-Lifter (Optional): This optional device facilitates effortless jumbo roll loading, enhancing operational convenience and improving efficiency.
Main Technical Parameters
| Effective width | 1.3M, 1.6M, 1.8M, 2.0M |
| Max. unwind diameter | 800 mm |
| Max. Rewind diameter | 300mm |
| Max. Working speed | 180M/Min |
| I.D. of paper core | 1"-3" |
| Main motor | 5HP*2 |
| Machine weight | 3000KG |
RED-S Double-shaft Rewinding Machine Optional Items
1. Hydraulic auto uplifter for jumbo roll loading

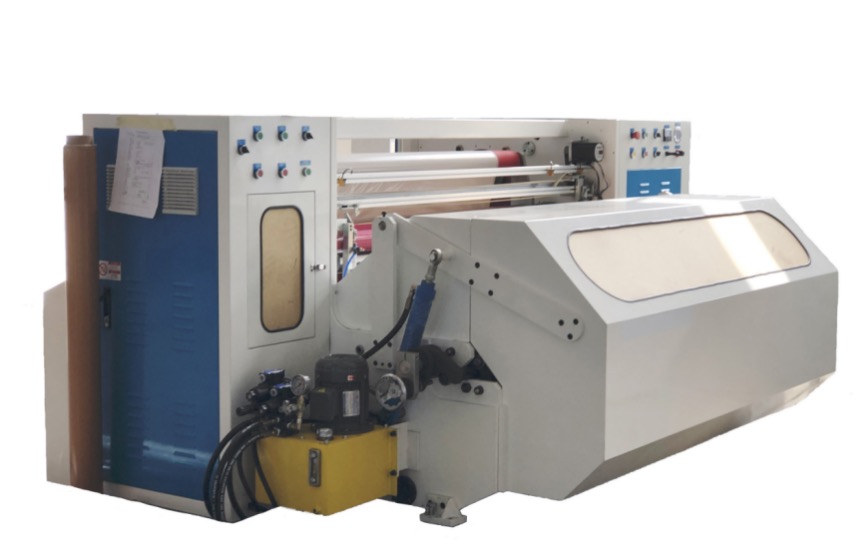

2. Noise hood (Designed to reduce the noise generated during the rewinding process)
3. Auto tabbing -Automatically applies paper or plastic labels to the tape roll end
4. Auto cut-off - Automatically cuts the log roll after one roll is completed winding and shafts exchanged
FAQ
1. What is the unwind and rewind capacity for this machine?
The unwinding capacity is 600-800 kg, and the rewinding capacity (3” core): 55 kg.
2. What size of paper core can I use for this machine?
1.3M Machine: 1”-3”
1.6M Machine: 1.25”-3”
3. How can I clean the rubber roller on this machine?
The rubber rollers should only be cleaned with industrial alcohol. Do not use stain removers, thinner, gasoline, or solvents, as they may cause corrosion of the rollers.
