Feature
1. Automatic length setting and cut-off device to improve the efficiency
2. Unwind powder brake with double press roller, which ensures stable and consistent tension control during unwinding.
3. Automatic turret exchange system: Enables continuous operation without stopping for roll exchanges.
4. Automatic label tabbing device: Provides quick and accurate end roll label application.
5. Automatic jumbo roll uplifting device: Simplifies loading and unloading of jumbo rolls, saving time and labor.
6. Automatic smoothing device: Eliminates wrinkles and ensures smooth and high-quality finished tape rolls.
7. Noise Hood (Optional): Reduces operational noise for a better working environment.
8. Automatic paper core loading and finished log roll unloading system: Streamlines the loading and unloading process to improve the working efficiency.
9. Japan Mitsubishi PLC control system.
10. Automatic tension control for unwinder and rewinder: Maintains consistent tension throughout the process for optimal product quality.
Main Technical Parameters
Effective width | 1.3M, 1.6M |
Max. unwind diameter | 800 mm |
Max. Rewind diameter | 300mm |
I.D. of paper core | 1.25"-3" |
Machine power | 8.5KW |
Machine voltage | 380V 50HZ 3P |
Air pressure | 6Bar |

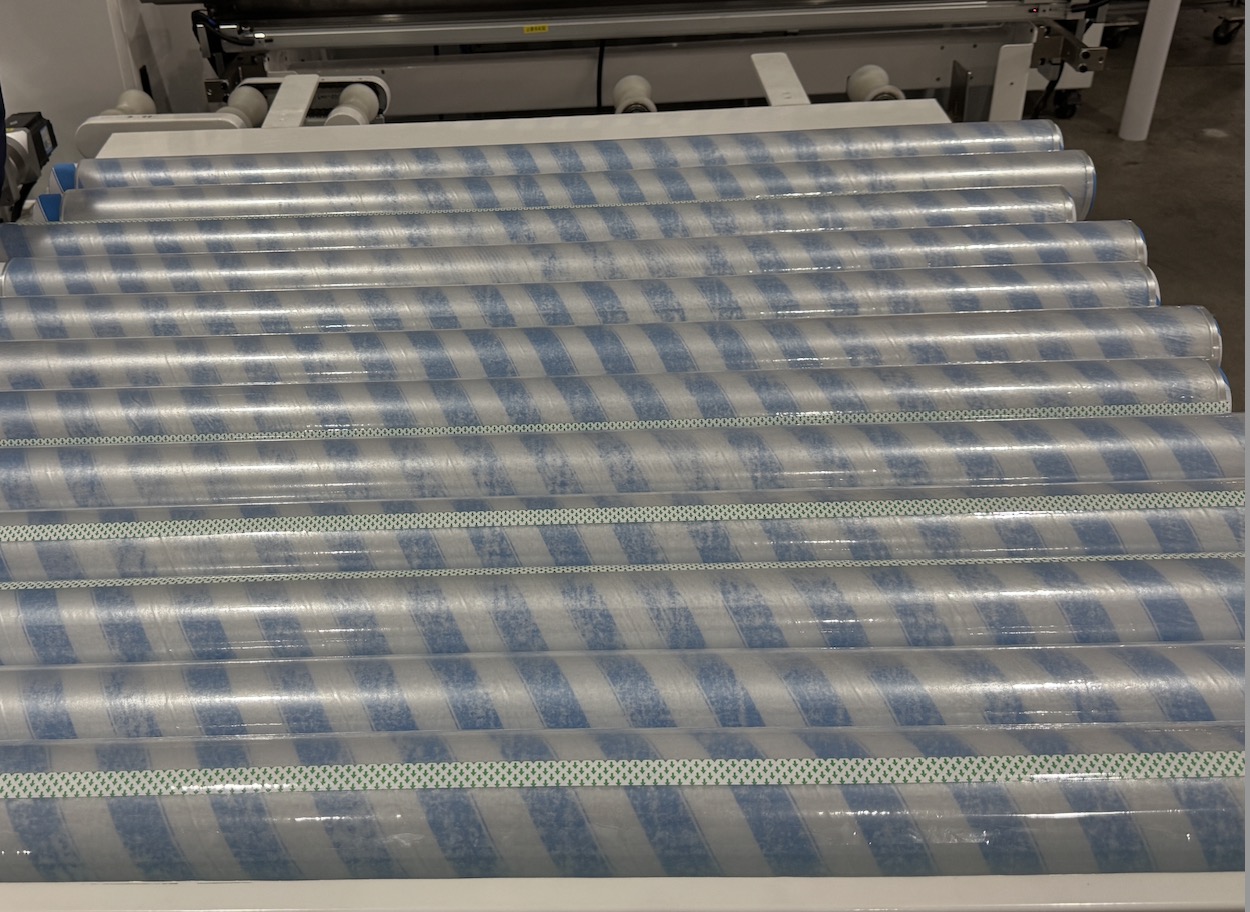

BOPP Tape Rewinding Video

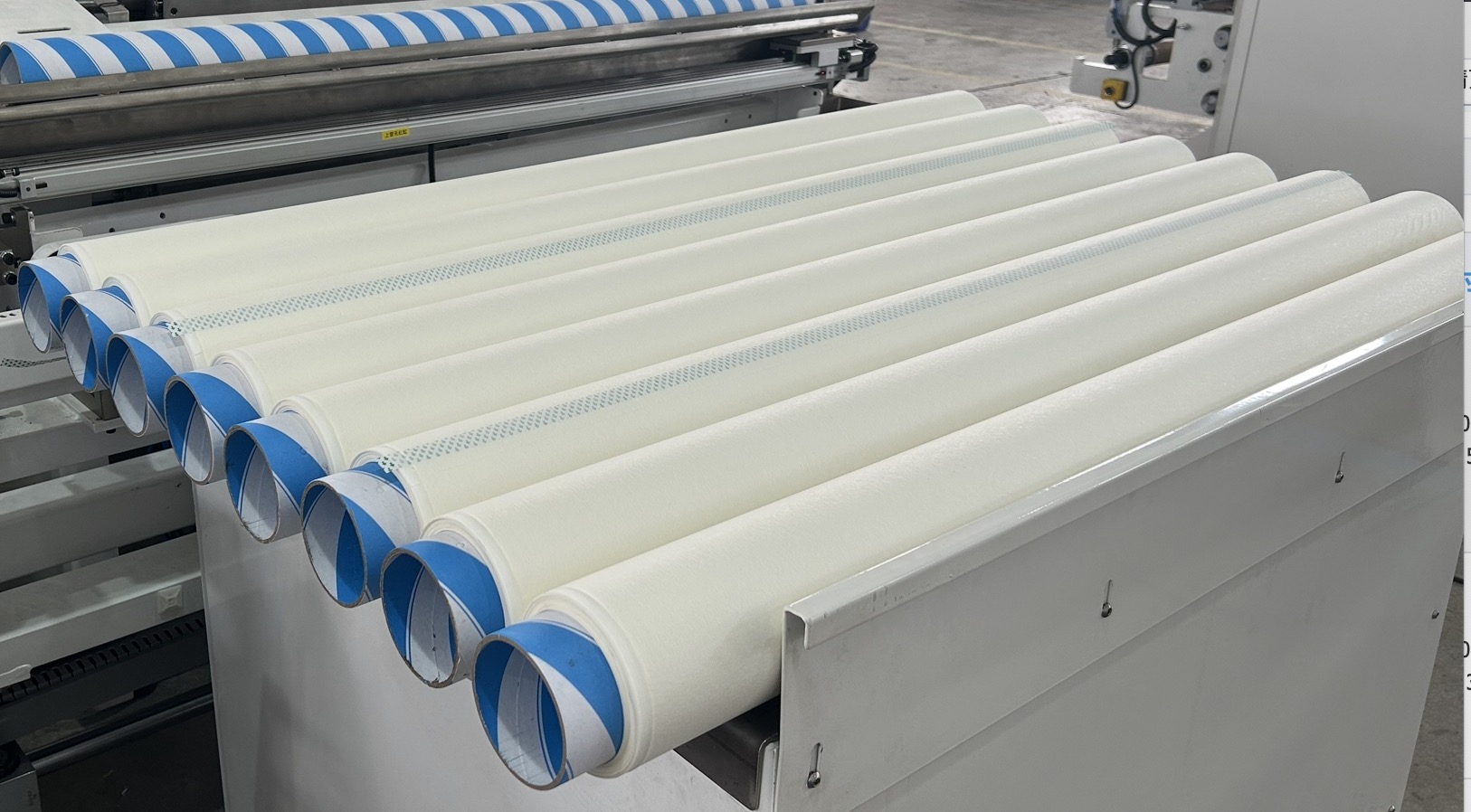

Masking Tape Rewinding Video
