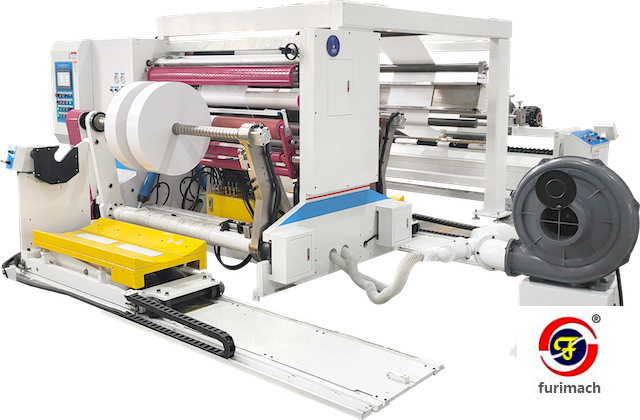

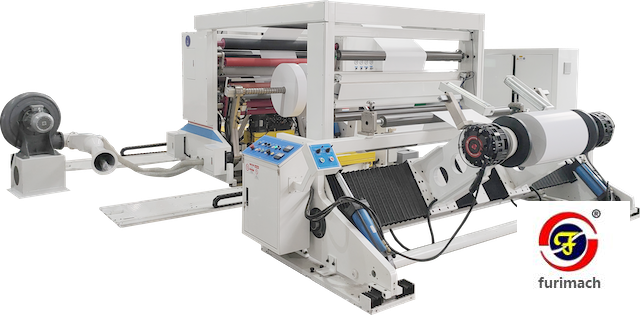

SLD-G Heavy Duty High-Speed Self-Adhesive Label Paper Slitting and Rewinding Machine

Feature

1. The drive unit adopts three-motor connective control with high speed, stable tension and nice-looking products.

2. Both unwind & rewind unit are equipped with tension detecting device with PLC auto constant tension control system.

3. Main drive uses rubber roller pressing type to avoid asynchronous issue between material and roller. And unwind & rewind tension is separated to make whole tension more stable.

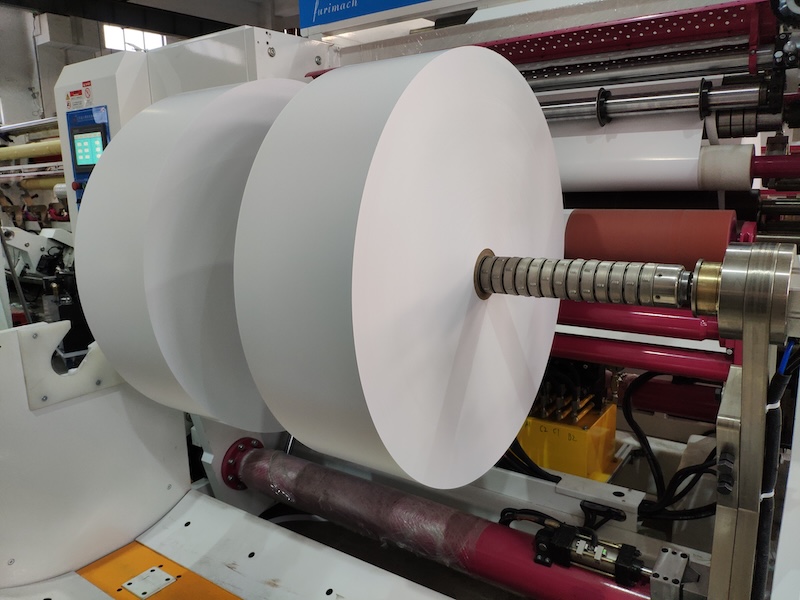

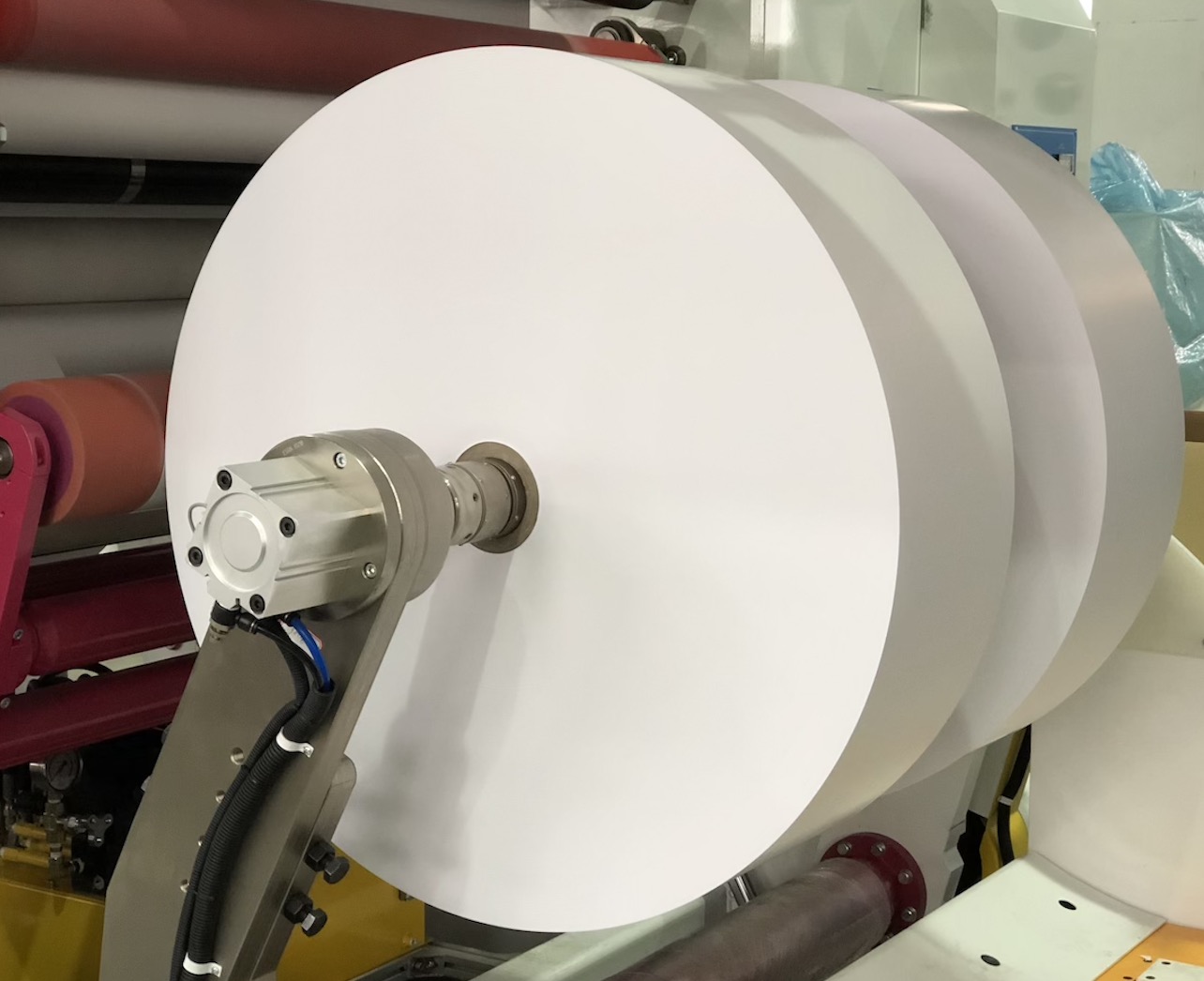

4. Rewind part uses differential winding shafts to make sure each roll tension is well controlled.

5. Edge waste treatment uses big power centrifugal fan device.

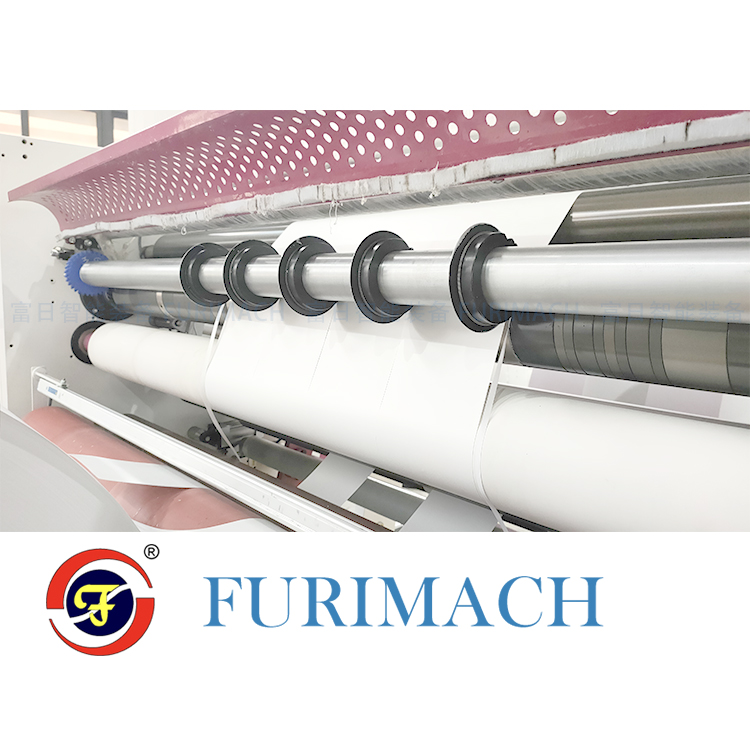

6. Slitting part uses shear blades (side pick-up type) for easy change and arrangement of bottom blade and spacers when slitting different sizes.

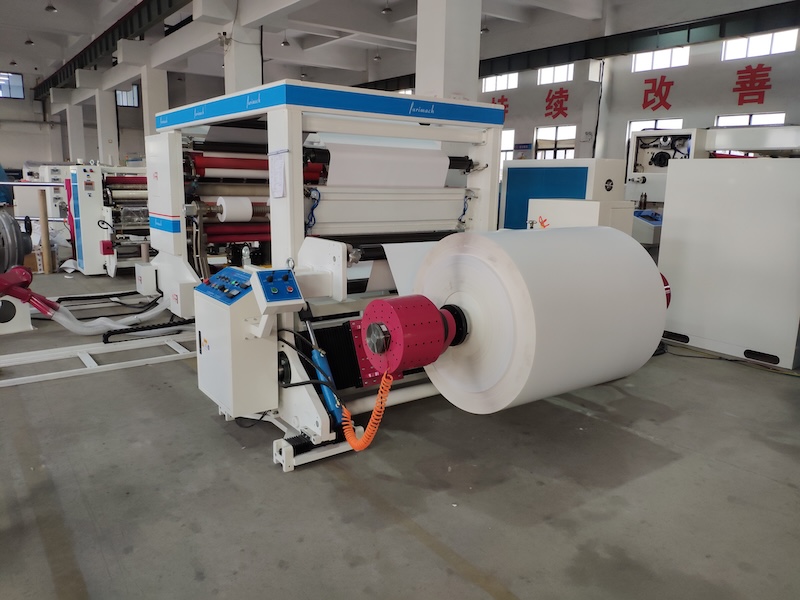

7. Unwind unit has automatic web guide control system, for auto correction of ununiform jumbo roll and reduce material waste.

8. Unwind system adopts connective type shaft-less unwidner stand, left and right movement manually control.

Optional Items

1. Finished roll unloading trolley

2. Splice table: with air cylinder fixing device, for fast connecting web and save labor’s time.

Technical Parameters

Machine Working Video
