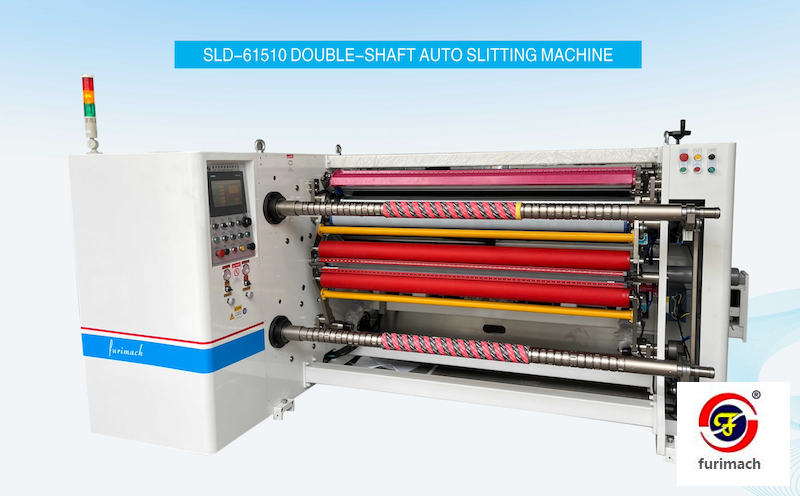

Machine Feature
-
3-motor connective control system: Ensures smooth and synchronized operation.
-
Rewinder shaft options: Equipped with both air shaft or differential shaft to suit different applications, center winding control mode.
-
Unwind Italy RE brake control: Provides precise tension control during unwinding process.
-
Siemens PLC control system: Delivers reliable and efficient machine control.
-
10” human-machine interface: To set parameters such as tension, taper, length, speed, etc.
-
Automatic tension control system: Ensures consistent rewinding quality.
-
Semi-automatic blade setting system: Enables quick and accurate blade arrangement.
Optional Features:
-
Finished reel unloader: Helps heavy finished rolls unloading from the winding shafts.
-
Laminating unit: Adds versatility for laminating applications.
-
Razor blade slitting tool: Ideal for various slitting tasks.
-
Rewind press roller: Enhances rewinding quality and stability.
Main Technical Parameters
| Machine width | 1.3M/1.6M |
| Min. slitting width | 30mm |
| Max. unwind diameter | 1000mm |
| Max. rewind diameter | 600mm |
| Working. speed | 300M/Min |
| Paper core I.D. | 3 "/6 " |
| Power source | 380V 50HZ 3P |
| Air source | 0.6 MPa |
