Tungsten Steel Circular Blade for Multi-shaft Log Roll Slitting Machine

You are here: Home » Products » Spare Parts » Blade » Tungsten Steel Circular Blade for Multi-shaft Log Roll Slitting Machine

Tungsten Steel Circular Blade for Multi-shaft Log Roll Slitting Machine


Availability:

Quantity:



Inquire Add to Basket

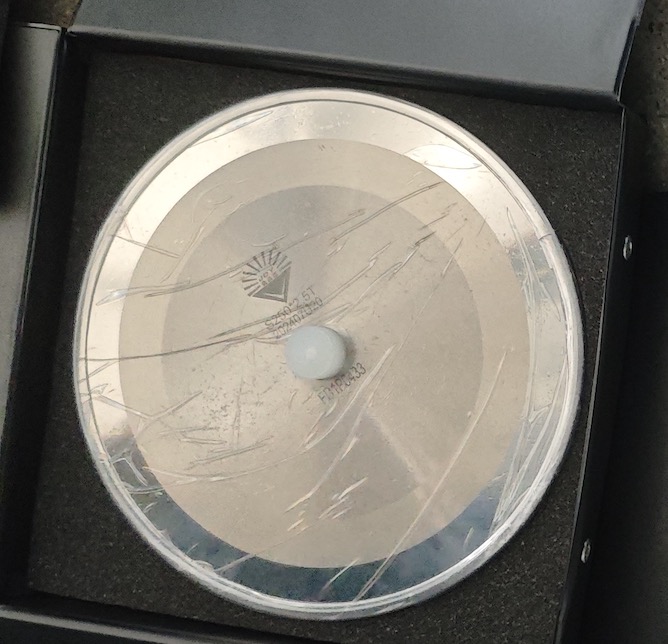

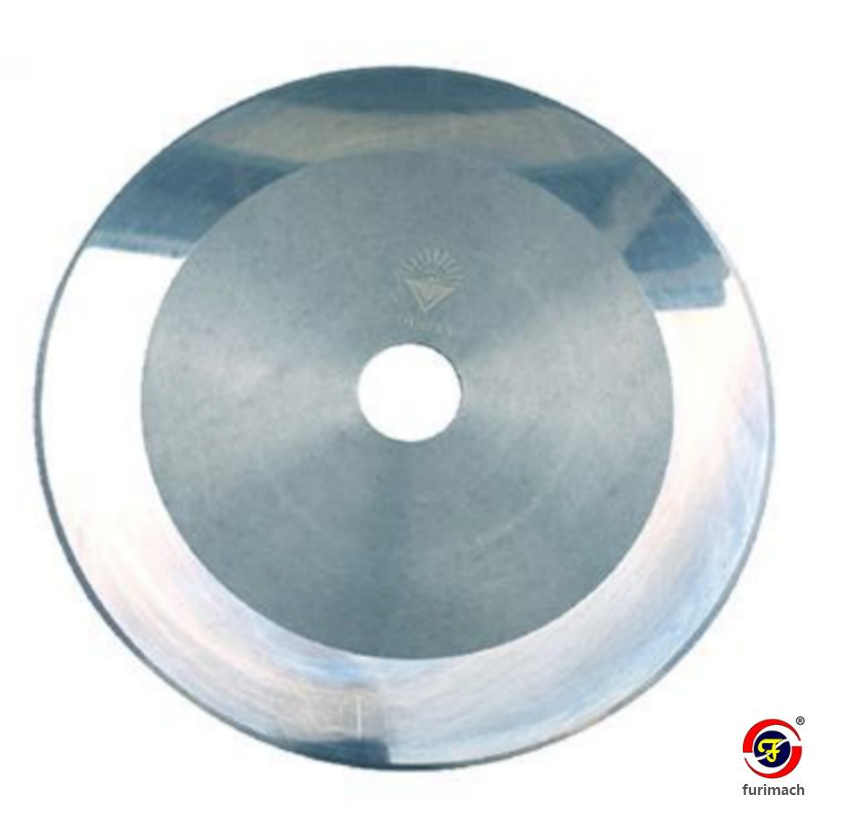

Special tungsten steel circular knife for multi-shaft log roll cutting machine: widely used for slitting masking tape, double-sided tape, BOPP tape, pvc electrical tape, with high speed and high efficiency.

Model:
FD1P-16
Brand:
Furimach
Code:
82089000

Product Description

Specification	OD	ID	Thickness	Edge
18025.42.0	180	25.4	2.0	D/E, S/E
16025.42.0	180	25.4	2.0	D/E, S/E

Features: Sharp but low toughness, brittle, easy to break under impact (wrong angle will also cause breakage), excellent wear resistance, material is not easy to rust, high cost but long service life, not suitable for cutting hard materials.

Sharpening: Only diamond grinding wheel/disc can be used.

Parameter settings for tungsten steel blade:

Spindle speed: 500RPM

Circular knife speed: 0 (not rotating) -100RPM (Max. 100RPM)

[When the shaft speed exceeds 500RPM, the circular blade must be passive.

Because the tungsten steel blade is brittle, it is easy to break if it is not synchronized]

Three-stage speed setting for tungsten steel blade:

Contact speed: 7-8

Cutting speed: do not exceed 5

Tube cutting speed: do not exceed 5
