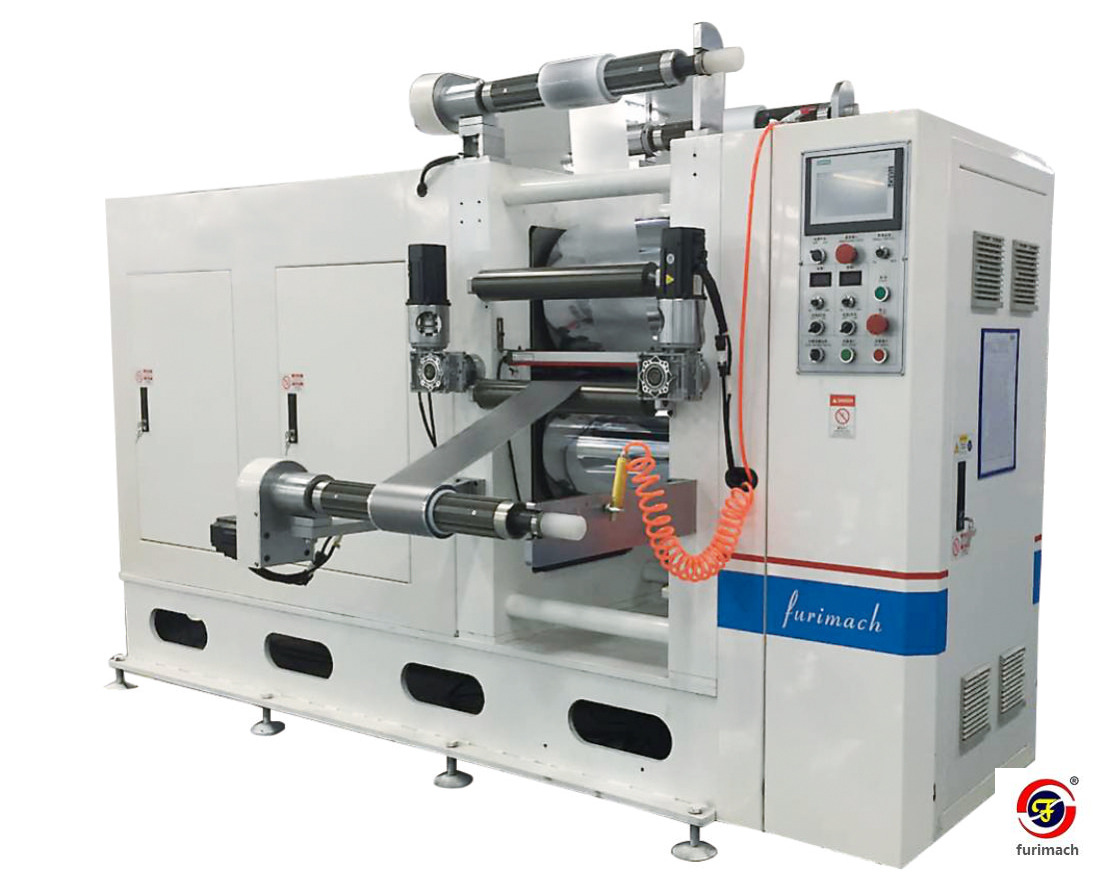

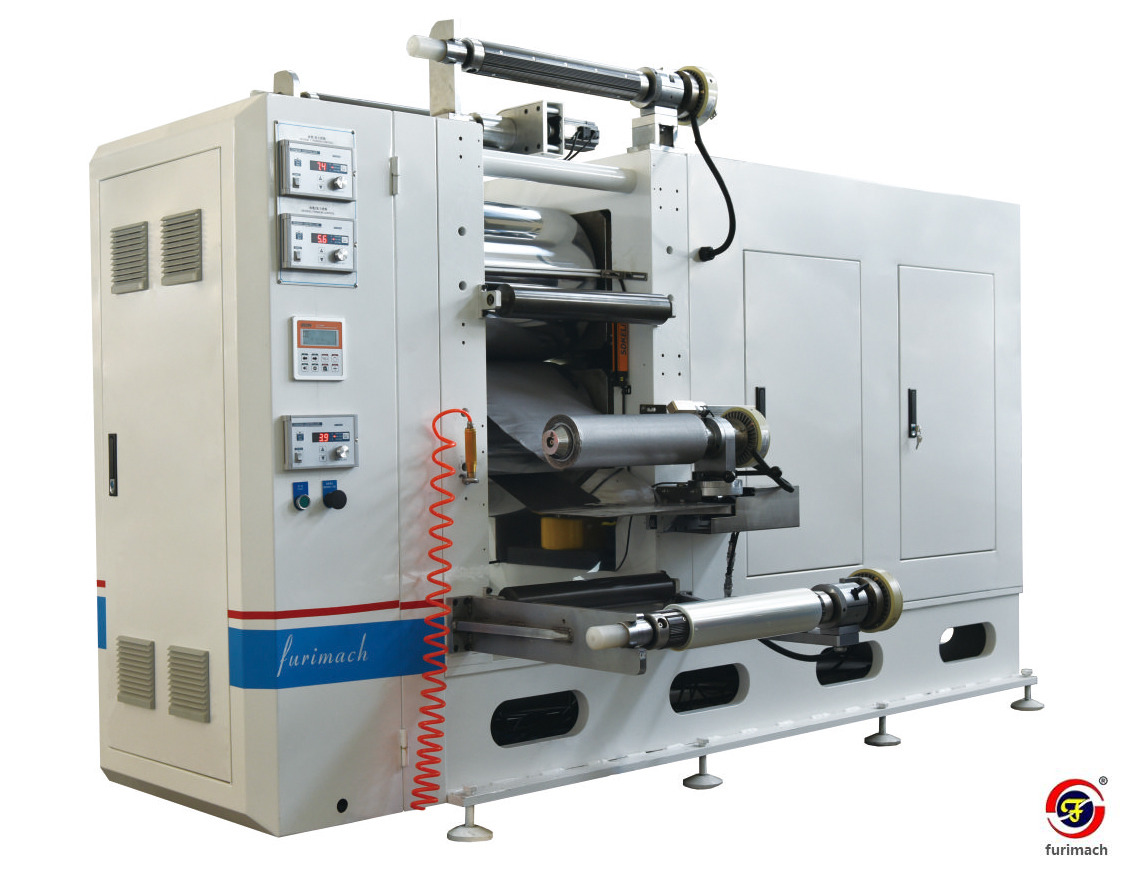

FRYY-500LQ
Furimach
84778000
Technical Parameters:
Calender precision | ±0.002mm |
Rolling line speed | 1~18M/min |
Roller width (customized) | 0-400m |
Roller cylindricity | ±0.001mm |
Roll surface roughness | Ra0.02um mirror surface |
Roller radial runout | ±0.001mm |
Chrome plating and polishing treatment of Roller surface | thickness of chrome single size 0.1mm |
Unwind/rewind core I.D. | 3” |
Max. unwind diameter | φ400MM |
Total power | 9KW*380V*50HZ |
Machine size | ≈3200mm*850mm*1500mm |
Feature:
Intelligent operation: It adopts human-computer interaction touch interface, which is easy to operate and clear.
Unwinding system: The unwinding system uses automatic tension control to save time.
Correction system: the unwind and rewind part is equipped with intelligent ultrasonic rectification actuator, automatic correction, avoid poor production due to product tilt during calendering.
Transmission system: Servo motor is used, and the speed of the upper and lower rollers can be accurately positioned.
Hydraulic system: The imported hydraulic cylinder is equipped with high-precision hydraulic station, and the pressure is more stable.
Meter system: Synchronized with the roller with a high-segment sensor.
