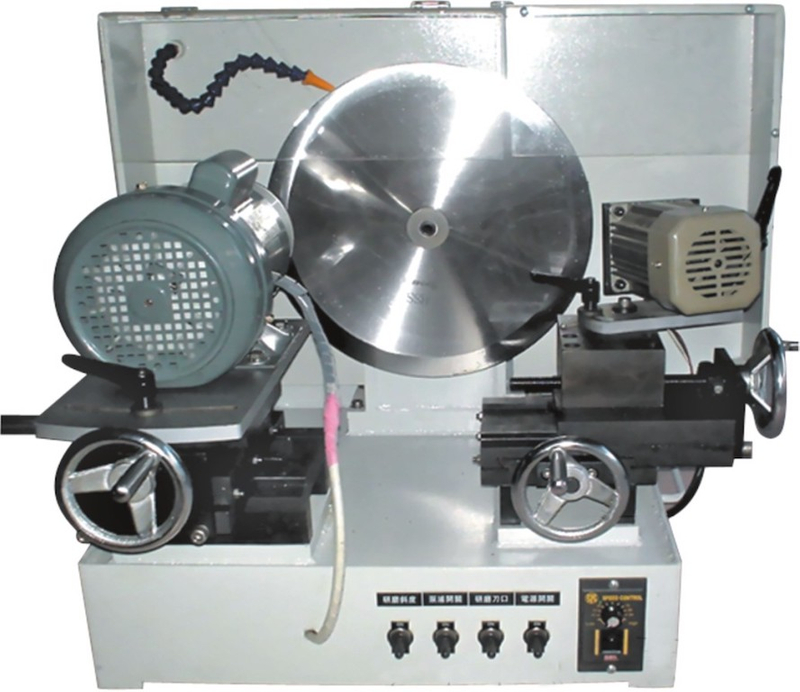

FR-508 Circular Blade Grinding Machine


Availability:

Quantity:



Inquire Add to Basket

This machine is designed for sharpening various high-speed steel and carbide circular blades used in roll cutting machine and slitter rewinder machines. The spindle and blade shaft runout tolerance is within 0.03mm, ensuring it meets the grinding requirements for all types of circular blades.

Model:
FR-508
Brand:
FURIMACH
Code:
84603900

Product Description

Main Technical Parameters:

Inner Diameter of Circular Blades	25.4mm (customizable)
Outer diameter of circular blade	Max. 450mm
Sharpening angle	0-30°
Voltage	220V 50HZ 1P
Large edge grinding	#80 grinding disc
Small edge grinding	#300 grinding disc
Disc mateiral	Cubic Boron Nitride (CBN) / Diamond (optional; diamond is mandatory for tungsten steel blades)
Cooling system	Water cooling

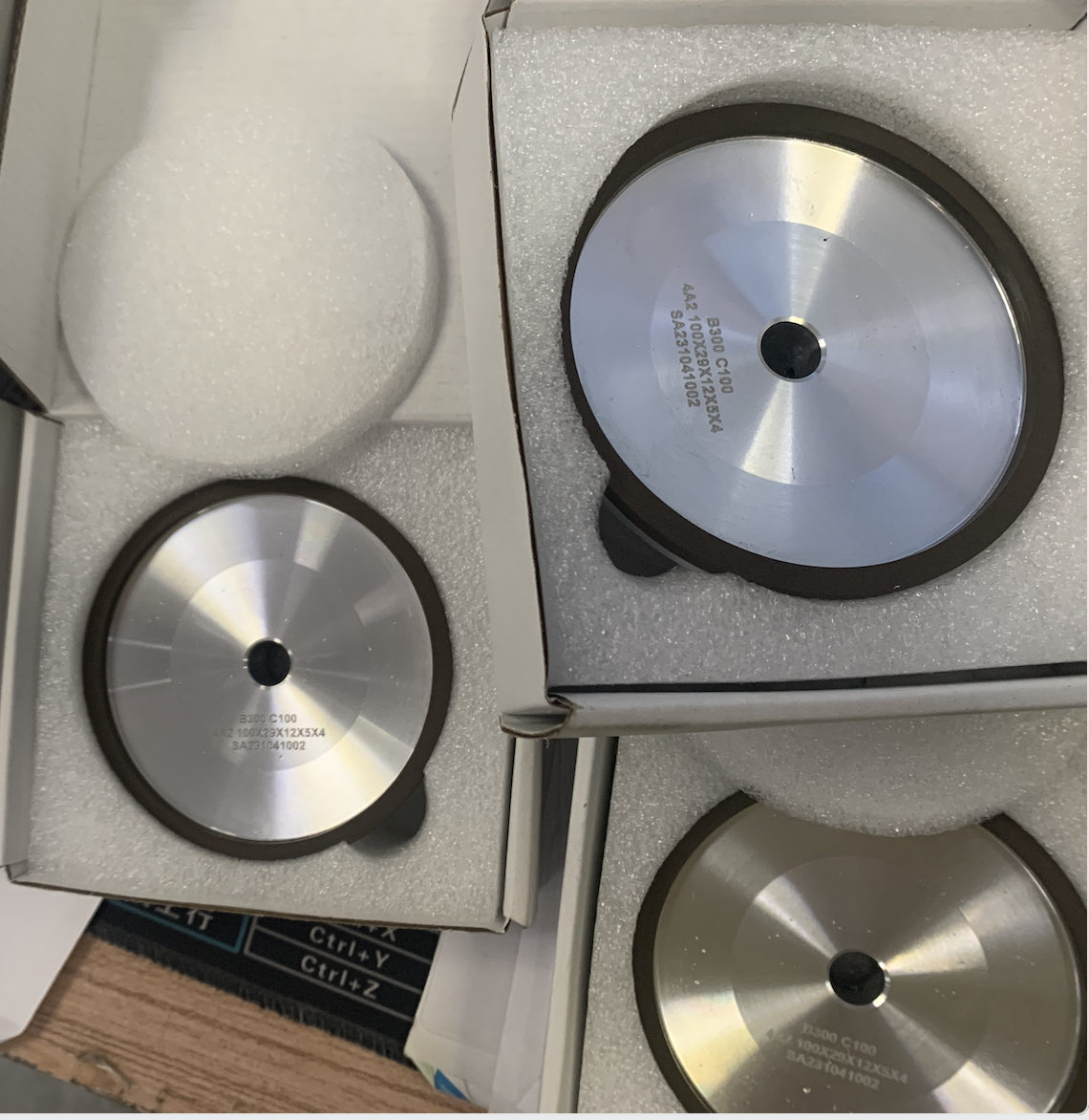

Cubic Boron Nitride Grinding Disc

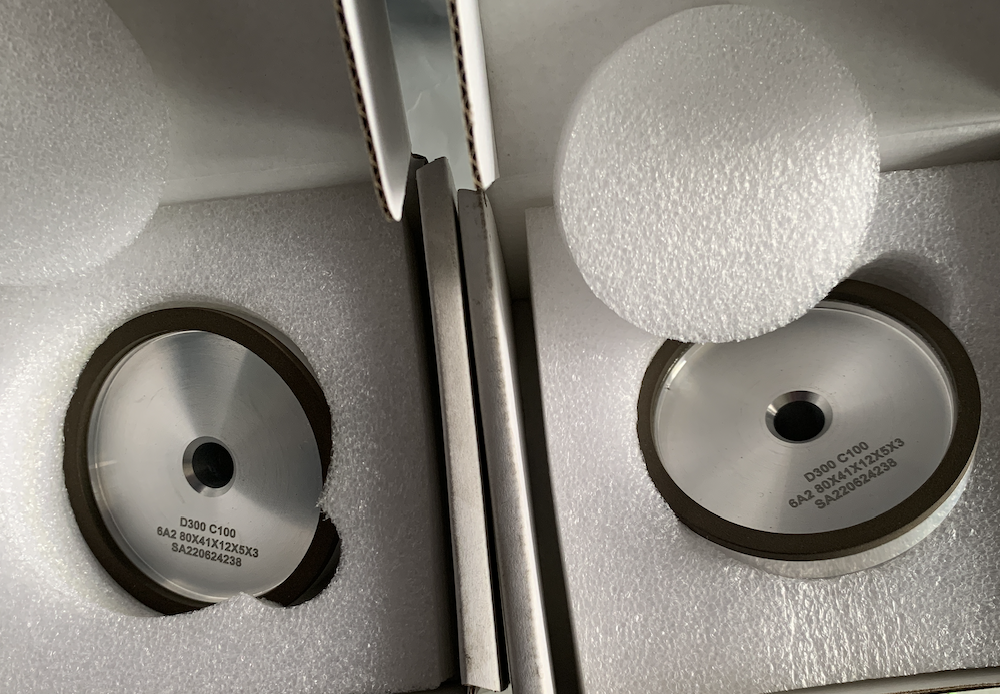

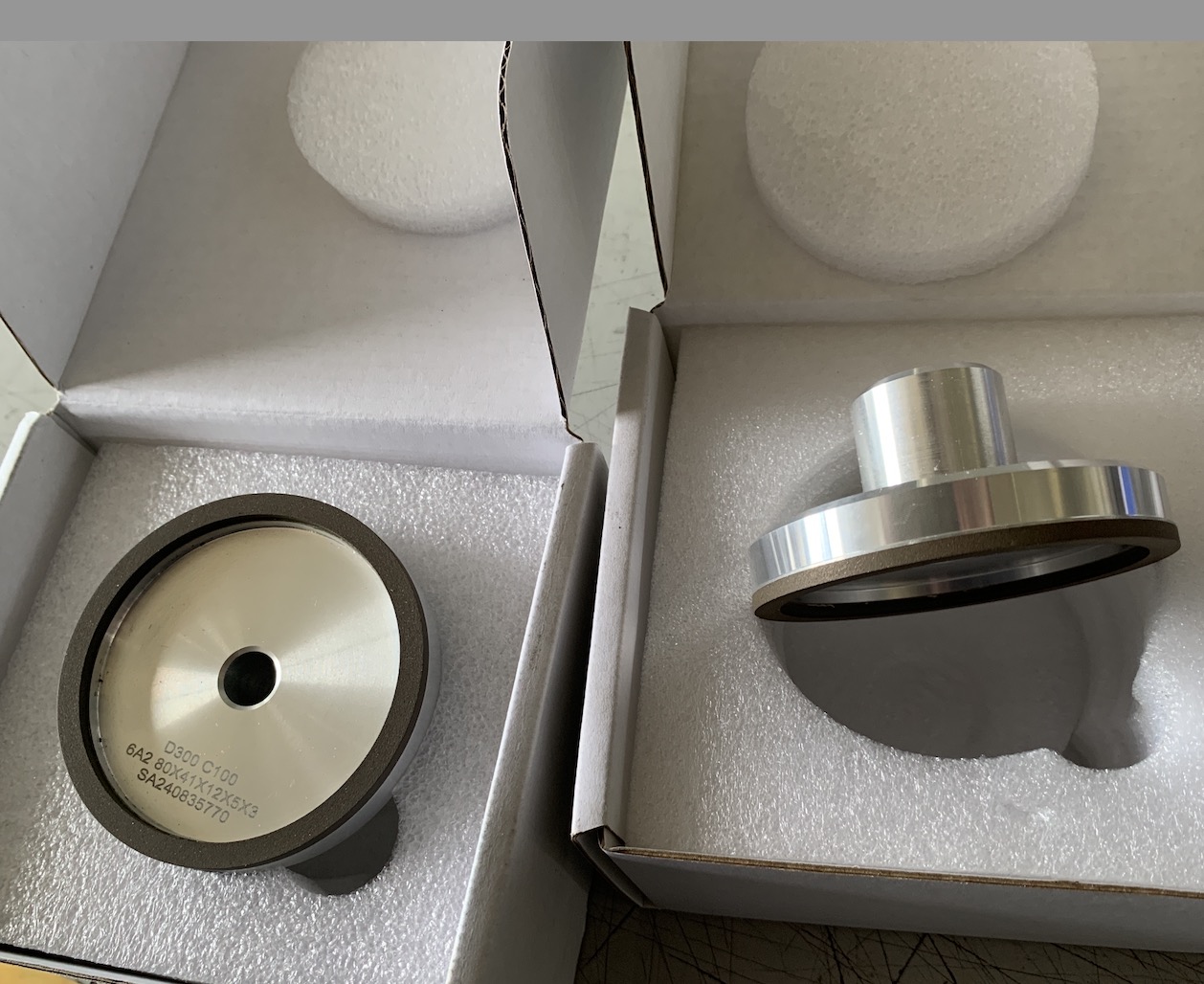

Diamond Type Grinding Disc (Optional)

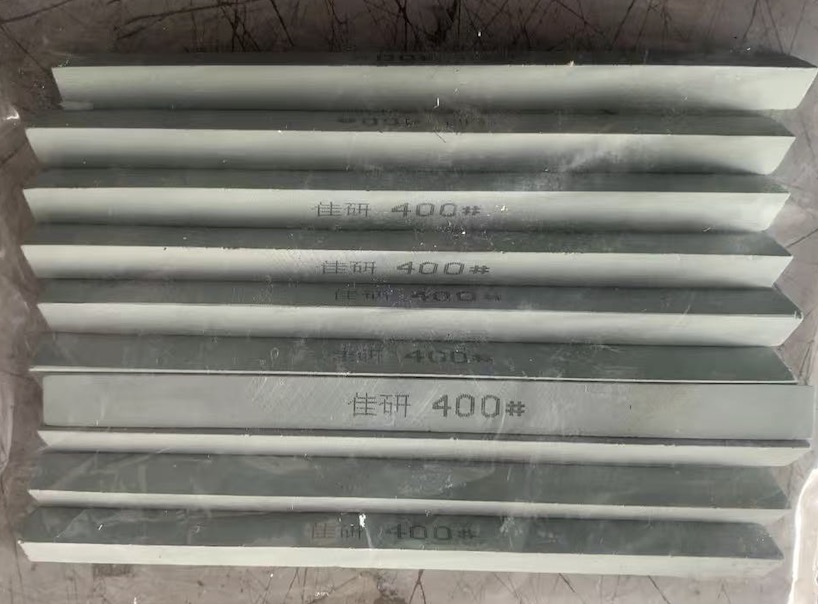

Grinding Stone (Optinal)

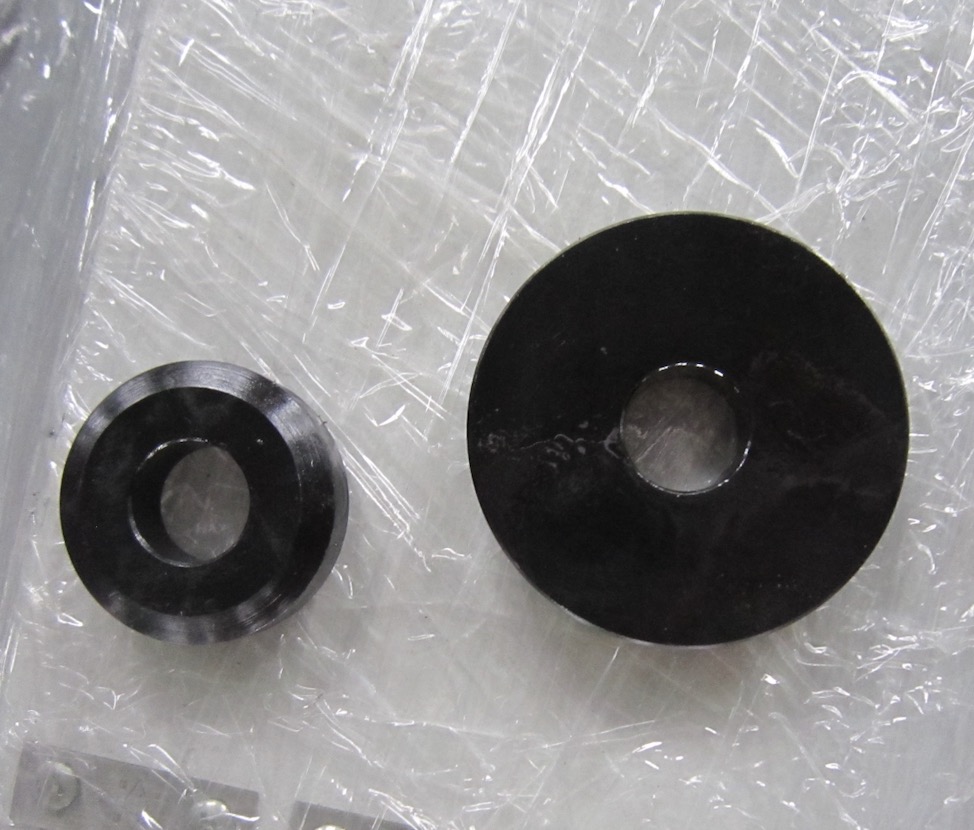

Customized Gasket (Optional)

How to Operate The Sharpening Machine Video:

FR-508 Circular Blade Grinding Machine
