DCF-2036TH
Furimach
84778000
Feature
1) User-Friendly Display
Features 12” touch screen for easy operation with clear graphics.
2) Independent Roller Control
Each roller is driven by servo motors, allowing smooth forward/reverse movement.
A precision tension control system keeps material tension extremely stable.
3) Precise Knife Control
Each knife holder uses an servo motor + planetary gear reducer for strong torque and smooth speed changes.
4) Stable Synchronization
PLC controller ensures high synchronization for stable machine performance.
5) Asynchronous Die-Cutting
Adjust spacing between cuts to save material and reduce costs.
6) Dual-System Option
Can operate as two separate machines (default in models with 10+ stations).

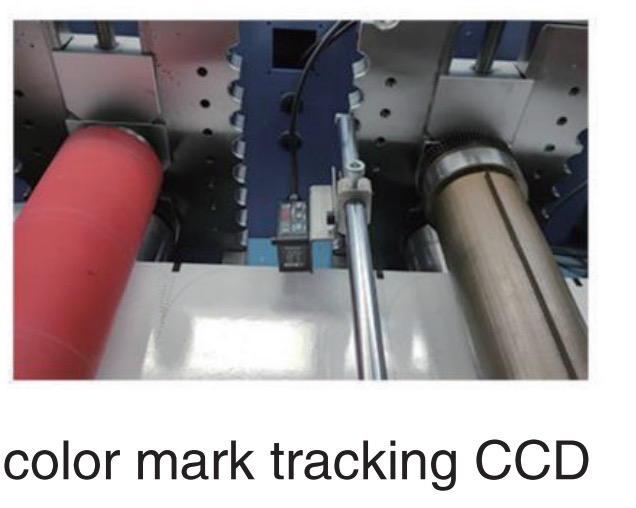

7) Color Mark Correction
Supports synchronous & asynchronous color mark adjustments for accurate positioning.
Options: Single mark, double mark, or mark + proximity switch.

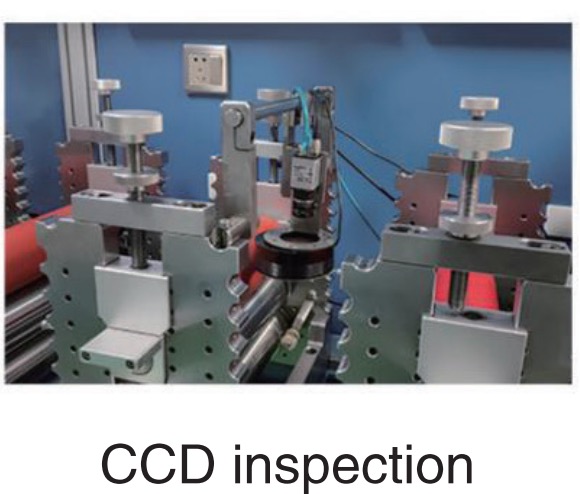

8) CCD Vision System (Optional)
Uses a CCD camera to check product size after each cut.
Displays OK/NG (good/bad) and auto-corrects if out of tolerance.
Saves size data for quality tracking.
9) Recipe Storage
Stores settings for different products, saving setup time and material waste.
Data can be transferred to a computer via network.
10) MESS System Integration
PLC data can be read by third-party MESS software (customer-provided).
