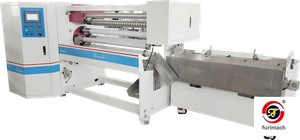

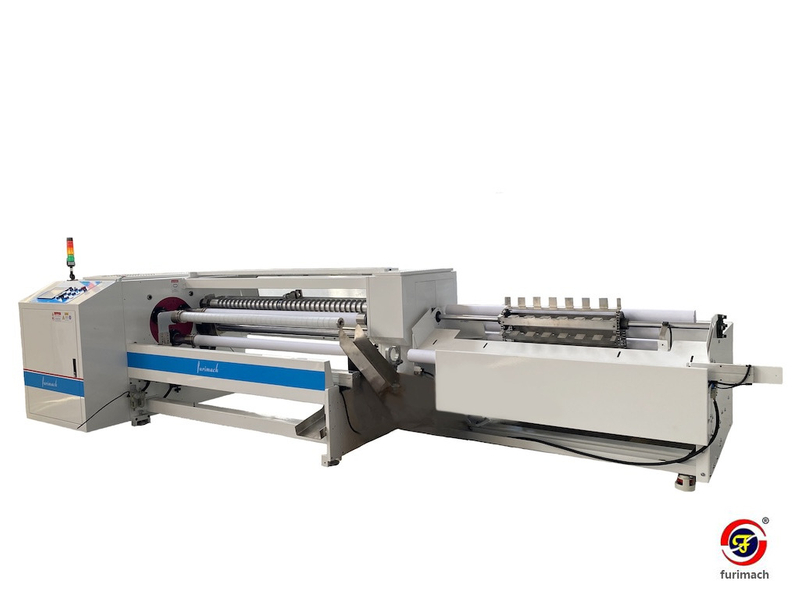

BPC-T2-13FH Three Shafts Automatic Cardboard Tube Cutting Machine


Availability:

Quantity:



Inquire Add to Basket

BPC-T2-13FH is primarily used for automated cutting of 3” cardboard tubes. This machine is a good choice for integration into an automatic BOPP tape production line. It supports a maximum working width of 1600mm, ensuring efficient high-volume processing.

Model:
BPC-T2-13FH
Brand:
FURIMACH
Code:
84393000

Product Description

Feature

1. Multi-blade cutting system–Enhances productivity with simultaneous precision cuts.

2. Fully automated process – Automates tube cutting, loading, and unloading for seamless operation.

3. Cam dvider controlled shaft exchange system – Ensures high precision and stability during shaft transitions.

4. Adjustable speed control–Allows customization of shaft and blade rotation speeds for optimal performance.

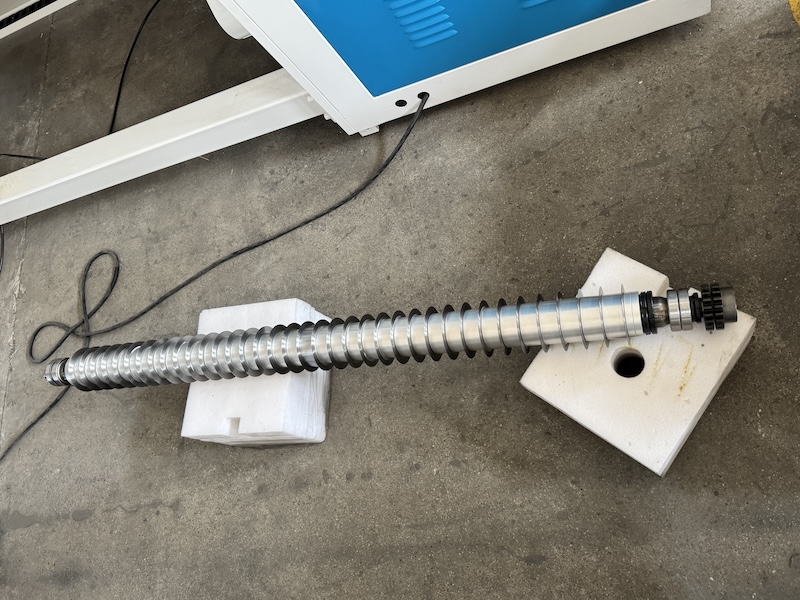

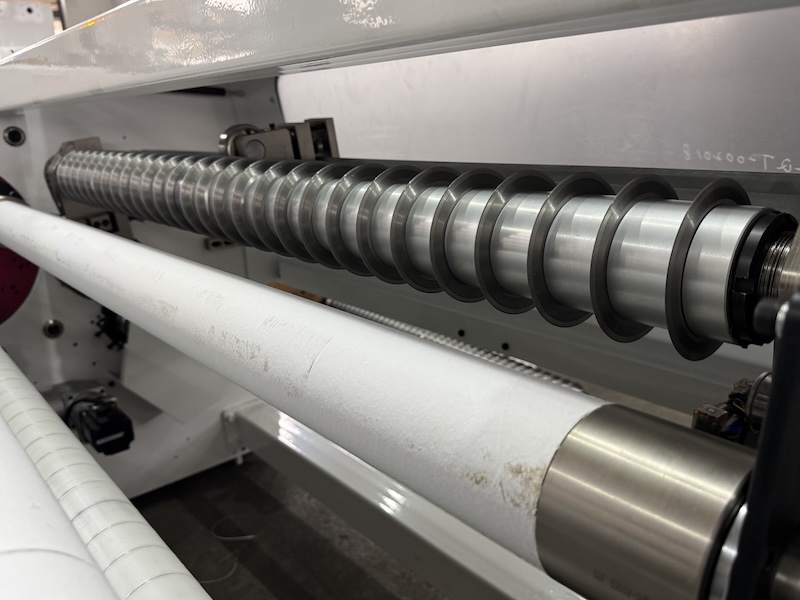

Multiple Round Knife Cutting System

When cutting different sizes/width, we recommend change whole shafts (assembly of the relative spacers and blades)

Main Technical Parameters

Machine width	1.3M/1.6M
Min. cutting width	36mm
I.D. Of paper tube	3”
Paper tube thickness	Max. 6mm
Machine voltage	380V 3P
Machine power	7.5KW
Cutting knife	Round knife
PLC control system	Japan Mitsubishi
Machine dimension	L4.9W2H1.22M
