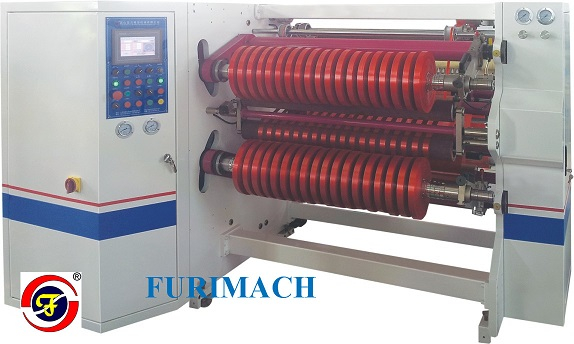

FR-217 Double-shaft Center Surface Slitting Rewinding Machine

Application
Suitable for paper, film,such as PET, release film, release paper and other non-adhesive materials.

Quantity:
  • FR-217
  • FURIMACH
  • 84411000
Feature
1. The motor unit adopts two-motor connective control with high speed, stable tension and nice looking products.
2. It adopts roll pressing type driving device to prevent slip between material and main driving roll so that tension is more stable.
3. The rewind press roller system adopts combined device of discontinuous movement and air pressure auxiliary control to ensure minimum distance between press roller and products, and also to ensure different materials converting.
4. The rewind system is equipped with air shaft.
5. Waste collection system adopts blowing type
6. Slitting blade can use air blade, shear blade, razor blade for different material slitting.
7. The unwind system has EPC/LPC device, hydraulic type jumbo roll uplifting device and material receiving platform.
8. Unwind system adopts connected structure with shaft to reduce floor area.
Optional:
Jumbo roll auxiliary uplifting device: hydraulic type to save labor cost & improve efficiency.
Finished roll auxiliary unloading:equipped with fast unloading device to reduce effort.
Main Technical Parameters
Max. rewind diameter 450mm Machine width 1.0M/1.3M/1.6M
Max.unwind diameter 800mm Paper core I.D. 3 "/6"
Min. slitting width 20mm Max. machinery speed 200M/Min
Air source 0.6 MPa Power source 380V 3P 50HZ
