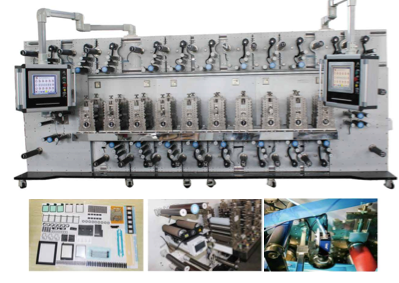

DCR-1628S Sixteen Stations Rotary Die Cutting Machine

DCR-1628S is suitable for multi-station set position die cutting, laminating. This machine is applicable for adhesive tape, protection film, OCA, foam, mesh cloth, aluminum and copper foil, back light module, flexible circuit board, medicine, automobile, aerospace and hygiene field, etc.
Quantity:
  • DCR-1628S

  • FURIMACH

1The main operation interface adopts touch panel, with picture display for easy operation. Keyboard, mouse and hand touch are all available.
2It can save more than 500 kinds of SOP data, improve standard level, and reduce dependence on operator’s experience and reduce more than 60% material waste.
3All unwind & rewind shafts are driven separately by servo motors. The unwinding, rewinding, straight & reverse rotation are more flexible and controlled by high sensitivity tension sensor shaft’s feedback to ensure smooth running.
4.
All cutter holder’s movements are controlled by German Lenz servo motor with enough torsion, stable acceleration and deceleration, precision can be ±0.075mm.
5.CCD testing system can test position precision all the time during the whole process and then feedback to PLC which send orders to servo motors to adjust position.
